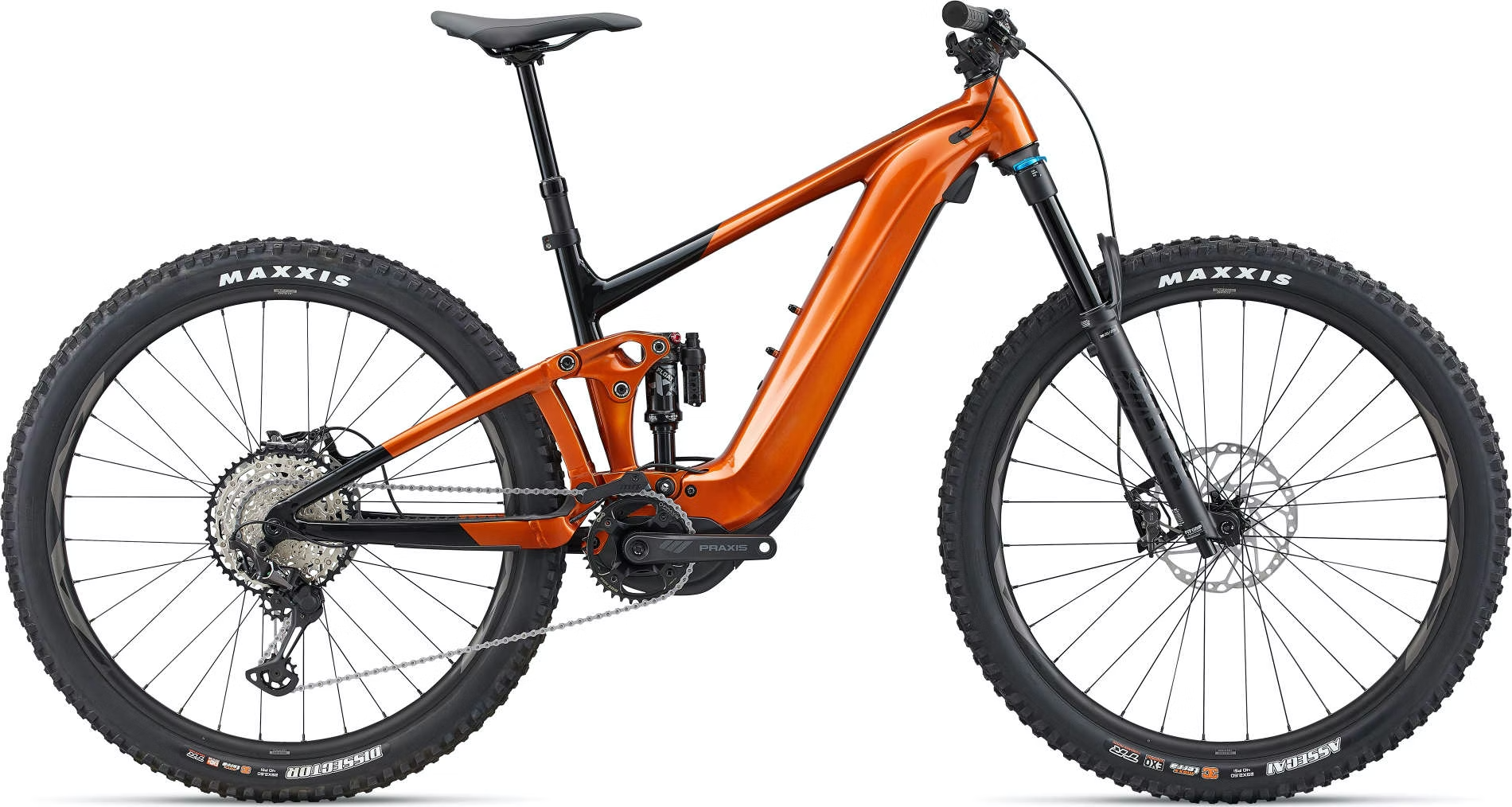

Giant Trance X E+ Pro 29 1

Motor
Giant SyncDrive Pro, 80Nm
ControllerGiant RideControl Ergo
Display N/A
Batter yGiant EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible

Frame
ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 140mm Maestro Suspension System, ‘Boost’ 148x12QR, ISS, Giant EnergyPak Plus Range Extender Compatible
ForkFox 36 Float Performance Elite, 150mm travel, 44mm offset, FIT4, 3Pos-Adj. Damper, Boost 110x15QR, e-optimized
ShockFox Float DPX2 Performance, EVOL Large Volume sleeve, 3-Pos Lever, 185×52.5mm Trunnion mount
HandlebarGiant Contact 35 Trail, 35x780mm
StemGiant Contact SL 35
SeatpostGiant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
SaddleGiant Romero Trail
PedalsN/A
ShiftersShimano Deore XT, 12-speed I-spec EV
Front DerailleurMRP 1X custom “V3″ co-moulded TR chain guide
Rear DerailleurShimano Deore XTR, 12-Speed, Shadow+
BrakesShimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 203mm
Brake LeversShimano Deore XT, BL-M8100 I-spec EV
CassetteShimano CS-M7100-12, 10-51T, 12-Speed
ChainKMC e.12 Turbo, EcoProteq, e-bike optimised
CranksetPraxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)
Bottom BracketN/A
RimsGiant e-TR1 29, Tubeless ready, 30mm inner width
HubsGiant e-TR1 [F] 110×15 [R] 148x12mm Thru-axle
SpokesGiant e-TR1
TyresMaxxis Assegai 29×2.6″ foldable, Tubeless, EXO, 3c MaxxTerra [F]Maxxis Dissector 29×2.6” Foldable, Tubeless, EXO+, 120tpi 3C Compound [R]
ExtrasGiant EnergyPak Smart 6A charger Tubeless kit (liquid, valves, levers, manual, tool), Inner tube supplied, Giant EnergyPak Plus range extender compatible
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
