Ibis Ripmo Af Gx Bike 2024
Original price was: $2,550.00.$1,841.00Current price is: $1,841.00.
‘

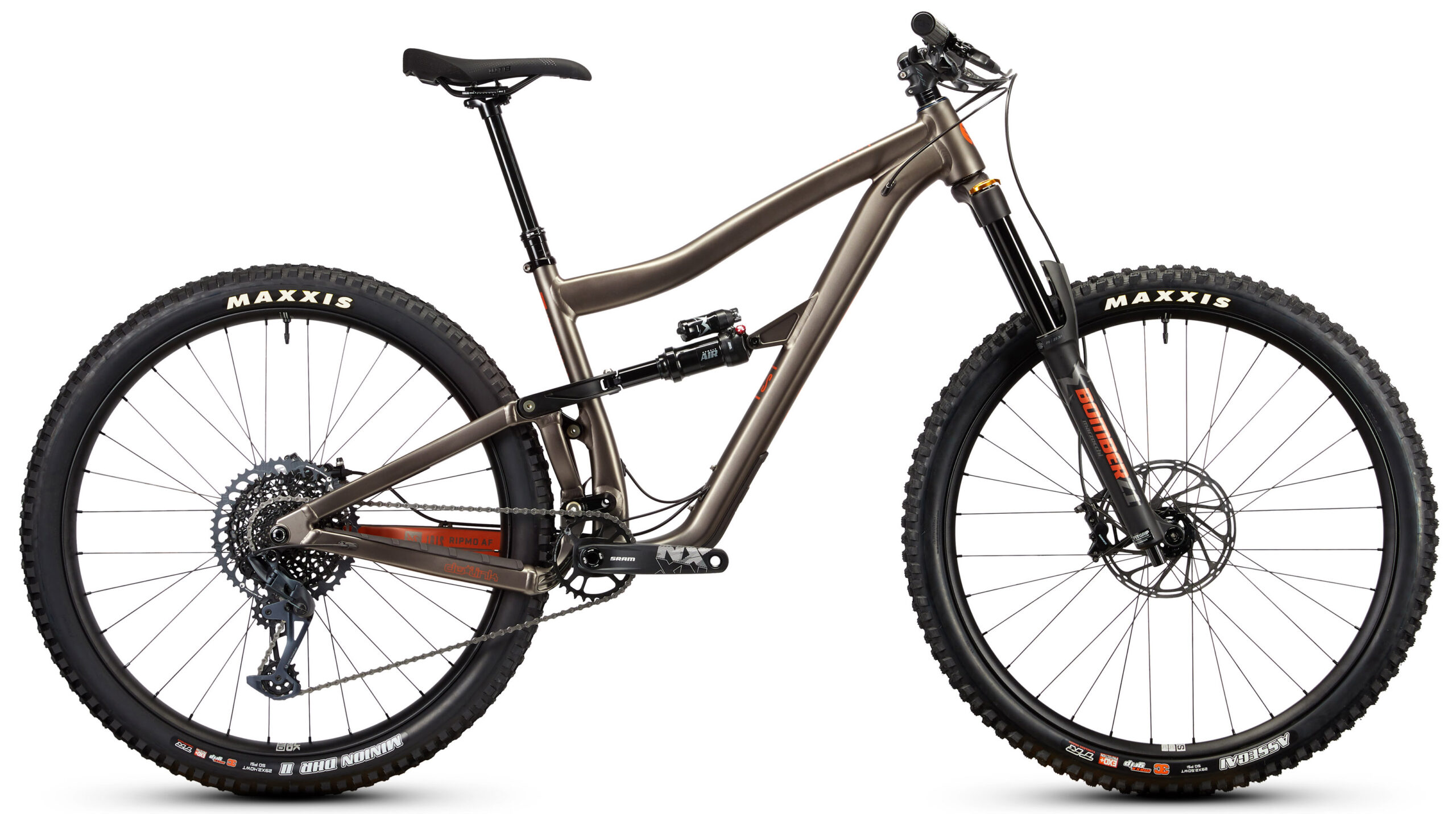

Ibis Ripmo AF GX Bike
Award-Winning Performance
Mountain biking is all about having fun out on the trails. With an all-mountain bike, you’ll be able to conquer the steepest descents and still climb back up to the top to do it all over again. The Ibis Ripmo AF NGX Bike is powered by DW-Link suspension for an unparalleled combination of climbing efficiency and downhill performance. The aluminum frame uses 147mm of travel on the rear and 160mm of travel on the front. The frame also features modern geometry with a steep, 76° seat tube angle and a rangy but not stratospheric reach, wide tire clearance for up to 2.6″ tires, long dropper post compatibility, and a removable ISCG05 mount.
The GX version of the Ibis Ripmo AF comes with a SRAM NX/GX Eagle drivetrain. This includes a cassette that has a hill-crushing 10-52T gear range that makes climbing and pedaling through rough terrain a breeze. SRAM G2 R 4-piston hydraulic disc brakes provide excellent stopping power so you can descend with confidence. Blackbird Send Alloy rims are paired with Maxxis Assegai and DHR II tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the KS Rage-i Dropper, you’ll be able to quickly lift and lower your saddle with the press of a lever.
Features
- Aluminum frame with a DW-Link suspension platform, long travel, removable ISCG05 mounts, and clearance for up to 2.6″ tires
- SRAM NX/GX Eagle drivetrain provides crisp and reliable shifting
- SRAM G2 R 4-piston hydraulic disc brakes offer confidence-inspiring stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- KS Rage-i Dropper Post quickly lifts and lowers your saddle with the press of a lever
| Frame | Aluminum |
|---|---|
| Fork | Marzocchi Bomber Z1 Coil, 160mm Travel, 44mm Offset |
| Rear Shock | Marzocchi Bomber Air, 210 x 55mm |
| Headset | Cane Creek 40 ZS44/ZS56 |
| Shifters | SRAM NX Eagle, 12-Speed |
| Front Derailleur | Nah |
| Rear Derailleur | SRAM GX Eagle, 12-Speed |
| Crankset | SRAM NX Eagle DUB, 30T Alloy Ring |
| Bottom Bracket | SRAM DUB BSA |
| Chain | SRAM NX Eagle |
| Cassette | SRAM XG-1275 10-52T, 12-Speed |
| Brakes | SRAM G2 R 4-Piston, 200/180mm |
| Wheelset | Blackbird Send Alloy (Send 1 F, Send 2 R), Ibis Hubs |
| Tires | Maxxis Assegai 29×2.4″ DC, EXO+, TR, WT / DHR II 29×2.4″ DC, EXO+, TR, WT |
| Handlebar | Ibis 780mm Alloy, 31.8mm |
| Stem | Ibis 31.8mm |
| Grips/Bar Tape | Lizard Skin Charger |
| Seatpost | KS Rage-i Dropper, S:125, M:150, L/XL:170mm |
| Seatclamp | Single-Bolt |
| Saddle | WTB Silverado, 142mm |
| Intended Use | Enduro, All-Mountain, Trail |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 368 | 380 | 432 | 483 |
| B: Effective Top Tube | 573 | 603 | 632 | 655 |
| C: Stack | 613 | 620 | 629 | 642 |
| D: Reach | 431 | 458 | 475 | 495 |
| E: BB Height | 341 | 341 | 341 | 341 |
| F: BB Drop | 30 | 30 | 30 | 30 |
| G: Head Tube Length | 90 | 100 | 110 | 120 |
| H: Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| I: Seat Tube Angle | 77 ° | 76 ° | 76 ° | 76 ° |
| J: Standover Height | 705 | 750 | 750 | 760 |
| K: Chainstay Length | 435 | 435 | 435 | 435 |
| L: Wheelbase | 1185 | 1216 | 1237 | 1262 |
| Crank Arm Length | 170 mm | 170 mm | 175 mm | 175 mm |
| Stem Length | 40 mm | 40 mm | 50 mm | 50 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’0″ – 5’5″ 152 – 165 cm |
5’4″ – 5’9″ 163 – 175 cm |
5’8″ – 6’1″ 173 – 185 cm |
6’0″ – 6’6″ 183 – 198 cm |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 14.5 | 15.0 | 17.0 | 19.0 |
| B: Effective Top Tube | 22.6 | 23.7 | 24.9 | 25.8 |
| C: Stack | 24.1 | 24.4 | 24.8 | 25.3 |
| D: Reach | 17.0 | 18.0 | 18.7 | 19.5 |
| E: BB Height | 13.4 | 13.4 | 13.4 | 13.4 |
| F: BB Drop | 1.2 | 1.2 | 1.2 | 1.2 |
| G: Head Tube Length | 3.5 | 3.9 | 4.3 | 4.7 |
| H: Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| I: Seat Tube Angle | 77.0 ° | 76.0 ° | 76.0 ° | 76.0 ° |
| J: Standover Height | 27.8 | 29.5 | 29.5 | 29.9 |
| K: Chainstay Length | 17.1 | 17.1 | 17.1 | 17.1 |
| L: Wheelbase | 46.7 | 47.9 | 48.7 | 49.7 |
| Crank Arm Length | 170 mm | 170 mm | 175 mm | 175 mm |
| Stem Length | 40 mm | 40 mm | 50 mm | 50 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’0″ – 5’5″ 152 – 165 cm |
5’4″ – 5’9″ 163 – 175 cm |
5’8″ – 6’1″ 173 – 185 cm |
6’0″ – 6’6″ 183 – 198 cm |
