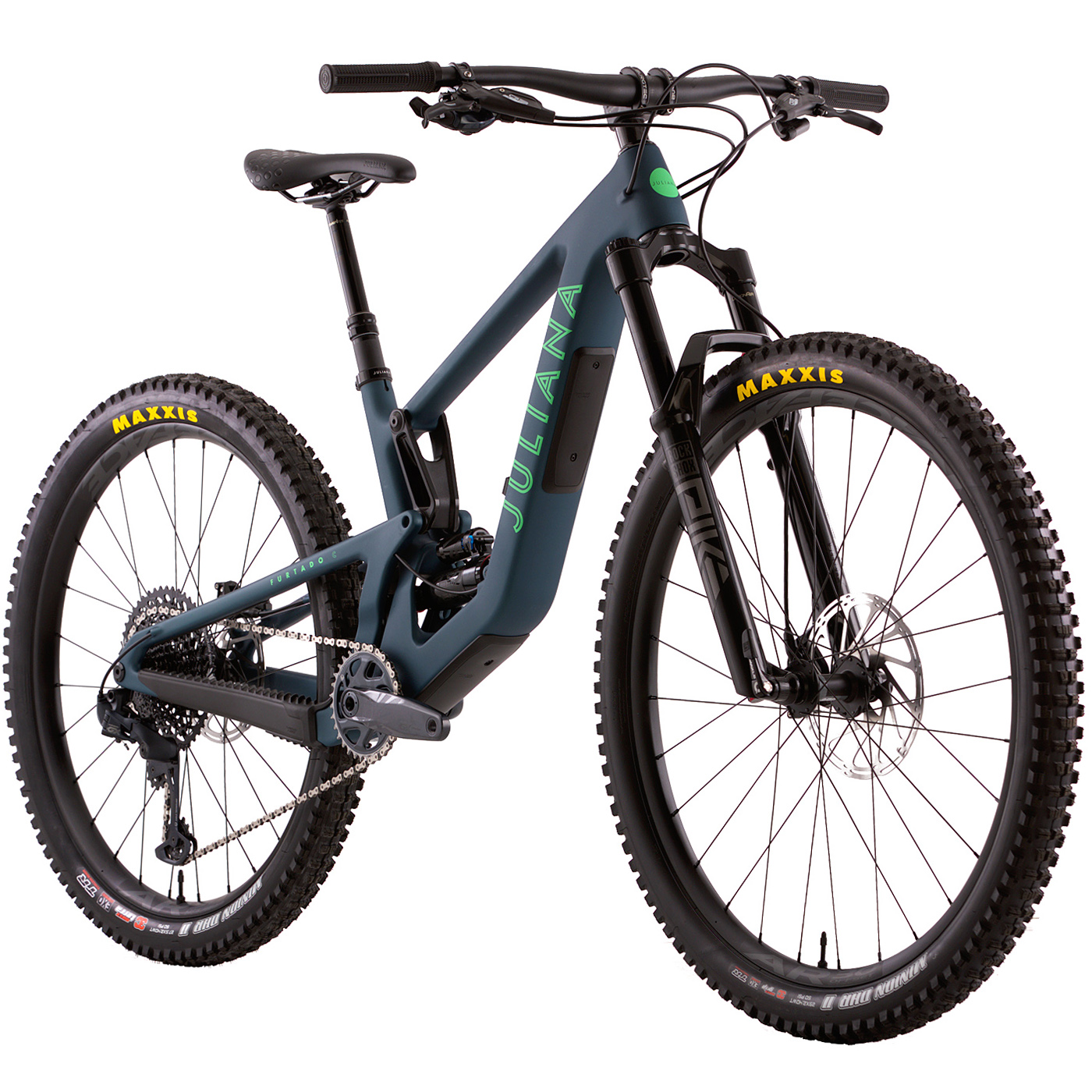

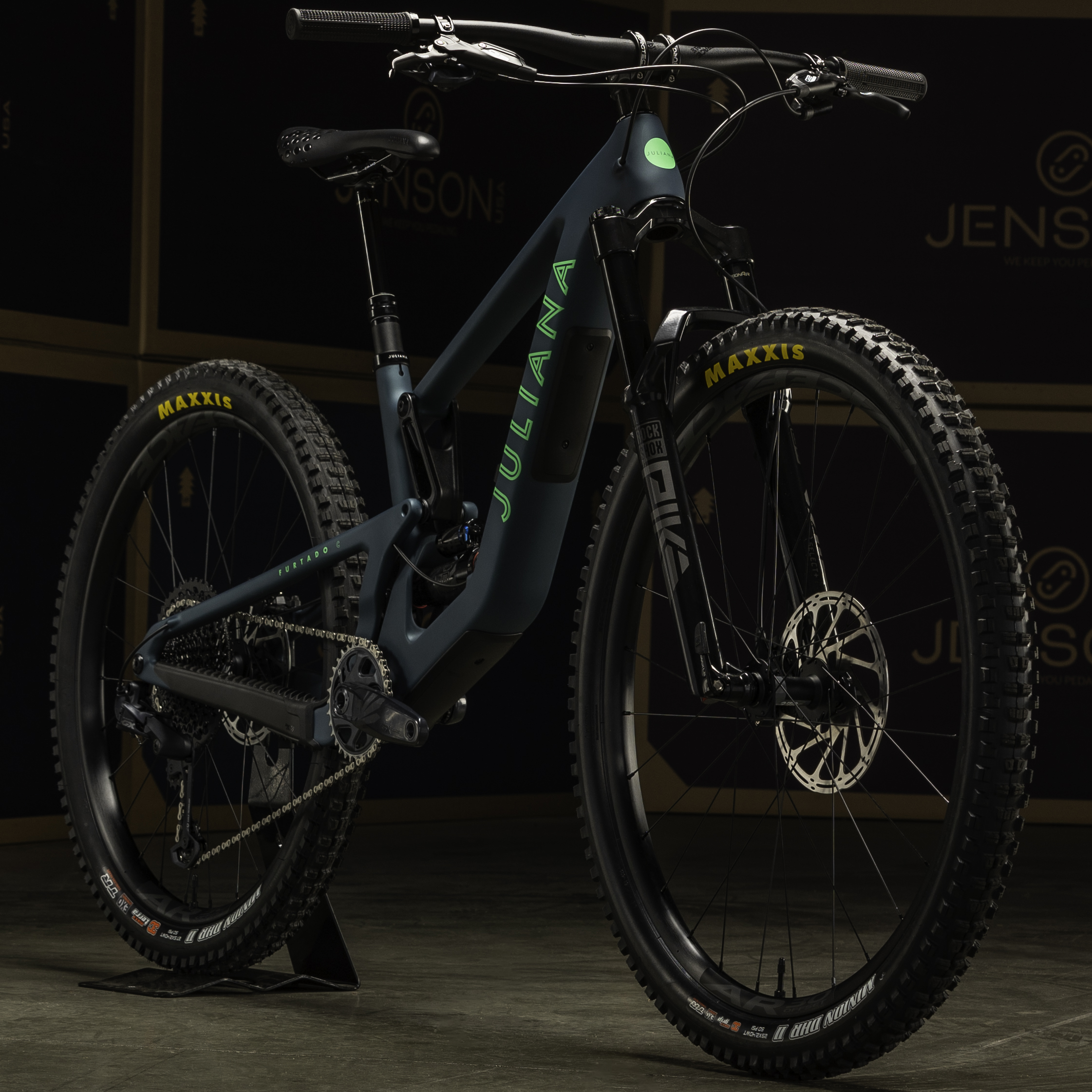

Juliana Furtado 5 C S Bike
Original price was: $5,525.00.$2,453.00Current price is: $2,453.00.
‘
Juliana Furtado 5 C S Bike
Inject some fun into every trail
The Juliana Furtado 5 C S turns every trail into a party. This mixed wheel size shredder blends the playful, nimble feel of a 27.5” rear wheel, with the rollover capability and trail-absorbing qualities of a 29” front wheel. The lightweight and durable C carbon frame utilizes decades of engineering experience to provide all the performance you need, and nothing you don’t. The versatile Furtado 5 is compatible with a 140mm fork, and features Juliana’s famous VPP™ suspension platform, with 130mm of rear travel that’s tuned to soak up everything the descent throws your way—and the efficiency of a mountain goat to climb the other side.
The Furtado 5 C S Bike is equipped with high-performance, reliable components that let you rail the corners with confidence. The mid-level 12-speed SRAM GX Eagle drivetrain offers precise shifting and a wide gear range. To keep you rolling, RaceFace AR Offset 30 rims are laced to durable DT Swiss 370 hubs with ultra-quick 36-tooth freehub engagement, while Maxxis Minion DHR II tires offer unwavering grip through technical rides. The legendary combination of a RockShox Pike Select+ 140mm suspension fork, and a RockShox Super Deluxe Select+ rear shock soak up the hits and keep coming back for more.
Features
- ”C” carbon frame blends lightweight performance with legendary durability, at a price that leaves you some leftovers in your bike budget
- MX wheel size blends the playful, agile feel of a 27.5” rear wheel, with the rollover and traction of a 29” wheel up front
- DT Swiss 370 hubs with 36-tooth engagement and RaceFace AR Offset 30 rims keep you rolling with quick hub engagement for technical climbs
- Glovebox lets you securely store your ride essentials beneath a securely-latched panel in the downtube, perfect for storing mid-ride snacks and bulky spare tubes
- 130mm rear travel with VPP™ suspension system to confidently soak up the chunky descents and the pedaling efficiency to climb back up
- Sag Window provides a clear view of the rear shock for easy setup, with a rubber mud flap to keep the shock protected
- UDH (Universal Derailleur Hanger) compatible for use with modern UDH drivetrains
- 73mm threaded bottom bracket shell for added reliability and easy service
| Frame | Carbon C |
|---|---|
| Fork | RockShox Pike Select+- 140mm |

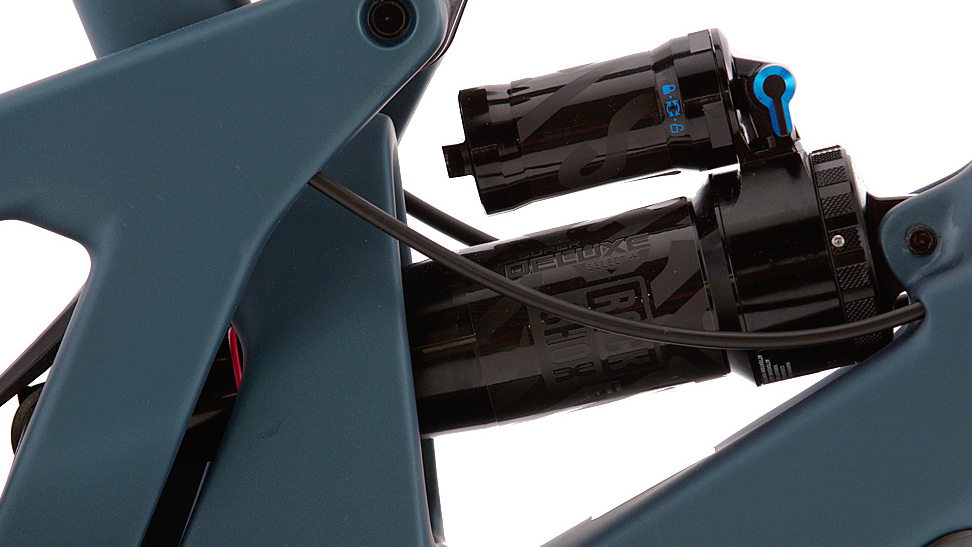

| Rear Shock | RockShox Super Deluxe Select+ – 210×50 |
| Headset | Cane Creek 40 IS Integrated |
| Shifter | SRAM GX Eagle – 12spd |
| Front Derailleur | Nope! |

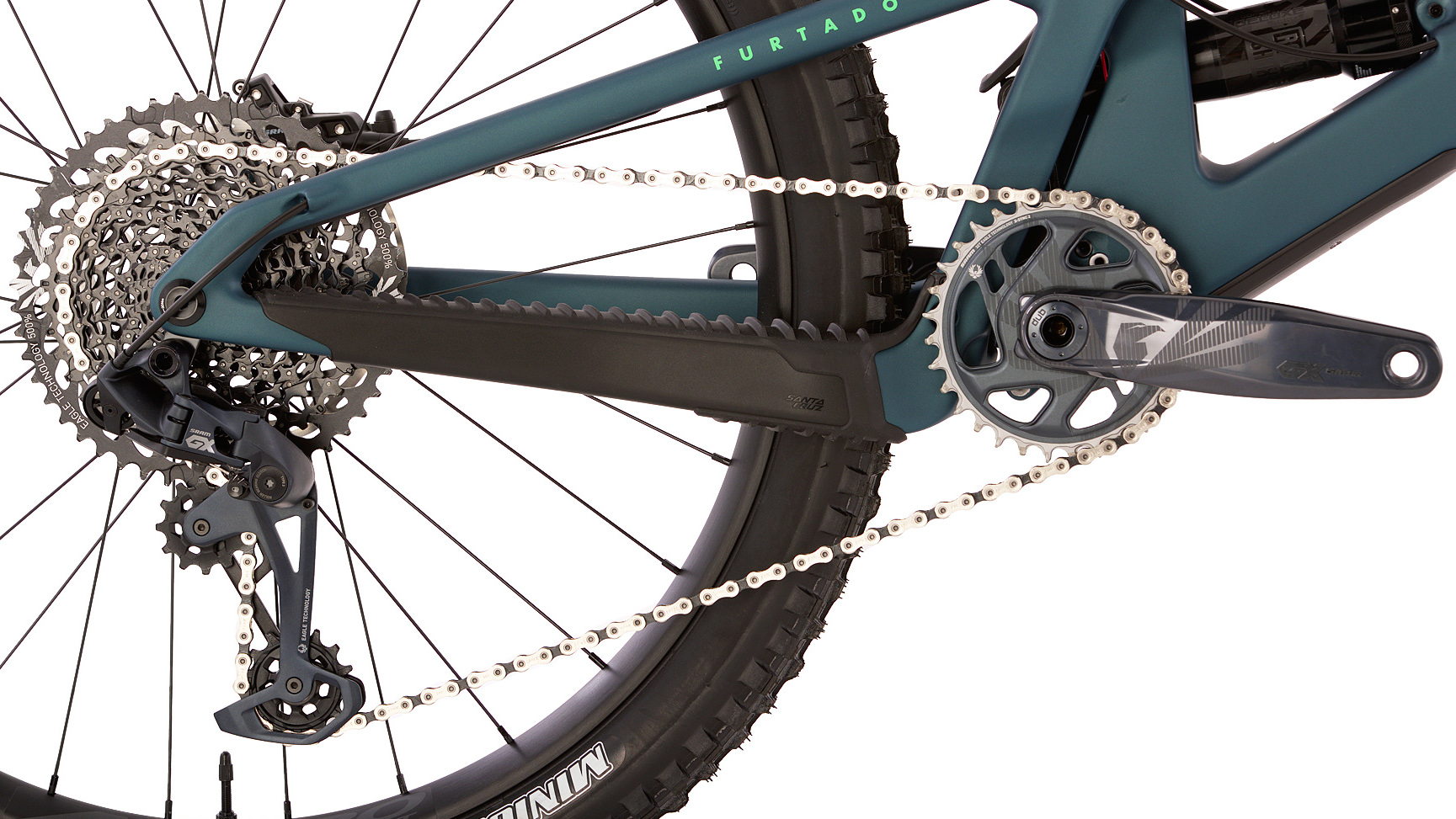

| Rear Derailleur | SRAM GX Eagle- 12-speed |
| Crankset | SRAM GX Eagle 148 DUB – 32t |
| Bottom Bracket | SRAM DUB 68/73mm threaded |
| Chain | SRAM GX Eagle – 12-speed |
| Cassette | SRAM XG1275 Eagle – 10-50t |
| Brakes | SRAM G2 R |
| Wheelset | RaceFace AR Offset 30 29” rims – DT Swiss 370 hubs (36-tooth engagement) |
| Tires | Maxxis Minion DHR II 29″x2.4″, 3C MaxxGrip, EXO, TR (Front) – Maxxis Minion DHR II 27.5″x2.4″, 3C MaxxTerra, EXO, TR (Rear) |
| Handlebar | Burgtec RideWide Alloy Bar – 760mm |
| Stem | Burgtec Enduro MK3 – 42mm |
| Grips | Juliana House Grips |
| Seatpost | SDG Tellis Dropper – 31.6mm |
| Seatclamp | Bolt-on |
| Saddle | Juliana Segundo Saddle |
| Intended Use | Trail, All-Mountain |
| Approximate Weight | 30.61 lbs / 13.98 kg |
Note: Components are subject to change without notice.
| Size | Extra Small | Small | Medium |
|---|---|---|---|
| A: Seat Tube Length | 370 | 380 | 405 |
| B: Effective Top Tube | 544 | 570 | 598 |
| C: Stack | 599 | 608 | 622 |
| D: Reach | 410 | 434 | 459 |
| E: BB Height | 338 | 338 | 338 |
| F: BB Drop | 16 | 16 | 16 |
| G: Head Tube Length | 90 | 100 | 115 |
| H: Head Tube Angle | 65.2 ° | 65.2 ° | 65.2 ° |
| I: Seat Tube Angle | 77.4 ° | 77.4 ° | 77.4 ° |
| J: Standover Height | 694 | 703 | 706 |
| K: Chainstay Length | 428 | 430 | 433 |
| L: Wheelbase | 1147 | 1178 | 1212 |
| Crank Arm Length | – | – | – |
| Stem Length | 42 mm | 42 mm | 42 mm |
| Handlebar Width | 760 mm | 760 mm | 760 mm |
| Frame Size | Extra Small | Small | Medium |
|---|---|---|---|
| Rider Height | 4’8″ – 5’1″ 142 – 155 cm |
5’1″ – 5’5″ 155 – 165 cm |
5’5″ – 5’9″ 165 – 175 cm |
| Size | Extra Small | Small | Medium |
|---|---|---|---|
| A: Seat Tube Length | 14.6 | 15.0 | 15.9 |
| B: Effective Top Tube | 21.4 | 22.4 | 23.5 |
| C: Stack | 23.6 | 23.9 | 24.5 |
| D: Reach | 16.1 | 17.1 | 18.1 |
| E: BB Height | 13.3 | 13.3 | 13.3 |
| F: BB Drop | 0.6 | 0.6 | 0.6 |
| G: Head Tube Length | 3.5 | 3.9 | 4.5 |
| H: Head Tube Angle | 65.2 ° | 65.2 ° | 65.2 ° |
| I: Seat Tube Angle | 77.4 ° | 77.4 ° | 77.4 ° |
| J: Standover Height | 27.3 | 27.7 | 27.8 |
| K: Chainstay Length | 16.9 | 16.9 | 17.0 |
| L: Wheelbase | 45.2 | 46.4 | 47.7 |
| Crank Arm Length | – | – | – |
| Stem Length | 42 mm | 42 mm | 42 mm |
| Handlebar Width | 760 mm | 760 mm | 760 mm |
| Frame Size | Extra Small | Small | Medium |
|---|---|---|---|
| Rider Height | 4’8″ – 5’1″ 142 – 155 cm |
5’1″ – 5’5″ 155 – 165 cm |
5’5″ – 5’9″ 165 – 175 cm |
