Juliana Joplin 4 C Gx Axs Bike
Original price was: $5,865.00.$4,233.00Current price is: $4,233.00.
‘
Juliana Joplin 4 C GX AXS Bike
A true rockstar
The Juliana Joplin 4 C is a true rockstar. With the climbing agility of an XC bike, and the descending prowess of a trail bike, the Joplin helps you reach the summit with ample terrain-absorbing confidence for the rowdy descent. At the core of the 29” wheel-equipped Joplin is Juliana’s famous VPP suspension platform, with 120mm of optimized rear travel that’s specifically tuned to strike a balance between pedaling efficiency and trail-absorbing capability. With a lightweight and durable C Carbon frame, size-specific carbon layup, and rear triangle design, there’s a Joplin for every rider.

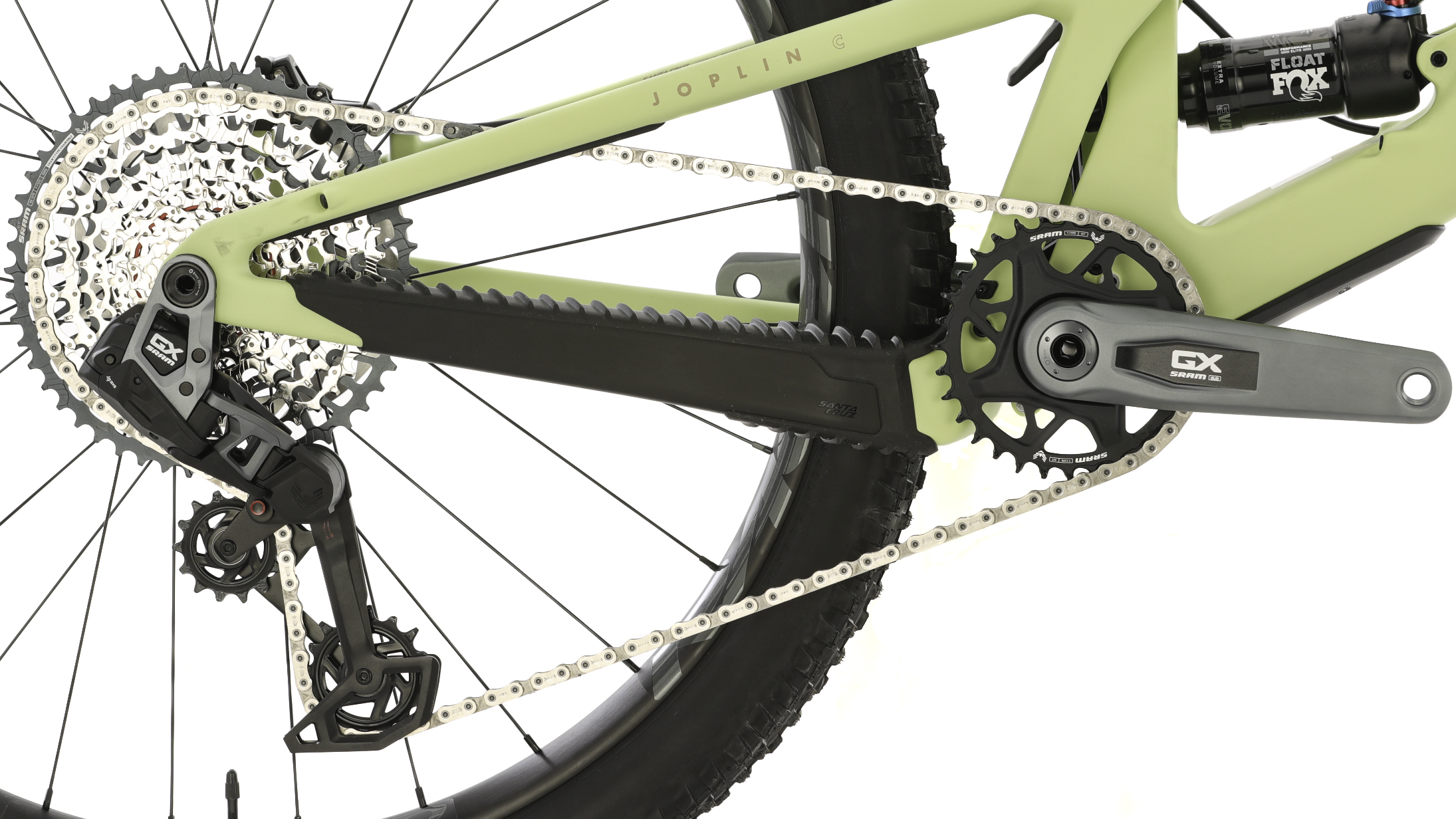

The Joplin 4 C GX AXS Bike features the SRAM GX AXS wireless electronic drivetrain, bringing the precise, customizable world of wireless shifting and wide gear ranges to every rider. To keep you rolling, RaceFace ARC Offset 30 rims are laced to DT Swiss 370 Hubs for smooth-rolling reliability, while Maxxis Forekaster tires provide all the grip needed for blazing fast trail rides. When the time comes to scrub some speed, the powerful SRAM Level Bronze Stealth 4-piston brakes provide modulation and control for confident descending.
Features
- ”C” carbon frame blends lightweight performance with legendary durability, at a price that leaves you some leftovers in your bike budget
- 120mm of rear travel with VPP lower link design is optimized for efficient pedaling and capable descending
- VPP Flip Chip design to easily swap between High and Low settings on the lower suspension link, and customize suspension feel for rider preference or conditions
- Glovebox lets you securely store your ride essentials beneath a securely-latched panel in the downtube, perfect for storing mid-ride snacks and bulky spare tubes
- DT Swiss 370 Hubs with RaceFace ARC Offset 30 rims offer smooth-rolling reliability, with the durability to handle the toughest trails
- 73mm threaded bottom bracket shell for added reliability and easy service
| Frame | Carbon C |
|---|---|
| Fork | FOX 34 Float Performance Elite – 130mm |

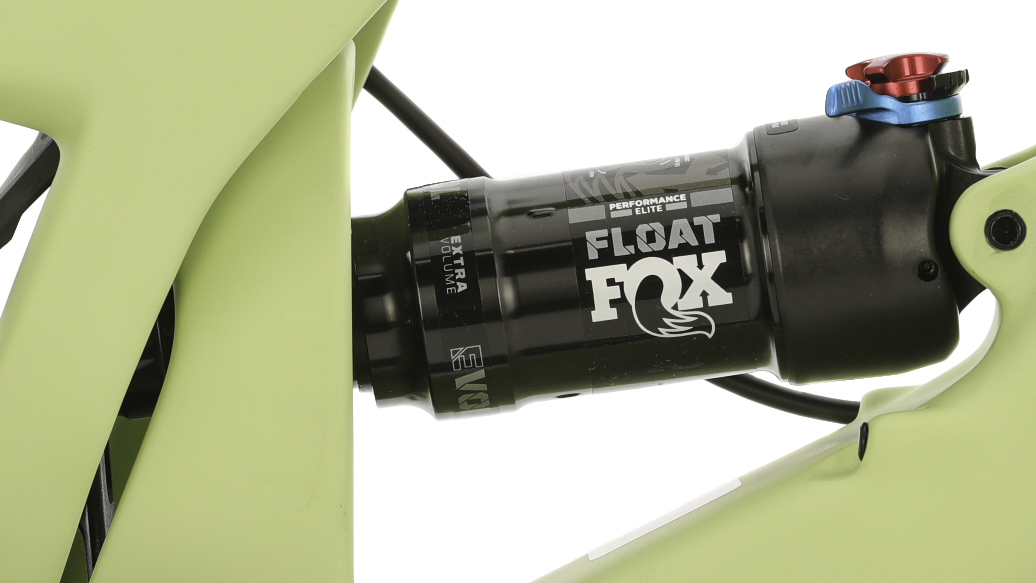

| Rear Shock | FOX Float Performance Elite 190×45 |
| Headset | Cane Creek 40 IS Integrated |
| Shifter | SRAM AXS Pod Bridge |
| Front Derailleur | Nope! |
| Rear Derailleur | SRAM GX Eagle AXS T-Type – 12-speed |
| Crankset | SRAM GX Eagle DUB T-Type – 32t |
| Bottom Bracket | SRAM DUB 73mm MTB Wide |
| Chain | SRAM GX Eagle T-Type Flattop – 12-speed |
| Cassette | SRAM GX Eagle T-Type – 10-52t |
| Brakes | SRAM Level Bronze Stealth |
| Wheelset | DT Swiss 370 Boost Hubs, RaceFace ARC Offset 30 Rims (XD Driver, 6-Bolt) |
| Tires | Maxxis Forekaster 29″x2.4″WT, 3C, MaxxTerra, EXO |
| Handlebar | Santa Cruz 20 Carbon Bar – 760mm |
| Stem | Burgtec Enduro MK3 – 42mm |
| Grips | Juliana House Grips |
| Seatpost | OneUp V2 Dropper, RockShox Reverb Stealth Dropper, or Fox Transfer Dropper – 31.6 |
| Seatclamp | Bolt-on |
| Saddle | Juliana Segundo Saddle |
| Intended Use | Trail, All-Mountain |
| Approximate Weight | N/A |
Note: Components are subject to change without notice.
| Size | Extra Small | Small | Medium |
|---|---|---|---|
| A: Seat Tube Length | 370 | 380 | 405 |
| B: Effective Top Tube | 555 | 579 | 602 |
| C: Stack | 601 | 610 | 619 |
| D: Reach | 405 | 430 | 455 |
| E: BB Height | 335 | 335 | 335 |
| F: BB Drop | 38 | 38 | 38 |
| G: Head Tube Length | 95 | 105 | 115 |
| H: Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° |
| I: Seat Tube Angle | 76 ° | 76.3 ° | 76.7 ° |
| J: Standover Height | 680 | 693 | 696 |
| K: Chainstay Length | 430 | 430 | 433 |
| L: Wheelbase | 1138 | 1167 | 1199 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm |
| Stem Length | 42 mm | 42 mm | 42 mm |
| Handlebar Width | 760 mm | 760 mm | 760 mm |
| Frame Size | Extra Small | Small | Medium |
|---|---|---|---|
| Rider Height | 4’8″ – 5’1″ 142 – 155 cm |
5’1″ – 5’5″ 155 – 165 cm |
5’5′ – 5’9″ 165 – 175 cm |
| Size | Extra Small | Small | Medium |
|---|---|---|---|
| A: Seat Tube Length | 14.6 | 15.0 | 15.9 |
| B: Effective Top Tube | 21.9 | 22.8 | 23.7 |
| C: Stack | 23.7 | 24.0 | 24.4 |
| D: Reach | 15.9 | 16.9 | 17.9 |
| E: BB Height | 13.2 | 13.2 | 13.2 |
| F: BB Drop | 1.5 | 1.5 | 1.5 |
| G: Head Tube Length | 3.7 | 4.1 | 4.5 |
| H: Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° |
| I: Seat Tube Angle | 76.0 ° | 76.3 ° | 76.7 ° |
| J: Standover Height | 26.8 | 27.3 | 27.4 |
| K: Chainstay Length | 16.9 | 16.9 | 17.0 |
| L: Wheelbase | 44.8 | 45.9 | 47.2 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm |
| Stem Length | 42 mm | 42 mm | 42 mm |
| Handlebar Width | 760 mm | 760 mm | 760 mm |
| Frame Size | Extra Small | Small | Medium |
|---|---|---|---|
| Rider Height | 4’8″ – 5’1″ 142 – 155 cm |
5’1″ – 5’5″ 155 – 165 cm |
5’5′ – 5’9″ 165 – 175 cm |
Love this Product?
CALIFORNIA PROPOSITION 65 WARNING: This product can expose you to chemicals including (Cadmium, Phthalates, Bisphenol, Nickel (Metallic), di(2-ethylhexyl)phthalate “DEHP”), which is known to the State of California to cause cancer and/or cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
| Color |
Matte Matcha Green |
|---|---|
| Size |
Extra Small ,Medium ,Small |
Brand
Juliana Bicycles
