Marin DSX FS 700C Bike 2023
Original price was: $1,360.00.$859.00Current price is: $859.00.
‘
Marin DSX FS 700c Bike 2023
The Long Distance Mixed Surface Bike
Many riders want a bike that is versatile and can do more than one type of riding. If you’re the type that wants to do a little road riding one day and then some gravel riding the next, then you’ll want a hybrid-style bike. The Marin DSX FS 700c Bike is a flat-bar gravel bike that puts riders in an upright position that is comfortable for commuting and having fun out in the dirt. It has a Series 3 aluminum frame that uses 60mm of travel on the front. The frame features internal cable routing, a mudguard, rack mounts, thru-axles, and wide tire clearance for up to 700 x 45mm or 29 x 2.1″ tires.
The Marin DSX FS 700c Bike comes with a Shimano SLX/Deore 12-speed drivetrain. This includes a cassette that has a hill-crushing 10-51T gear range that makes climbing and pedaling through rough terrain a breeze. Shimano MT201/UR300 flat mount hydraulic disc brakes provide excellent stopping power so you can stop with confidence. Marin Aluminum Double Wall rims are paired with WTB Riddler tires that work well on and off-road. If you’re looking for the ultimate do-it-all bike, then you’ll love the DSX FS.
Features

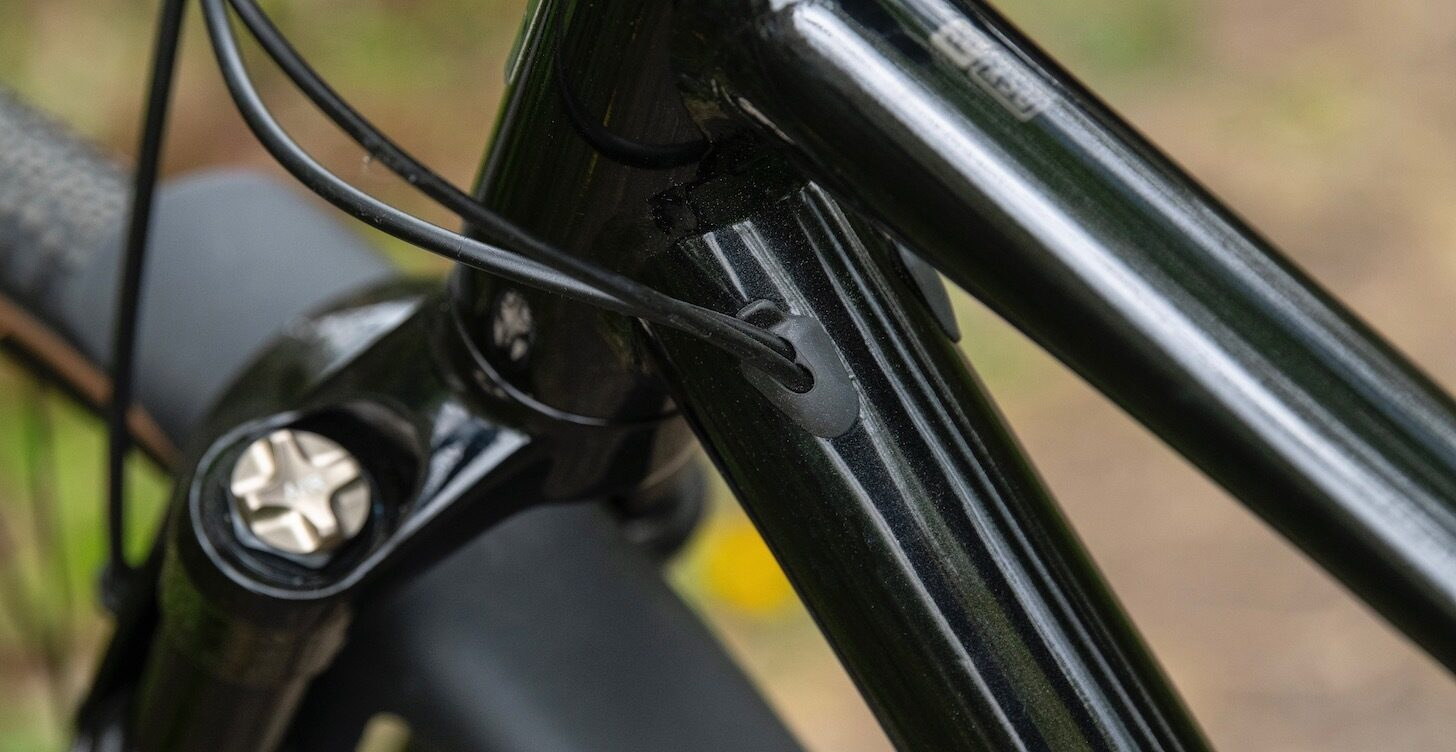

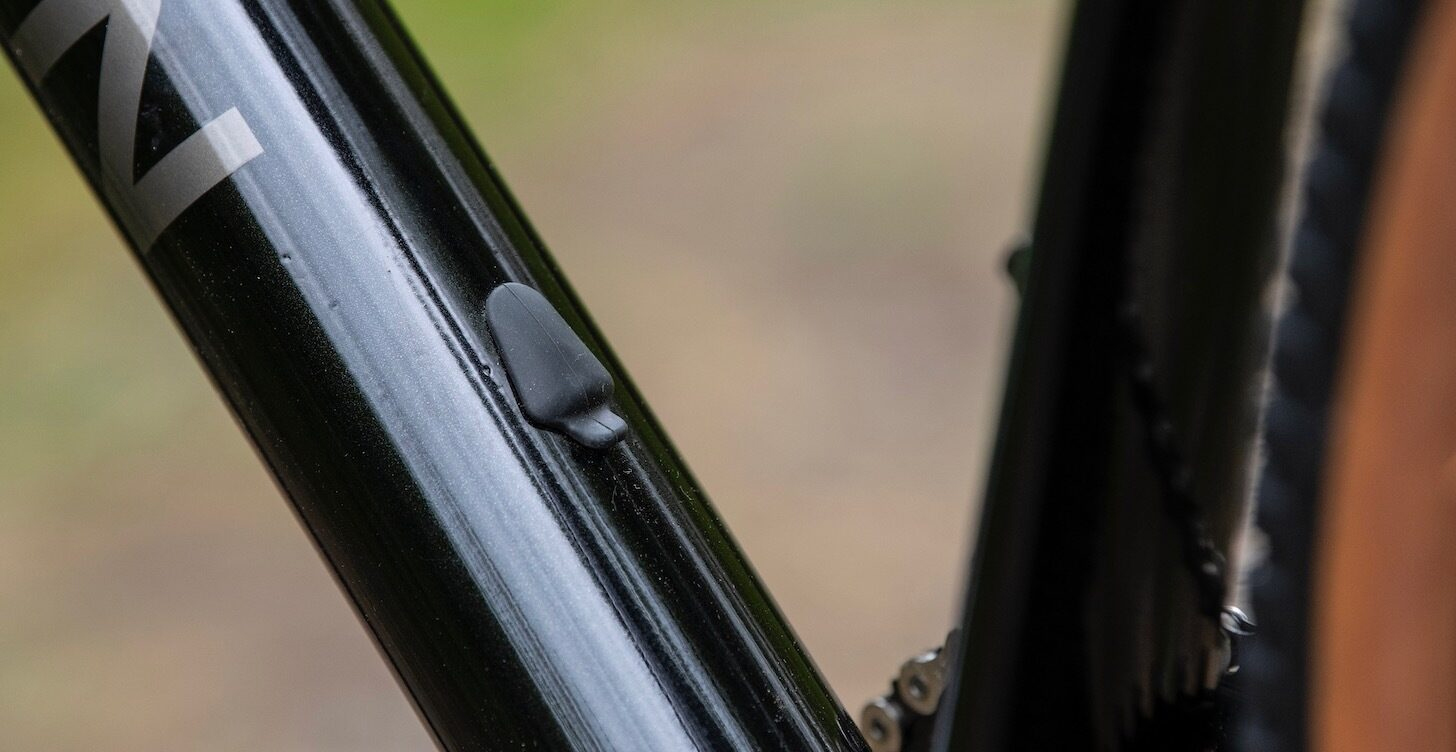

- Series 3 aluminum frame with internal cable routing, mudguard, rack mounts, and thru-axles

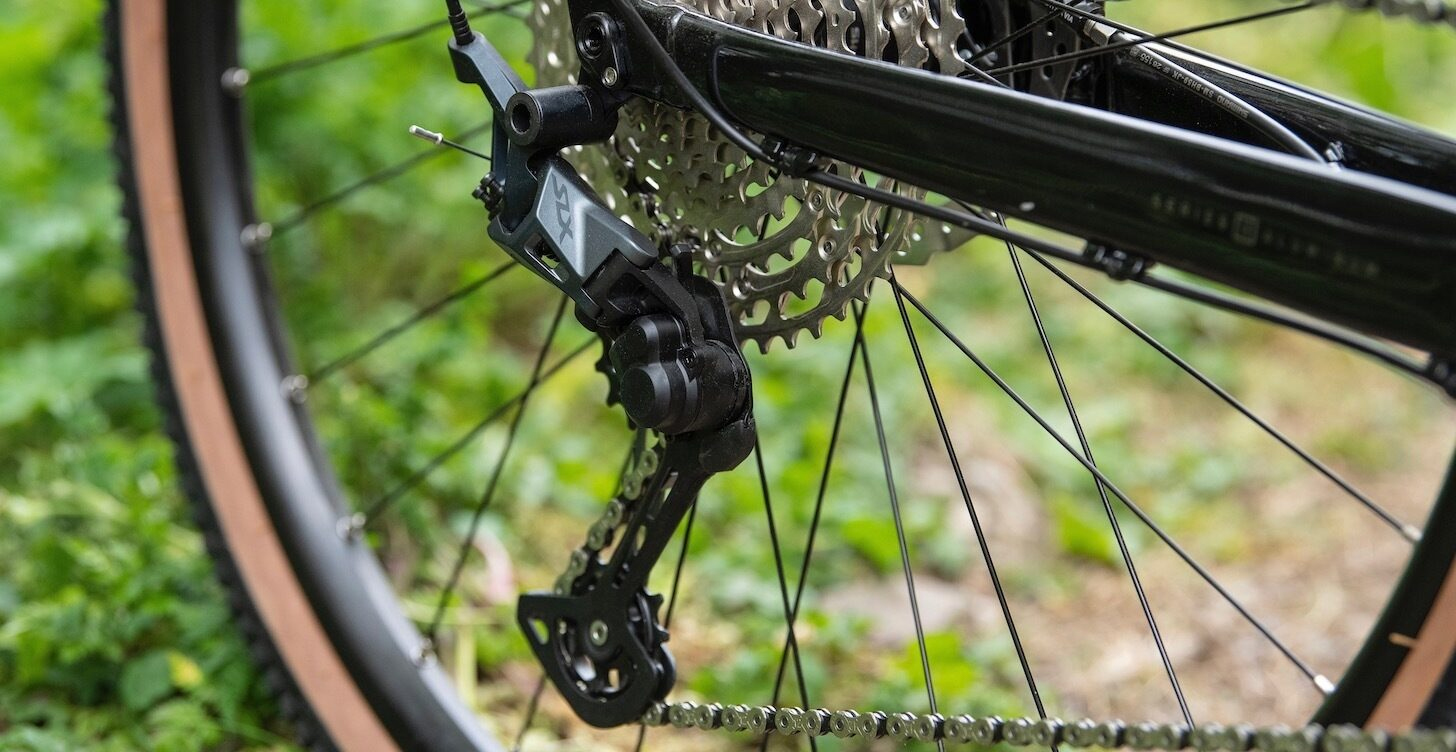

- Shimano SLX/Deore 12-speed drivetrain performs well in demanding terrain

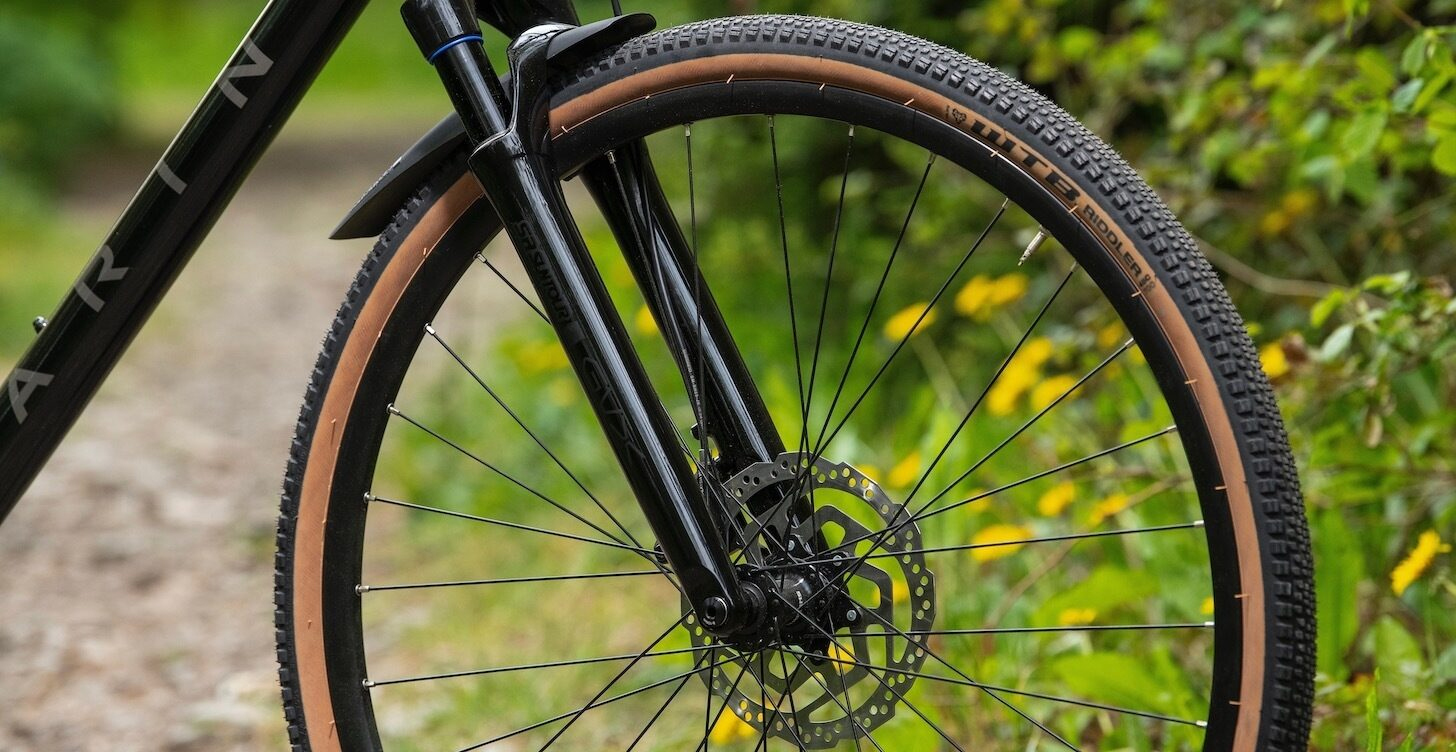

- Shimano MT201/UR300 brakes provide excellent stopping power

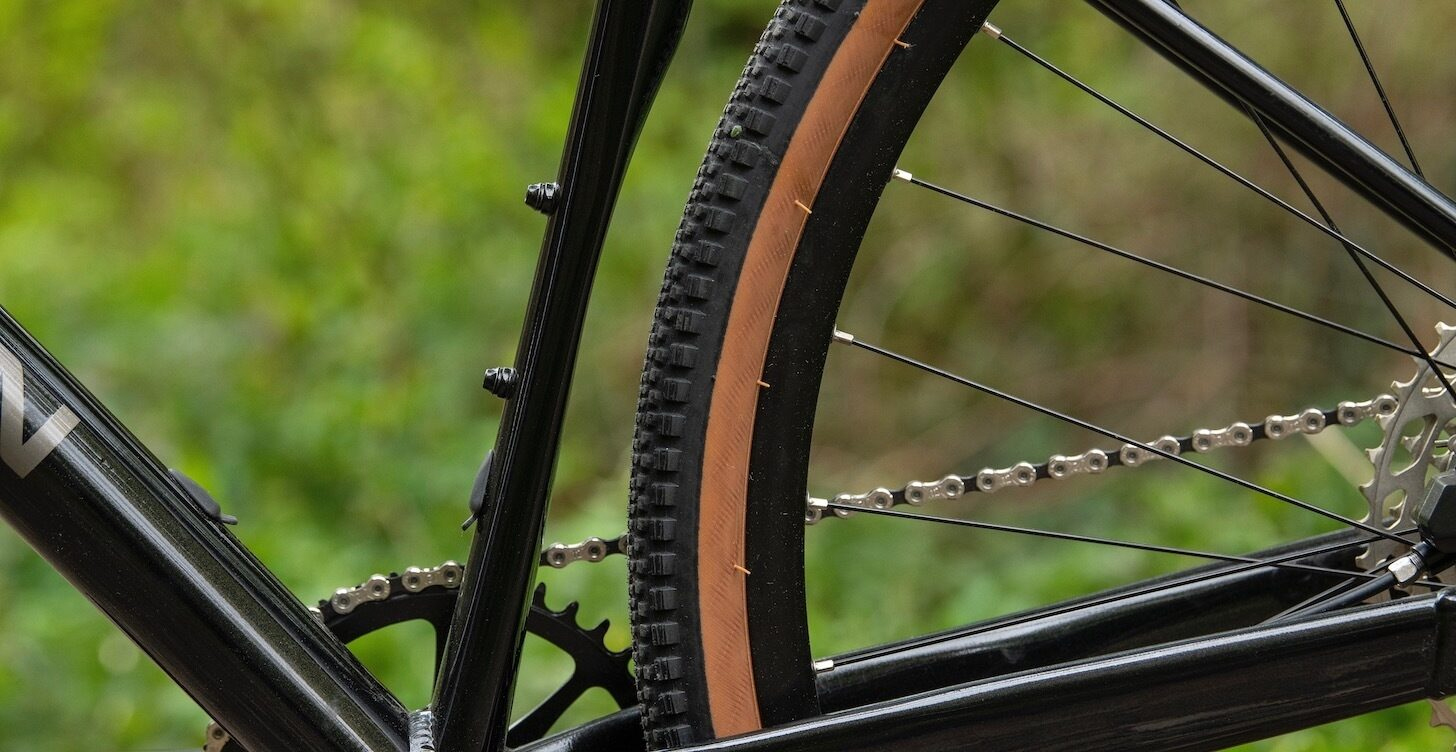

- Marin aluminum double-wall rims paired with WTB Riddler tires
- SR Suntour DVR LOR fork with 60mm of travel
| Frame | Series 3 Aluminum |
|---|---|
| Fork | SR Suntour GVX LOR, 60mm Travel |
| Headset | FSA No.42 ACB Sealed Cartridge |
| Shifters | Shimano Deore 12-Speed |
| Front Derailleur | Nope |
| Rear Derailleur | Shimano SLX, 12-Speed |
| Crankset | Forged Aluminum, 42T |
| Bottom Bracket | Sealed Outboard Bearing |
| Chain | KMC X12 |
| Cassette | Shimano Deore, 10-51T |
| Brakes | Shimano MT201/UR300 Flat Mount Hydraulic |
| Wheelset | Marin Aluminum Double-Wall Rims, Forged Aluminum Hubs |
| Tires | WTB Riddler, 700 x 45mm |
| Handlebar | Marin MiniRiser |
| Stem | Marin 3D Forged Alloy |
| Grips/Bar Tape | Marin MTB |
| Seatpost | Marin Alloy |
| Seatclamp | Single-Bolt |
| Saddle | Marin DSX |
| Intended Use | Road, Gravel, Commuter |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 430 | 480 | 520 | 558 |
| B: Effective Top Tube | 567 | 598 | 621 | 644 |
| C: Stack | 583 | 602 | 630 | 658 |
| D: Reach | 400 | 425 | 440 | 455 |
| E: BB Height | 278 | 278 | 278 | 278 |
| F: BB Drop | 82 | 82 | 82 | 82 |
| G: Head Tube Length | 100 | 120 | 150 | 180 |
| H: Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| I: Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| J: Standover Height | 667 | 708 | 738 | 761 |
| K: Chainstay Length | 425 | 425 | 425 | 425 |
| L: Wheelbase | 1065 | 1097 | 1123 | 1149 |
| Crank Arm Length | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem Length | 70 mm | 70 mm | 70 mm | 70 mm |
| Handlebar Width | 680 mm | 680 mm | 680 mm | 680 mm |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 16.9 | 18.9 | 20.5 | 22.0 |
| B: Effective Top Tube | 22.3 | 23.5 | 24.4 | 25.4 |
| C: Stack | 23.0 | 23.7 | 24.8 | 25.9 |
| D: Reach | 15.7 | 16.7 | 17.3 | 17.9 |
| E: BB Height | 10.9 | 10.9 | 10.9 | 10.9 |
| F: BB Drop | 3.2 | 3.2 | 3.2 | 3.2 |
| G: Head Tube Length | 3.9 | 4.7 | 5.9 | 7.1 |
| H: Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| I: Seat Tube Angle | 74.0 ° | 74.0 ° | 74.0 ° | 74.0 ° |
| J: Standover Height | 26.3 | 27.9 | 29.1 | 30.0 |
| K: Chainstay Length | 16.7 | 16.7 | 16.7 | 16.7 |
| L: Wheelbase | 41.9 | 43.2 | 44.2 | 45.2 |
| Crank Arm Length | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem Length | 70 mm | 70 mm | 70 mm | 70 mm |
| Handlebar Width | 680 mm | 680 mm | 680 mm | 680 mm |
