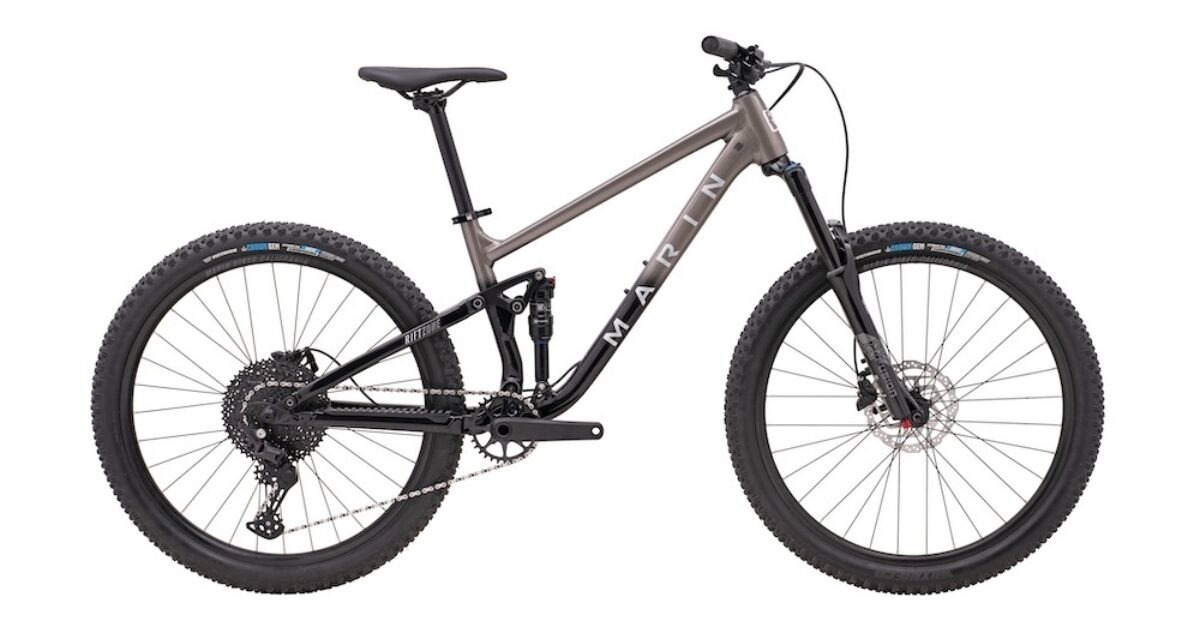

Marin Rift Zone 1 27.5″ Bike 2023
Rifting With The Best
Trail bikes are perfect for climbing, descending, and all-day adventures on the mountain. These bikes have longer suspension travel than cross-country bikes so they can conquer more aggressive riding with ease. The Marin Rift Zone 1 27.5″ Bike is made to party, whatever your jam might be. It has a Series 3 6061 aluminum frame that uses 140mm of travel on the front and 130mm of travel on the rear. The frame features 141 Boost hub spacing, a threaded bottom bracket, ISCG-05 tabs, internal cable routing, and an integrated chainstay protector.
The 1 version of the Marin Rift Zone 27.5″ Bike comes with a Shimano Deore 11-speed drivetrain. This includes a cassette that has a hill-crushing 11-51T gear range that makes climbing and pedaling through demanding terrain much easier. Shimano MT200 hydraulic disc brakes provide highly-reliable stopping power so you can descend under control. Marin double-wall aluminum rims are paired with Vee Tire Flow Snap tires that can be set up tubeless for a smoother ride, better traction, and fewer flats.
Features
- Series 3 6061 aluminum frame with Multitrac Suspension Technology, internal cable routing, integrated chainstay protection, ISCG-05 tabs, and 141 Boost hub spacing
- Shimano Deore 11-speed drivetrain performs well in demanding terrain
- Shimano MT200 hydraulic disc brakes provide highly-reliable stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- Boost 141 hub spacing that is upgradable to 148×12
| Frame | Series 3 6061 Aluminum |
|---|---|
| Fork | X-Fusion Sweep Boost RC 27.5″, 140mm Travel, 44mm Offset |
| Rear Shock | X-Fusion O2 Pro R, Custom Tune, 210x55mm |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1.5″ Tapered |
| Shifters | Shimano Deore, 11-Speed |
| Front Derailleur | Where? Not Here |
| Rear Derailleur | Shimano Deore SGS, 11-Speed |
| Crankset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide |
| Bottom Bracket | External Sealed Cartridge Bearing |
| Chain | KMC X11 Silver and Black |
| Cassette | SunRace 11-Speed, 11-51T |
| Brakes | Shimano BR-MT200 Hydraulic Disc, 180mm Rotors |
| Wheelset | Marin Double-Wall Alloy 29mm Inner TR Rims, Shimano MT400B/MT200B Boost/Boost 141 QR Hubs |
| Tires | Vee Tire Crown Gem 27.5×2.35″, Dual Control Compound, Tubeless-Ready |
| Handlebar | Marin Mini-Riser, 6061 Double-Butted Aluminum, 780mm Wide, 28mm Rise |
| Stem | Marin 3D Forged Alloy, 35mm |
| Grips/Bar Tape | Marin MTN, Closed End |
| Seatpost | Marin Alloy, 30.9mm |
| Seatclamp | Bolt-Type |
| Saddle | Marin Speed Concept |
| Intended Use | Trail |
Note: Components are subject to change without notice.
| Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| A: Seat Tube Length | 330 | 390 | 400 | 425 | 430 |
| B: Effective Top Tube | 552 | 568 | 589 | 610 | 641 |
| C: Stack | 569 | 600 | 605 | 609 | 614 |
| D: Reach | 415 | 430 | 450 | 470 | 500 |
| E: BB Height | 339 | 339 | 339 | 339 | 339 |
| F: BB Drop | 20 | 20 | 20 | 20 | 20 |
| G: Head Tube Length | 115 | 120 | 125 | 130 | 135 |
| H: Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| I: Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| J: Standover Height | 661 | 677 | 687 | 682 | 687 |
| K: Chainstay Length | 430 | 430 | 430 | 430 | 430 |
| L: Wheelbase | 1147 | 1164 | 1186 | 1208 | 1241 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| Rider Height | 5’1″ – 5’4″ | 5’4″ – 5’7″ | 5’7″ – 5’10” | 5’10” – 6’1″ | 6’1″ – 6’4″ |
| Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| A: Seat Tube Length | 13.0 | 15.4 | 15.7 | 16.7 | 16.9 |
| B: Effective Top Tube | 21.7 | 22.4 | 23.2 | 24.0 | 25.2 |
| C: Stack | 22.4 | 23.6 | 23.8 | 24.0 | 24.2 |
| D: Reach | 16.3 | 16.9 | 17.7 | 18.5 | 19.7 |
| E: BB Height | 13.3 | 13.3 | 13.3 | 13.3 | 13.3 |
| F: BB Drop | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| G: Head Tube Length | 4.5 | 4.7 | 4.9 | 5.1 | 5.3 |
| H: Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| I: Seat Tube Angle | 77.0 ° | 77.0 ° | 77.0 ° | 77.0 ° | 77.0 ° |
| J: Standover Height | 26.0 | 26.7 | 27.0 | 26.9 | 27.0 |
| K: Chainstay Length | 16.9 | 16.9 | 16.9 | 16.9 | 16.9 |
| L: Wheelbase | 45.2 | 45.8 | 46.7 | 47.6 | 48.9 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| Rider Height | 5’1″ – 5’4″ | 5’4″ – 5’7″ | 5’7″ – 5’10” | 5’10” – 6’1″ | 6’1″ – 6’4″ |
