Marin Rift Zone 1 29 Bike 2023
Original price was: $1,445.00.$1,042.00Current price is: $1,042.00.
‘

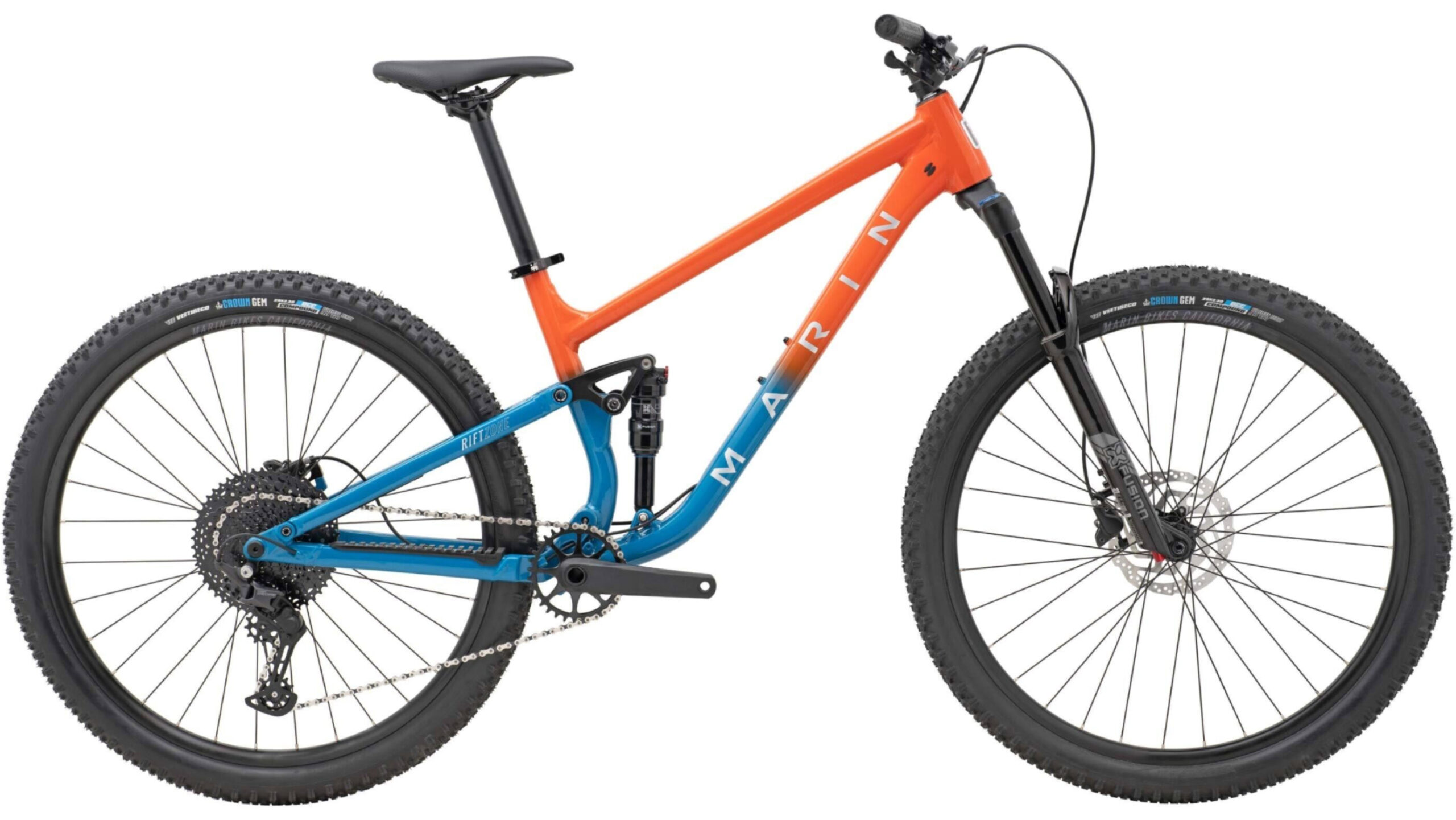

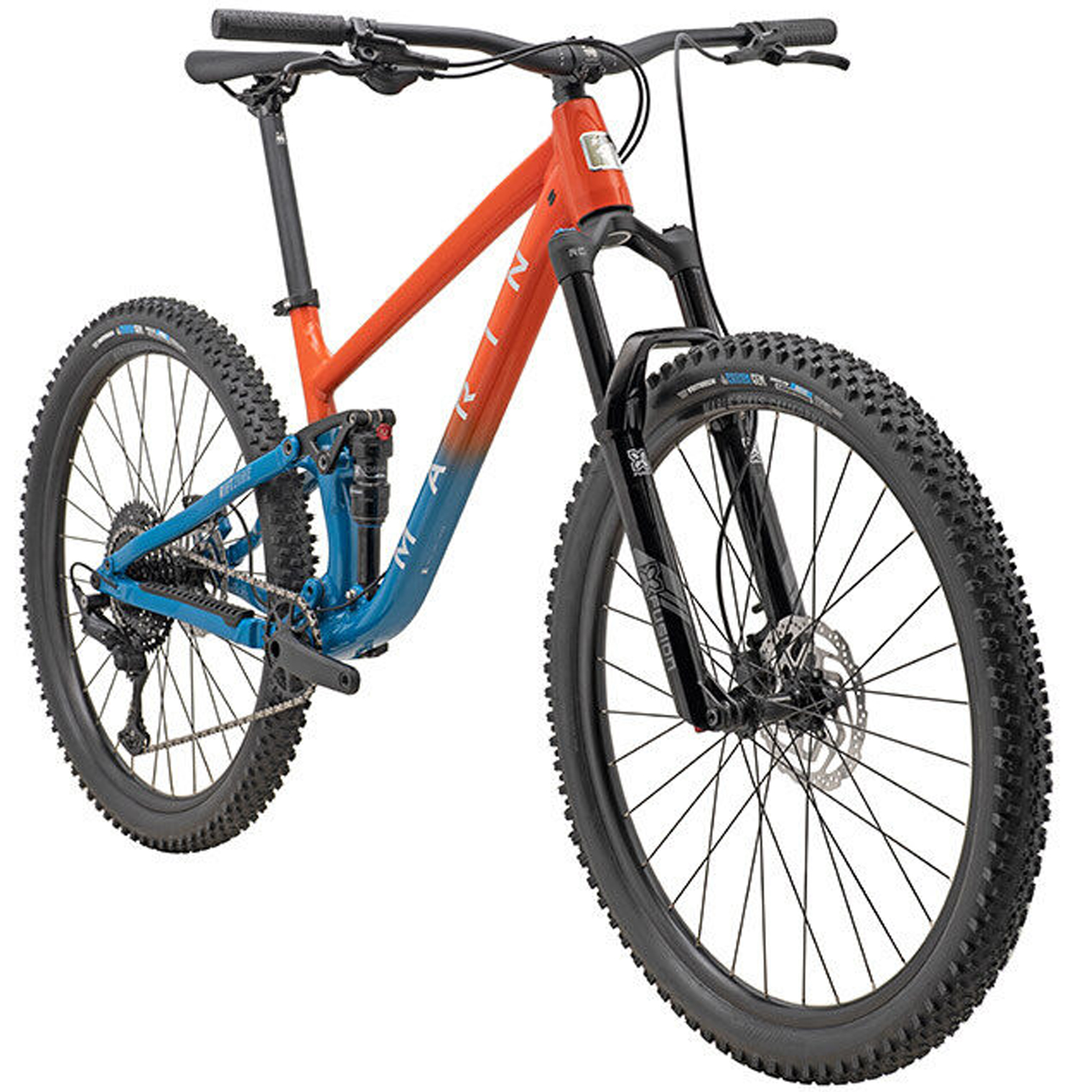

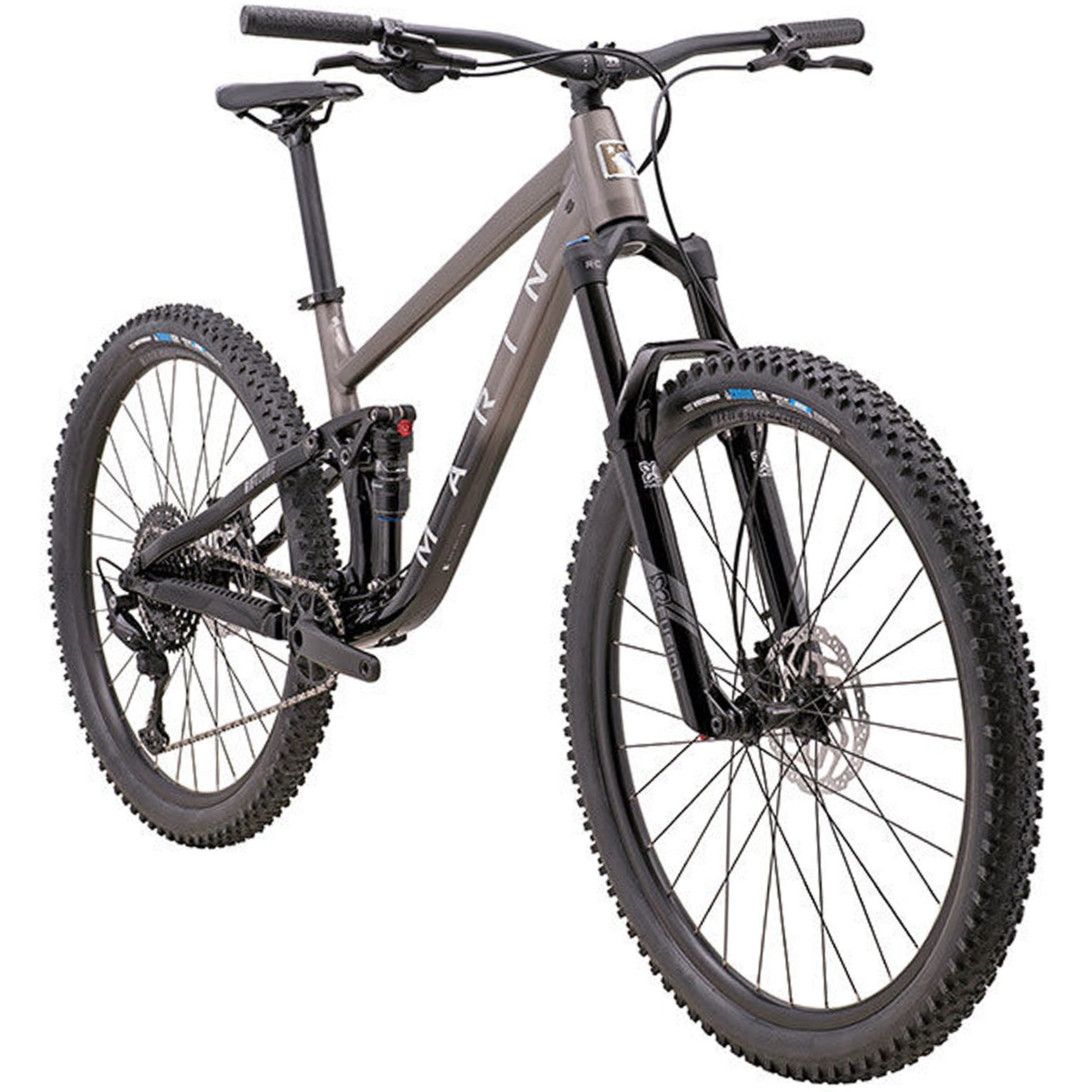

Marin Rift Zone 1 29″ Bike 2023
Rifting With The Best
Trail bikes are perfect for climbing, descending, and all-day adventures on the mountain. These bikes have longer suspension travel than cross-country bikes so they can conquer more aggressive riding with ease. The Marin Rift Zone 1 29″ Bike is made to party, whatever your jam might be. It has a Series 3 6061 aluminum frame that uses 140mm of travel on the front and 130mm of travel on the rear. The frame features 141 Boost hub spacing, a threaded bottom bracket, ISCG-05 tabs, internal cable routing, and an integrated chainstay protector.
The 1 version of the Marin Rift Zone 29″ Bike comes with a Shimano Deore 11-speed drivetrain. This includes a cassette that has a hill-crushing 11-51T gear range that makes climbing and pedaling through demanding terrain much easier. Shimano MT200 hydraulic disc brakes provide highly-reliable stopping power so you can descend under control. Marin double-wall aluminum rims are paired with Vee Tire Flow Snap tires that can be set up tubeless for a smoother ride, better traction, and fewer flats.
Features
- Series 3 6061 aluminum frame with Multitrac Suspension Technology, internal cable routing, integrated chainstay protection, ISCG-05 tabs, and 141 Boost hub spacing
- Shimano Deore 11-speed drivetrain performs well in demanding terrain
- Shimano MT200 hydraulic disc brakes provide highly-reliable stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
| Frame | Series 3 6061 Aluminum |
|---|---|
| Fork | X-Fusion Slide Boost 29″, 140mm Travel, 44mm Offset |
| Rear Shock | X-Fusion O2 Pro R, Custom Tune, 210x55mm |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1.5″ Tapered |
| Shifters | Shimano Deore, 11-Speed |
| Front Derailleur | Where? Not Here |
| Rear Derailleur | Shimano Deore SGS, 11-Speed |
| Crankset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide |
| Bottom Bracket | External Sealed Cartridge Bearing |
| Chain | KMC X11 Silver and Black |
| Cassette | SunRace 11-Speed, 11-51T |
| Brakes | Shimano BR-MT200 Hydraulic Disc, 180mm Rotors |
| Wheelset | Marin Double-Wall Alloy 29mm Inner TR Rims, Shimano MT400B/MT200B Boost/Boost 141 QR Hubs |
| Tires | Vee Tire Crown Gem 29×2.35″, Dual Control Compound, Tubeless-Ready |
| Handlebar | Marin Mini-Riser, 6061 Double-Butted Aluminum, 780mm Wide, 28mm Rise |
| Stem | Marin 3D Forged Alloy, 35mm |
| Grips/Bar Tape | Marin MTN, Closed End |
| Seatpost | Marin Alloy, 30.9mm |
| Seatclamp | Bolt-Type |
| Saddle | Marin Speed Concept |
| Intended Use | Trail |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 390 | 400 | 425 | 430 |
| B: Effective Top Tube | 579 | 605 | 623 | 663 |
| C: Stack | 623 | 628 | 637 | 641 |
| D: Reach | 435 | 460 | 485 | 515 |
| E: BB Height | 343 | 343 | 343 | 343 |
| F: BB Drop | 35 | 35 | 35 | 35 |
| G: Head Tube Length | 110 | 115 | 125 | 130 |
| H: Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| I: Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| J: Standover Height | 690 | 691 | 701 | 700 |
| K: Chainstay Length | 430 | 430 | 430 | 430 |
| L: Wheelbase | 1170 | 1205 | 1234 | 1266 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 35 mm | 35 mm | 35 mm | 35 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’3″ – 5’6″ | 5’6″ – 5’10” | 5’10” – 6’1″ | 6’1″ – 6’4″ |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 15.4 | 15.7 | 16.7 | 16.9 |
| B: Effective Top Tube | 22.8 | 23.8 | 24.5 | 26.1 |
| C: Stack | 24.5 | 24.7 | 25.1 | 25.2 |
| D: Reach | 17.1 | 18.1 | 19.1 | 20.3 |
| E: BB Height | 13.5 | 13.5 | 13.5 | 13.5 |
| F: BB Drop | 1.4 | 1.4 | 1.4 | 1.4 |
| G: Head Tube Length | 4.3 | 4.5 | 4.9 | 5.1 |
| H: Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| I: Seat Tube Angle | 77.0 ° | 77.0 ° | 77.0 ° | 77.0 ° |
| J: Standover Height | 27.2 | 27.2 | 27.6 | 27.6 |
| K: Chainstay Length | 16.9 | 16.9 | 16.9 | 16.9 |
| L: Wheelbase | 46.1 | 47.4 | 48.6 | 49.8 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 35 mm | 35 mm | 35 mm | 35 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’3″ – 5’6″ | 5’6″ – 5’10” | 5’10” – 6’1″ | 6’1″ – 6’4″ |
