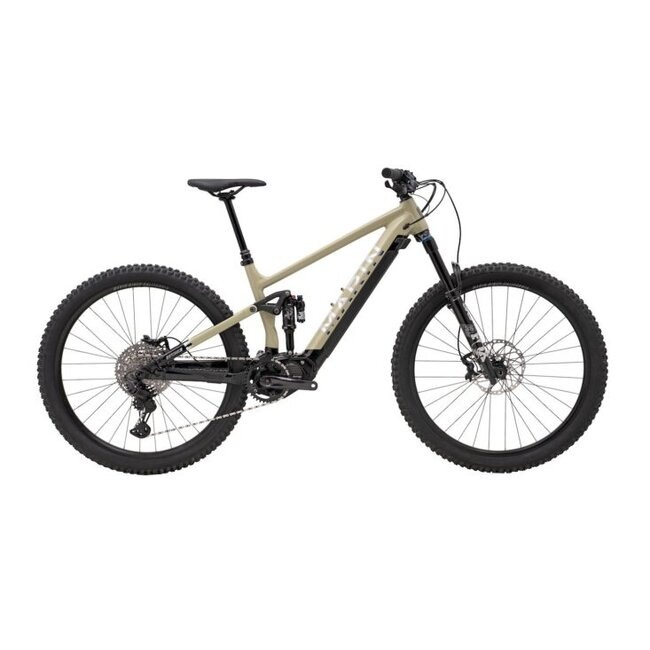

Marin Rift Zone E2 E-Bike 2024
Original price was: $3,995.00.$2,882.00Current price is: $2,882.00.
Marin Rift Zone E2 E-Bike
Mountain Biking With A Boost
E-bikes are designed to give your riding a little extra boost when you need it. The Marin Rift Zone E2 E-Bike is the result of us taking Marin’s award-winning trail 29″ platform and engineering it for electrification. The Series 4 alloy frame uses 140mm MultiTrac Suspension on the rear and 140mm of travel on the front. The frame features internal cable routing, integrated frame protection, Boost rear hub spacing, and a built-in rear speed sensor. With the Shimano STEPS EP801 250W motor and Shimano internal 630Wh battery, you’ll get up to 20mph of pedal assistance and anywhere from 19 to 50 miles of range depending on your level of assistance.
The E2 version of the Marin Rift Zone comes with a Shimano XT 11-speed drivetrain. With a 38T chainring up front and a 10-50T cassette on the rear, you’ll have no issues conquering steep climbs and difficult terrain. TRP DH-R EVO 4-piston hydraulic disc brakes provide superior stopping power so you can descend with confidence. Marin Aluminum Double Wall Rims are paired with Vee Tire Co Attack HPL Tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the X-Fusion Dropper Post, you’ll be able to quickly lift and lower your saddle with the press of a lever.
Features
- Series 4 aluminum frame with internal cable routing, integrated frame protection, Boost rear hub spacing, and a built-in rear speed sensor
- Shimano XT 11-speed drivetrain performs well in all riding conditions
- TRP DH-R EVO 4-piston hydraulic disc brakes provide excellent stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- X-Fusion Dropper Post quickly lifts and lowers your saddle with the press of a lever
| Frame | Series 4 Alloy, 140mm MultiTrac Suspension |
|---|---|
| Fork | Fox 38 Performance Elite, Integrated Fox Fender, 140mm Travel, 44mm Offset |
| Rear Shock | Fox Float X Performance Elite, EVOL Air, Climb Switch and Rebound Adj, 210×55 |
| Headset | FSA No 57, Sealed Cartridge Bearings, 1-1/8″ x 1-1/2″ |
| Shifters | Shimano Deore XT SL-M8130-R, 11-Speed, I-Spec EV |
| Front Derailleur | Nope |
| Rear Derailleur | Shimano Deore XT RD-M8130 SGS LinkGlide |
| Crankset | Shimano XT M8150, 160mm, 38T |
| Bottom Bracket | – |
| Chain | KMC E-11S |
| Cassette | Shimano XT LinkGlide LG-600, 10-50T |
| Brakes | TRP DH-R EVO 4-Piston Hydraulic, 203mm Rotors |
| Wheelset | Marin Aluminum Double Wall 29″ Rims, Shimano Boost Hubs |
| Tires | Vee Tire Co Attack HPL 29×2.5″ Top 40 Tubeless Compatible, Override E-Specific Casing |
| Handlebar | Marin Trail, 35mm Clamp, 7000 Alloy, 800mm Wide, 20mm Rise |
| Stem | Marin CNC, 35mm Length, 35mm Clamp |
| Grips/Bar Tape | Marin Grizzly Lock-On |
| Seatpost | X-Fusion Manic, S:125, M/L:150, XL:170mm Travel, 30.9mm |
| Seatclamp | Bolt-Type |
| Saddle | Marin eMTB Saddle |
| Intended Use | All-Mountain, Trail |
| Motor | Shimano STEPS EP801 Drive Unit, 250W, 85Nm, 20mph Top Assist |
| Battery | Shimano BT-EN806, Internal 630Wh |
| Display | Shimano SC-E600 |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 390 | 400 | 425 | 435 |
| B: Effective Top Tube | 585 | 607 | 629 | 661 |
| C: Stack | 606 | 614 | 625 | 634 |
| D: Reach | 445 | 465 | 485 | 515 |
| E: BB Height | 348 | 348 | 348 | 348 |
| F: BB Drop | 32 | 32 | 32 | 32 |
| G: Head Tube Length | 100 | 110 | 120 | 130 |
| H: Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| I: Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| J: Standover Height | 693 | 696 | 709 | 719 |
| K: Chainstay Length | 440 | 440 | 440 | 440 |
| L: Wheelbase | 1198 | 1222 | 1246 | 1280 |
| Crank Arm Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Stem Length | 35 mm | 35 mm | 35 mm | 35 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’3″ – 5’6″ | 5’6″ – 5’10” | 5’10” – 6’1″ | 6’1″ – 6’4″ |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 15.4 | 15.7 | 16.7 | 17.1 |
| B: Effective Top Tube | 23.0 | 23.9 | 24.8 | 26.0 |
| C: Stack | 23.9 | 24.2 | 24.6 | 25.0 |
| D: Reach | 17.5 | 18.3 | 19.1 | 20.3 |
| E: BB Height | 13.7 | 13.7 | 13.7 | 13.7 |
| F: BB Drop | 1.3 | 1.3 | 1.3 | 1.3 |
| G: Head Tube Length | 3.9 | 4.3 | 4.7 | 5.1 |
| H: Head Tube Angle | 65.0 ° | 65.0 ° | 65.0 ° | 65.0 ° |
| I: Seat Tube Angle | 77.0 ° | 77.0 ° | 77.0 ° | 77.0 ° |
| J: Standover Height | 27.3 | 27.4 | 27.9 | 28.3 |
| K: Chainstay Length | 17.3 | 17.3 | 17.3 | 17.3 |
| L: Wheelbase | 47.2 | 48.1 | 49.1 | 50.4 |
| Crank Arm Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Stem Length | 35 mm | 35 mm | 35 mm | 35 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’3″ – 5’6″ | 5’6″ – 5’10” | 5’10” – 6’1″ | 6’1″ – 6’4″ |
Love this Product?
CALIFORNIA PROPOSITION 65 WARNING: This product can expose you to chemicals including (Cadmium, Phthalates, Bisphenol, Nickel (Metallic), di(2-ethylhexyl)phthalate “DEHP”), which is known to the State of California to cause cancer and/or cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
| Color |
Sand/ Black |
|---|---|
| Size |
Large ,Medium |
