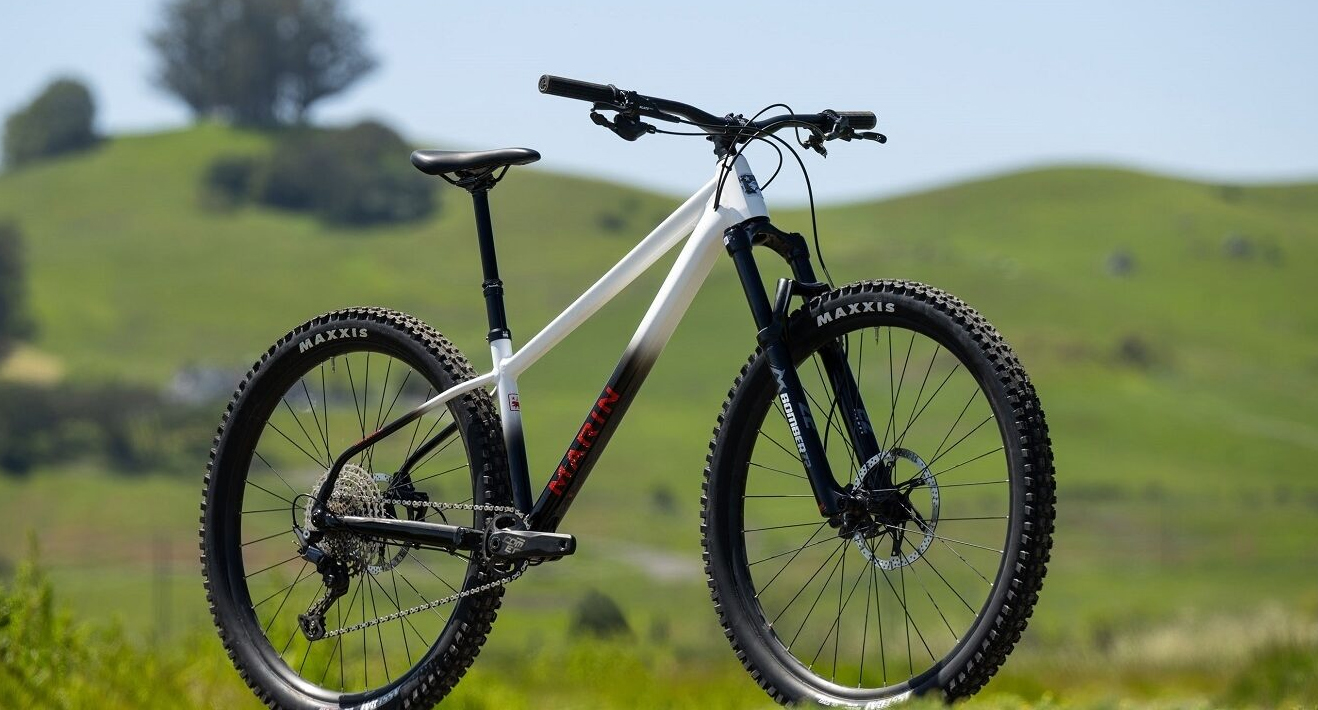

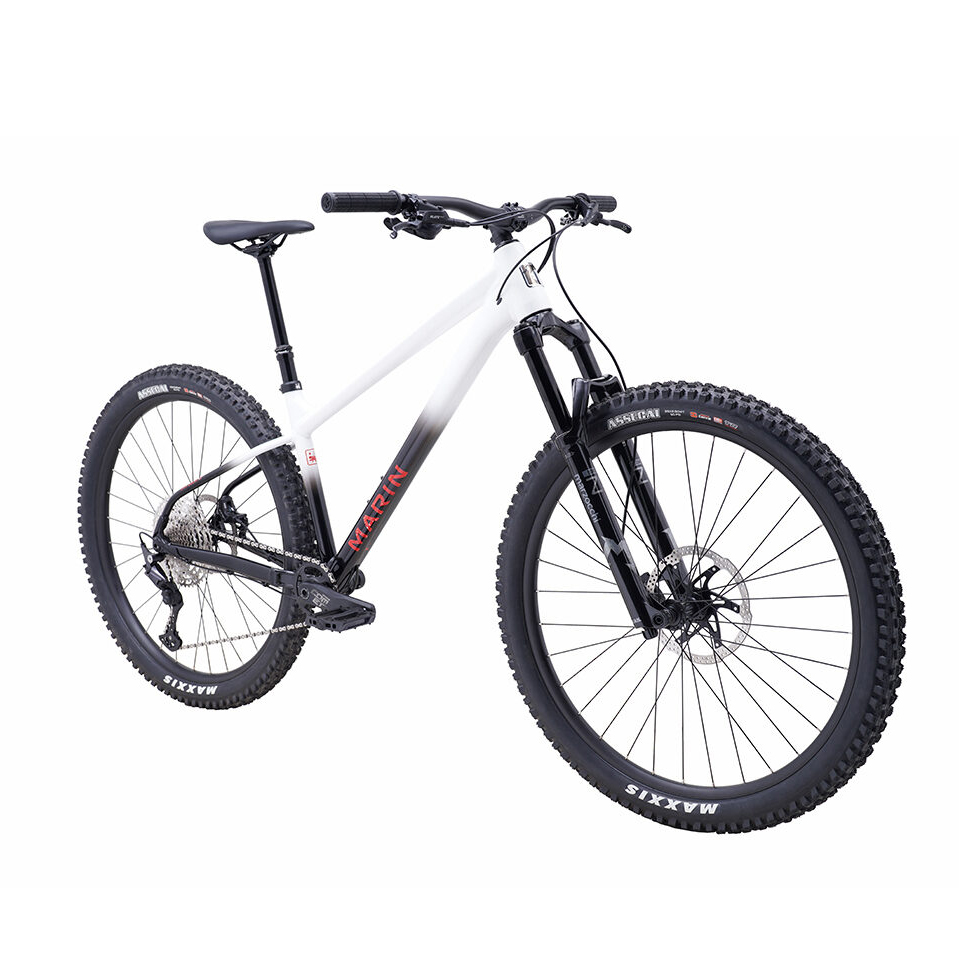

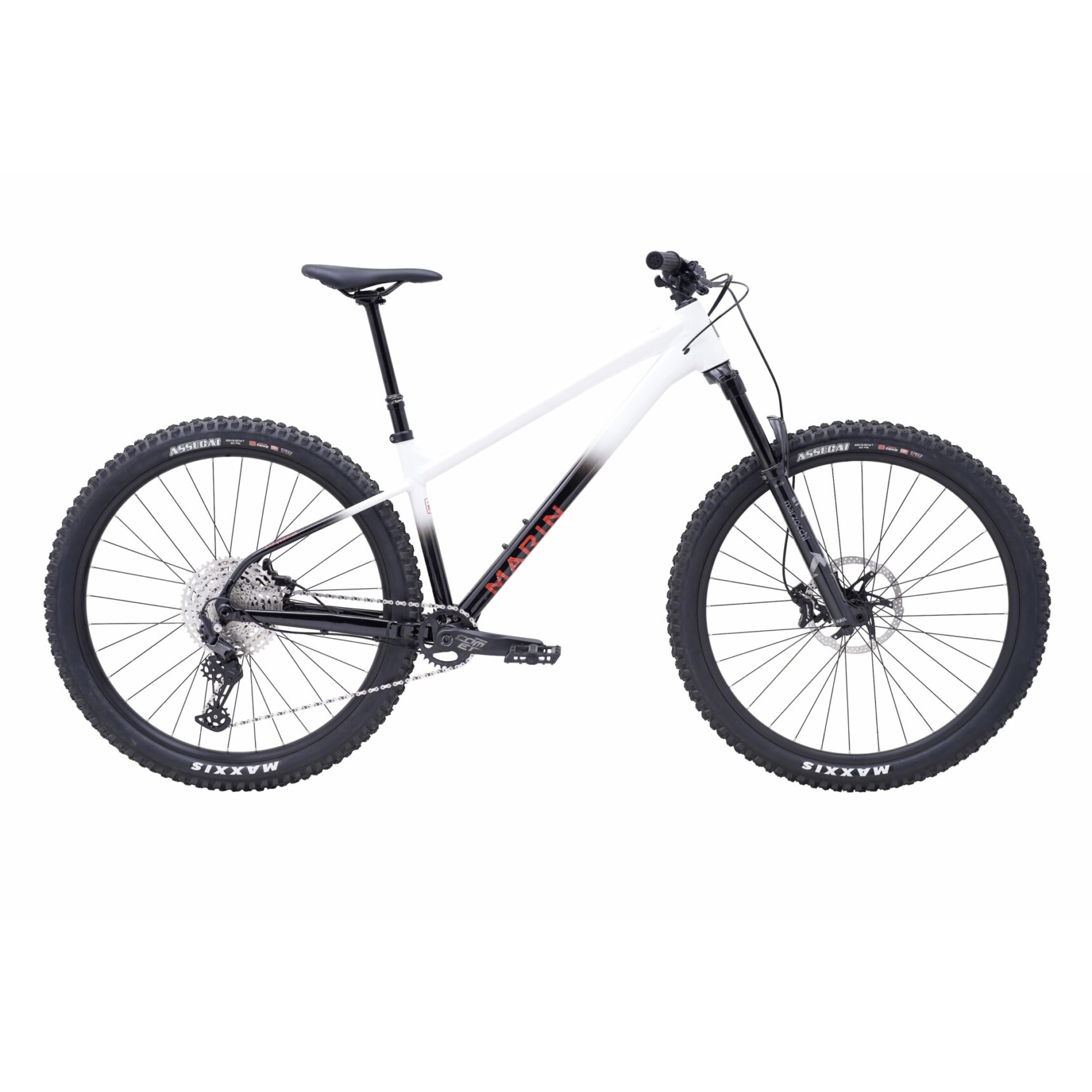

Marin San Quentin 3 29″ Bike 2023
The Aggressive Hardtail
Hardtails aren’t just for riding on fire roads and tame singletrack. They are perfect for getting rowdy and having fun on the descents too. The Marin San Quentin 3 29″ Bike is built for aggressive trail riding. It has a Series 3 6061 aluminum frame that uses 140mm of travel on the front. The frame features internal cable routing, a threaded bottom bracket, modern trail geometry, ISCG tabs, and Boost 12x148mm dropouts on the rear.
The 3 version of the Marin San Quentin Bike comes with a Shimano Deore 12-speed drivetrain. The gearing is perfect for those steep hills and longer adventures out on the singletrack. TRP Slate EVO 4-piston hydraulic disc brakes provide excellent stopping power so you can descend with confidence. Marin Aluminum Double-Wall tubeless-ready rims are paired with Maxxis Assegai Tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the TranzX Dropper Post, you’ll be able to quickly lift and lower your saddle with the press of a button for more efficient climbing and safer descending with a lower center of gravity.
Features
- Series 3 6061 aluminum frame with internal cable routing, modern trail geometry, ISCG tabs, and Boost 12x148mm dropouts on the rear
- Shimano Deore 12-speed drivetrain performs well on the singletrack
- TRP Slate EVO 4-piston hydraulic disc brakes provide excellent stopping power
- Tubeless-ready rims and tires that can be set up tubeless with the proper tires
- Marzocchi Bomber Z2 Fork with 140mm of travel and Boost hub spacing
- TranzX Dropper Post quickly lifts and lowers your saddle with the press of a lever
| Frame | Series 3 6061 Aluminum, Double-Butted, 12x148mm Thru-Axle |
|---|---|
| Fork | Marzocchi Bomber Z2, 15x110mm Boost, 140mm Travel, Kabolt Axle |
| Rear Shock | Nope |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1-1/8″ x 1-1/2″ |
| Shifters | Shimano Deore, 12-Speed, SL-6100R |
| Front Derailleur | We’ll let you know later |
| Rear Derailleur | Shimano Deore, 12-Speed SGS |
| Crankset | FSA Comet Modular 1x, 32T Narrow Wide, Boost Spacing |
| Bottom Bracket | FSA MegaExo 73mm BSA |
| Chain | KMC X-12 Silver and Black |
| Cassette | SunRace 10-51T, MicroSpline, 12-Speed |
| Brakes | TRP Slate EVO 4-Piston Hydraulic Disc, 203/180mm Rotors |
| Wheelset | Marin Aluminum Double Wall, 29mm, Tubeless Compatible, Shimano Alloy Boost Hubs |
| Tires | Maxxis Assegai, 29×2.5″, MaxxTerra, EXO, Tubeless-Ready |
| Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Wide, 28mm Rise, 5° Upsweep, 9° Backsweep |
| Stem | Marin 3D Forged Alloy, 35mm |
| Grips/Bar Tape | Marin Grizzly Lock-On |
| Seatpost | TranzX YSP23JL, 30.9mm, 1x Remote, S:125, M:150, L/XL:170mm Travel |
| Seatclamp | Bolt-Type |
| Saddle | Marin Speed Concept |
| Intended Use | Trail, XC |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 330 | 380 | 410 | 420 |
| B: Effective Top Tube | 568 | 596 | 619 | 650 |
| C: Stack | 632 | 636 | 645 | 650 |
| D: Reach | 422 | 450 | 470 | 500 |
| E: BB Height | 316 | 316 | 316 | 316 |
| F: BB Drop | 50 | 50 | 50 | 50 |
| G: Head Tube Length | 115 | 120 | 125 | 130 |
| H: Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| I: Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| J: Standover Height | 650 | 683 | 688 | 695 |
| K: Chainstay Length | 430 | 430 | 430 | 430 |
| L: Wheelbase | 1182 | 1212 | 1236 | 1268 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 35 mm | 35 mm | 35 mm | 35 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’2″ – 5’5″ | 5’5″ – 5’8″ | 5’8″ – 5’11” | 5’11” – 6’2″ |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 13.0 | 15.0 | 16.1 | 16.5 |
| B: Effective Top Tube | 22.4 | 23.5 | 24.4 | 25.6 |
| C: Stack | 24.9 | 25.0 | 25.4 | 25.6 |
| D: Reach | 16.6 | 17.7 | 18.5 | 19.7 |
| E: BB Height | 12.4 | 12.4 | 12.4 | 12.4 |
| F: BB Drop | 2.0 | 2.0 | 2.0 | 2.0 |
| G: Head Tube Length | 4.5 | 4.7 | 4.9 | 5.1 |
| H: Head Tube Angle | 64.0 ° | 64.0 ° | 64.0 ° | 64.0 ° |
| I: Seat Tube Angle | 77.0 ° | 77.0 ° | 77.0 ° | 77.0 ° |
| J: Standover Height | 25.6 | 26.9 | 27.1 | 27.4 |
| K: Chainstay Length | 16.9 | 16.9 | 16.9 | 16.9 |
| L: Wheelbase | 46.5 | 47.7 | 48.7 | 49.9 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 35 mm | 35 mm | 35 mm | 35 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’2″ – 5’5″ | 5’5″ – 5’8″ | 5’8″ – 5’11” | 5’11” – 6’2″ |
