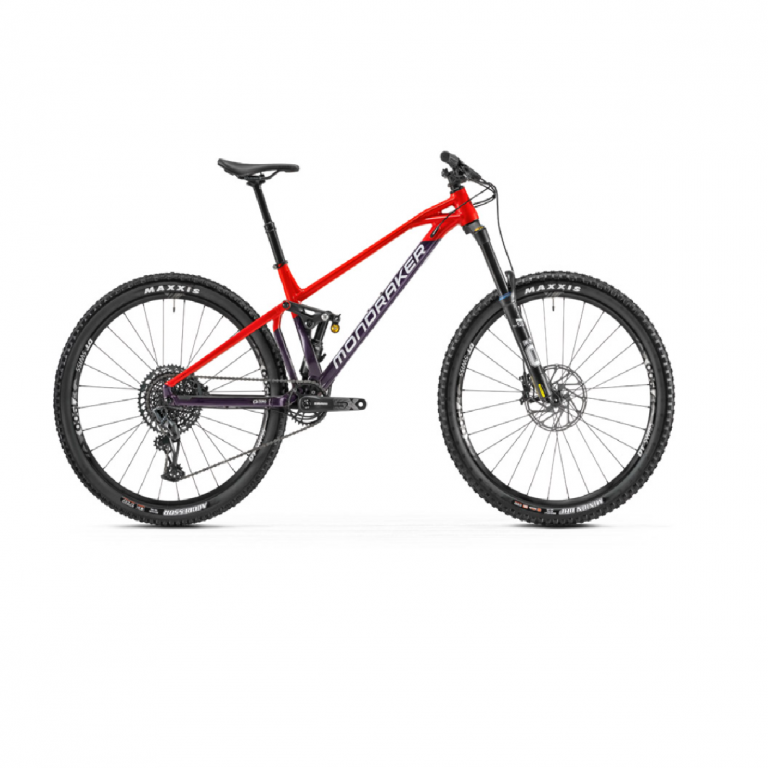

Mondraker Foxy R 29 T
$6,799.00
The Foxy R is Mondraker’s Enduro / AM bike featuring Stealth Alloy technology, forward geometry and Mondraker’s Zero Suspension System. A bike fully capable to taking your riding places you only dreamt of going.
Please note – specifications subject to change without prior notice.
| 01. FRAME | Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System |
| 02. SIZES | S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
| 03. REAR SHOCK | Ohlins TTX Air 205×62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
| 04. SHOCK SETTINGS | C20 compression, R35 rebound |
| 05. FORK | Ohlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| 06. HEADSET | Onoff Saturn tapered for 1-1/8″ to 1-1/2″ head tube, ACB sealed bearings, top 41×30.2x7x45 degreesx45 degrees, bottom 51.9x40x8x45 degreesx45 |
| 07. STEM | Onoff Sulfur FG 30mm 0 degrees, 6061 forged alloy, 31.8mm barbore |
| 08. HANDLEBAR | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 degrees backsweep, 5 degrees upsweep, 31.8mm barbore |
| 09. GRIPS | Onoff Diamond, 1lock-on, 135mm |
| 10. SEATPOST | Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm |
| 11. SADDLE | SDG BEL-AIR 3.0, LPU foam, steel rails |
| 12. FRONT BRAKE | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| 13. REAR BRAKE | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| 14. BRAKE LEVER | Sram G2 R, SwingLink, tool-free reach adjust |
| 15. RIMS | DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes |
| 16. SPOKES | DT Champion, straightpull |
| 17. FRONT HUB | DT 370, Boost 15x110mm, IS 6 bolts |
| 18. REAR HUB | DT 370, Boost 12x148mm, 18T Ratched LN system, IS 6 bolts |
| 19. FRONT TYRE | Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| 20. REAR TYRE | Maxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
| 21. CRANKSET | Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| 22. CHAINRING | 32T, CNC-machined alloy, X-SYNC 2 |
| 23. BOTTOM BRACKET | Sram DUB BSA, sealed bearings, 73mm |
| 24. PEDALS | – |
| 25. CHAIN | Sram SX Eagle, 12s, Powerlock |
| 26. FRONT DERAILLEUR | – |
| 27. REAR DERAILLEUR | Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| 28. SHIFT LEVERS | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
| 29. CASSETTE | Sram XG-1230, 11-50T, 12s |
| 30. HANGER | M068 |
