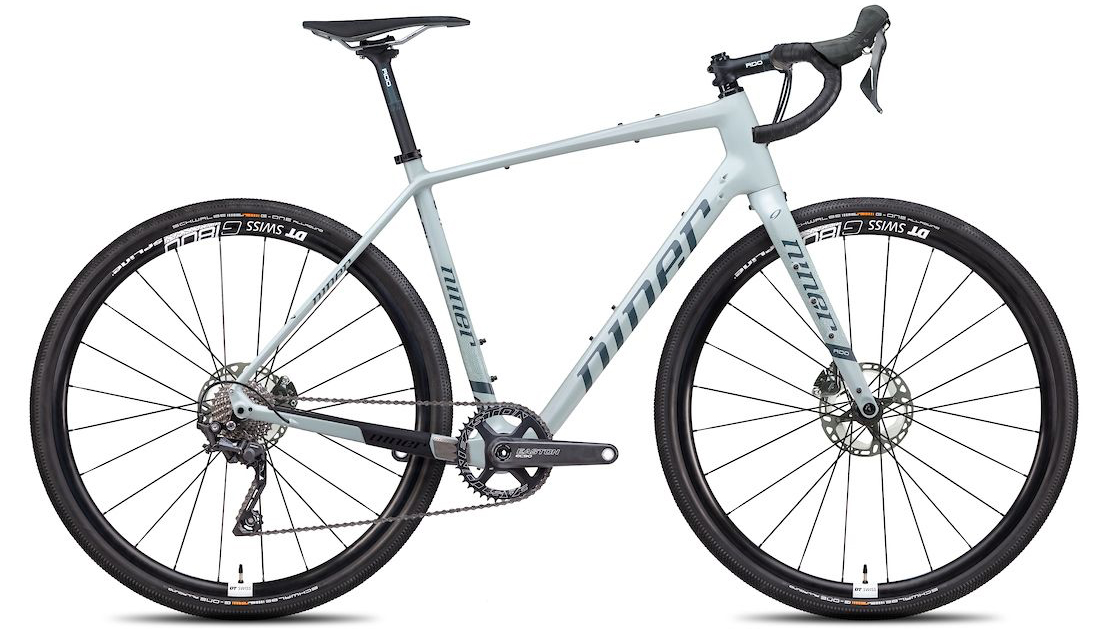

Niner RLT RDO 4-Star Bike 2023
Original price was: $3,825.00.$1,841.00Current price is: $1,841.00.
‘
Niner RLT RDO 4-Star Bike 2023
Rugged and Versatile
Road bikes are only great for the pavement, but if you want to go beyond that, you’ll want a gravel bike. Gravel bikes bridge the gap so you can ride on pavement and continue going when the dirt begins. The Niner RLT 9 RDO 4-Star Bike is designed for adventure and versatility. It has an RDO carbon frame and an RDO carbon fork. The frame is compatible with both 700 x 50c tires and 650b x 2.0″ tires. The frame also features integrated frame mounts, internal cable routing, and rack and fender mounts so you can easily transform this bike into a daily commuter or touring bike.
The 4-Star version of the Niner RLT RDO comes with a Shimano GRX800 1×11-speed drivetrain. The gearing is perfect for all-day adventures, hill-climbing, and accelerating downhill. Shimano GRX800 hydraulic disc brakes provide excellent stopping power so you can descend with confidence and control. DT Swiss G 1800 Spline 25 wheels are paired with Schwalbe G-One Allround EVO Super Terrain tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the Niner RDO Carbon seatpost, you’ll have a smoother ride over rough pavement and dirt.
Features
- RDO carbon frame with integrated frame mounts, internal cable routing, and rack and fender mounts
- Shimano GRX800 1×11-speed drivetrain performs well in demanding terrain
- Shimano GRX800 hydraulic disc brakes provide confident stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- Niner RDO Carbon seatpost helps to reduce vibrations for a smoother ride
- Approximate weight: 21.3 LBS
| Frame | RDO Carbon Fiber |
|---|---|
| Fork | RDO Carbon Fiber |
| Headset | Niner Integrated IS42/28.6|IS52/40 |
| Shifters | Shimano GRX800 1×11-Speed |
| Front Derailleur | Not Today |
| Rear Derailleur | Shimano GRX800 GS 11-Speed Shadow Plus |
| Crankset | Easton EC90 Carbon, 40T |
| Bottom Bracket | Easton PF30 |
| Chain | Shimano HG601 |
| Cassette | Shimano XT M8000, 11-42T |
| Brakes | Shimano GRX800 Hydraulic Disc, 160mm Rotors |
| Wheelset | DT Swiss G 1800 Spline 25, Thru-Axle Hubs |
| Tires | Schwalbe G-One Allround EVO Super Terrain, TLR, ADDIX 700x45mm |
| Handlebar | Easton EA50 AX |
| Stem | Niner RDO |
| Grips/Bar Tape | Niner Bar Tape |
| Seatpost | Niner RDO Carbon, 400mm |
| Seatclamp | Single-Bolt |
| Saddle | Niner Custom w/CRN-TI Rails |
| Intended Use | Gravel, Adventure, Touring |
Note: Components are subject to change without notice.
| Size | 47 | 50 | 53 | 56 | 59 | 62 |
|---|---|---|---|---|---|---|
| A: Seat Tube Length | 430 | 460 | 490 | 520 | 550 | 580 |
| B: Effective Top Tube | 510 | 525 | 545 | 565 | 585 | 605 |
| C: Stack | 535 | 556 | 577 | 592 | 613 | 634 |
| D: Reach | 362 | 366 | 374 | 384 | 398 | 405 |
| E: BB Height | – | – | – | – | – | – |
| F: BB Drop | 75 | 75 | 75 | 70 | 70 | 70 |
| G: Head Tube Length | 105 | 125 | 145 | 165 | 185 | 205 |
| H: Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° |
| I: Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| J: Standover Height | 693 | 731 | 754 | 780 | 804 | 827 |
| K: Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| L: Wheelbase | 1000 | 1007 | 1017 | 1030 | 1045 | 1054 |
| Frame Size | 47 | 50 | 53 | 56 | 59 | 62 |
|---|---|---|---|---|---|---|
| Rider Height | 4’11” – 5’3″ 150 – 160 cm |
5’2″ – 5’6″ 157 – 168 cm |
5’5″ – 5’9″ 165 – 175 cm |
5’8″ – 6’0″ 173 – 183 cm |
5’11” – 6’3″ 180 – 191 cm |
6’2″ – 6’6″ 188 – 198 cm |
| Size | 47 | 50 | 53 | 56 | 59 | 62 |
|---|---|---|---|---|---|---|
| A: Seat Tube Length | 16.9 | 18.1 | 19.3 | 20.5 | 21.7 | 22.8 |
| B: Effective Top Tube | 20.1 | 20.7 | 21.5 | 22.2 | 23.0 | 23.8 |
| C: Stack | 21.1 | 21.9 | 22.7 | 23.3 | 24.1 | 25.0 |
| D: Reach | 14.3 | 14.4 | 14.7 | 15.1 | 15.7 | 15.9 |
| E: BB Height | – | – | – | – | – | – |
| F: BB Drop | 3.0 | 3.0 | 3.0 | 2.8 | 2.8 | 2.8 |
| G: Head Tube Length | 4.1 | 4.9 | 5.7 | 6.5 | 7.3 | 8.1 |
| H: Head Tube Angle | 70.0 ° | 70.5 ° | 71.0 ° | 71.5 ° | 72.0 ° | 72.5 ° |
| I: Seat Tube Angle | 74.5 ° | 74.0 ° | 73.5 ° | 73.0 ° | 73.0 ° | 72.5 ° |
| J: Standover Height | 27.3 | 28.8 | 29.7 | 30.7 | 31.7 | 32.6 |
| K: Chainstay Length | 16.9 | 16.9 | 16.9 | 16.9 | 16.9 | 16.9 |
| L: Wheelbase | 39.4 | 39.6 | 40.0 | 40.6 | 41.1 | 41.5 |
| Frame Size | 47 | 50 | 53 | 56 | 59 | 62 |
|---|---|---|---|---|---|---|
| Rider Height | 4’11” – 5’3″ 150 – 160 cm |
5’2″ – 5’6″ 157 – 168 cm |
5’5″ – 5’9″ 165 – 175 cm |
5’8″ – 6’0″ 173 – 183 cm |
5’11” – 6’3″ 180 – 191 cm |
6’2″ – 6’6″ 188 – 198 cm |
Love this Product?
CALIFORNIA PROPOSITION 65 WARNING: This product can expose you to chemicals including (Cadmium, Phthalates, Bisphenol, Nickel (Metallic), di(2-ethylhexyl)phthalate “DEHP”), which is known to the State of California to cause cancer and/or cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
| Color |
Blood Red/ Silver |
|---|---|
| Size |
53cm ,56cm ,59cm |
