Orbea Gain M30 E-bike 2024
Original price was: $4,760.00.$3,439.00Current price is: $3,439.00.
‘

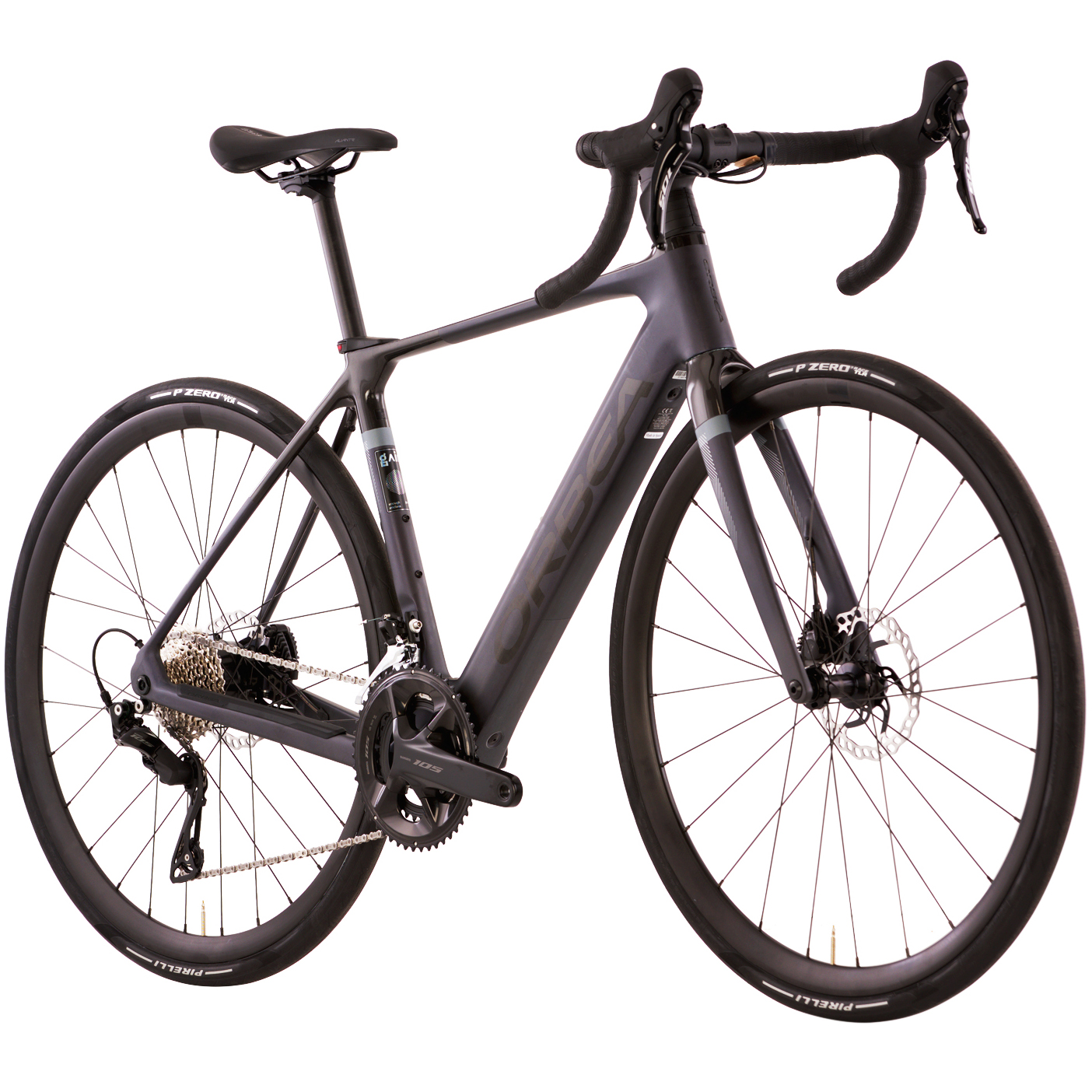

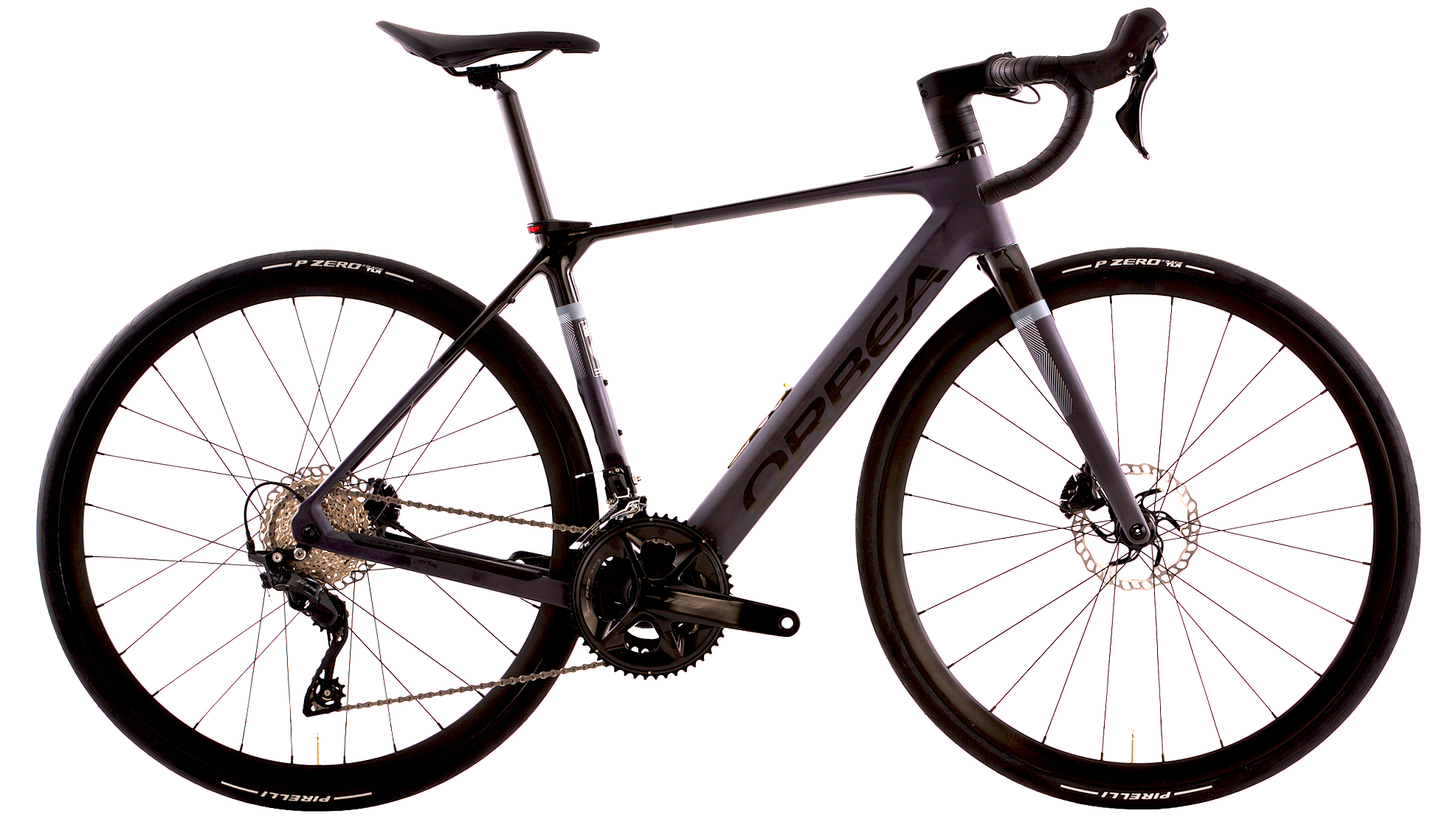

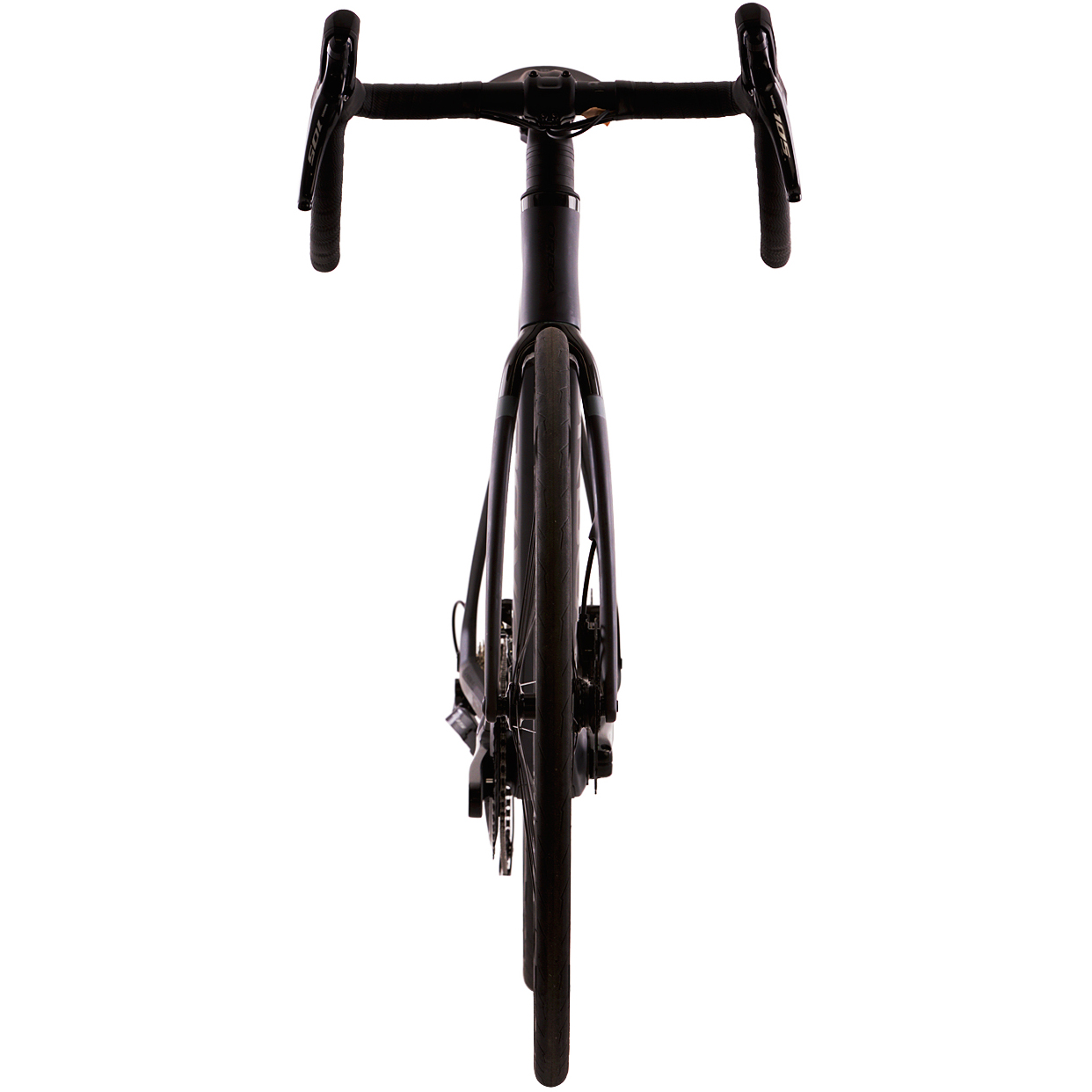

Orbea Gain M30 E-Bike
All Gain, No Pain
E-bikes are a great way to get around. With the pedal assistance, those steep hills will feel flatter, longer distances will feel shorter, and extra gear on your bike will feel lighter. The Orbea Gain M30 E-Bike brings enough power to turn gravity down a bit but not dominate the ride or remove the satisfaction. The natural assistance blends invisibly into the background, leaving you feeling like you are fitter than ever. The Carbon OMR Frame uses a Gain OMR Carbon Fork. The frame has an integrated seat clamp with a STVZO light and has clearance for up to 700x35mm tires. The frame also features thru-axles, flat-mount disc brakes, and internal cable routing.

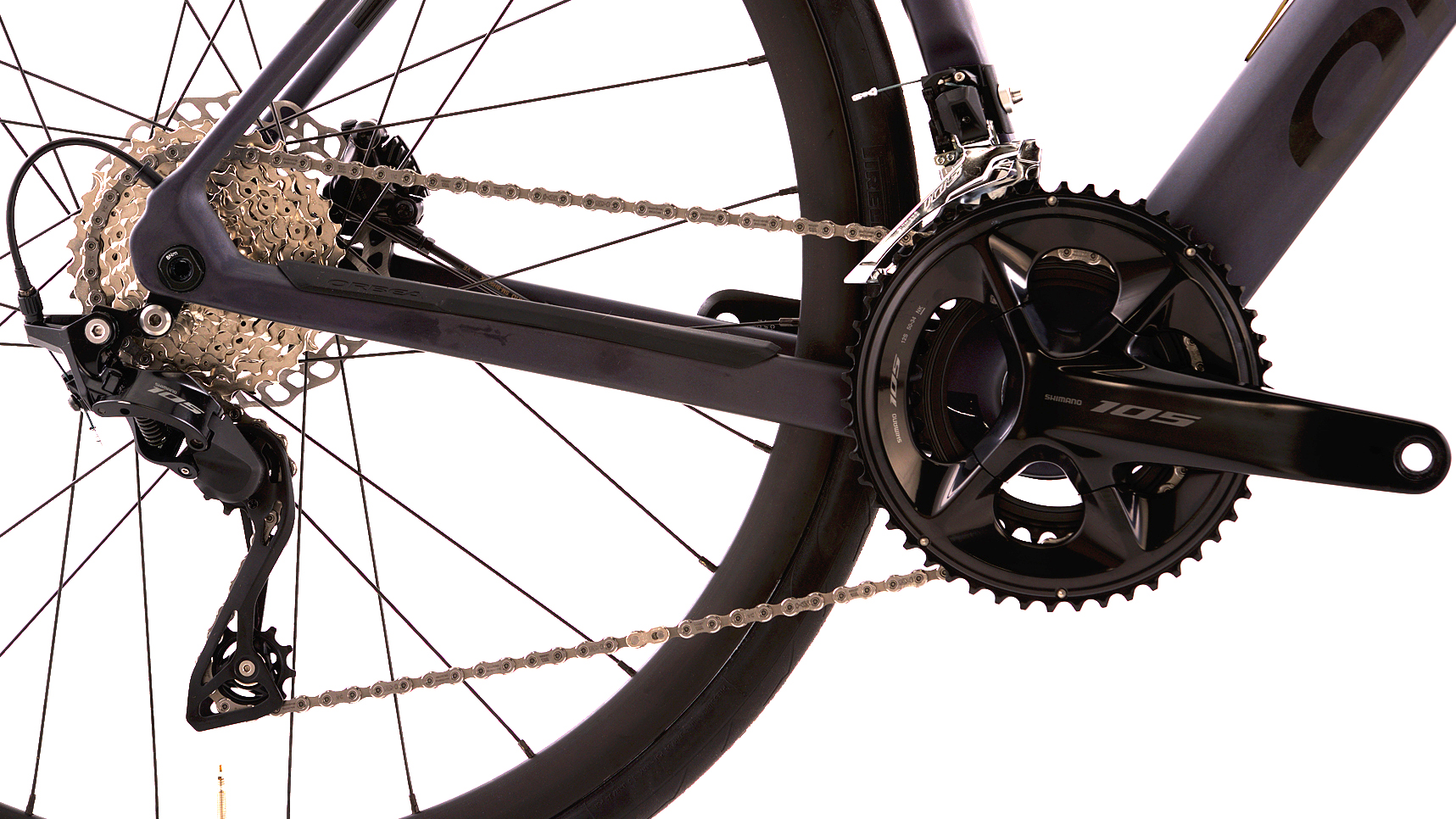

The M30 version of the Orbea Gain comes with a Shimano 105 R7100 2×12-speed drivetrain. With a 34/50T chainring combo up front and an 11-34T cassette on the rear, you’ll have no issues climbing, riding long distances, or sprinting to the finish of your ride. Shimano R7170 hydraulic disc brakes provide excellent stopping power so you can descend under control. Alloy tubeless-ready wheels are paired with Pirelli P Zero Race SmartEVO TLR tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the SP 0.2 Carbon Seatpost, you’ll have a smoother ride over rough terrain than an aluminum seatpost.
Features
- OMR Carbon Frame with clearance for up to 35mm tires, thru-axles, and internal cable routing
- Shimano 105 2×12-speed drivetrain performs well in all riding conditions
- Shimano 105 hydraulic disc brakes provide excellent stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- Carbon seatpost for a smoother ride over bumps
| Frame | OMR Carbon Fiber |
|---|---|
| Fork | Gain OMR Carbon |
| Rear Shock | Nope |
| Headset | FSA 1-1/2″ Integrated Aluminum Cup |
| Shifters | Shimano R7120, 2×12-Speed |
| Front Derailleur | Shimano 105 R7100 |
| Rear Derailleur | Shimano 105 R7100, 12-Speed |
| Crankset | Shimano 105 R7100, 34/50T |
| Bottom Bracket | – |
| Chain | Shimano M7100 |
| Cassette | Shimano 105 R7100, 11-34T |
| Brakes | Shimano R7170 Hydraulic Disc |
| Wheelset | Alloy Tubeless 21c Rims, Orbea Thru Axle 12×100/12x142mm Hubs |
| Tires | Pirelli P Zero Race SmartEVO TLR, 700x30mm |
| Handlebar | OC Road Performance RP21 Alu SL, 80mm Reach, 125mm Drop |
| Stem | OC Road Performance RP10, -8° |
| Grips/Bar Tape | Orbea Anti-Slip/Shockproof |
| Seatpost | SP 0.2 Carbon, 27.2mm, Setback 20mm |
| Seatclamp | Bolt-Type, COB LED, on/off, 12-Lumen, STVZO |
| Saddle | Fizik Aliante R5 |
| Intended Use | Gravel, Commuter, Road |
| Motor | Mahle Motor Hub X20 ALC |
| Battery | Mahle iX350 36V 353Wh |
| Display | Mahle Pulsar One Monochrome ANT+ LEV |
Note: Components are subject to change without notice.
| Size | Extra Small | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|---|
| A: Seat Tube Length | 430 | 460 | 490 | 515 | 540 | 570 |
| B: Effective Top Tube | 516 | 535 | 555 | 569 | 587 | 602 |
| C: Stack | 525 | 547 | 569 | 591 | 613 | 635 |
| D: Reach | 370 | 378 | 386 | 394 | 402 | 410 |
| E: BB Height | 263 | 263 | 263 | 265 | 265 | 265 |
| F: BB Drop | 78 | 78 | 78 | 76 | 76 | 76 |
| G: Head Tube Length | 113 | 136 | 158 | 181 | 203 | 225 |
| H: Head Tube Angle | 71 ° | 71.2 ° | 71.5 ° | 72 ° | 72.2 ° | 72.5 ° |
| I: Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| J: Standover Height | 728 | 756 | 782 | 803 | 830 | 844 |
| K: Chainstay Length | 415 | 415 | 415 | 415 | 415 | 415 |
| L: Wheelbase | 984 | 998 | 1011 | 1022 | 1035 | 1047 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 172.5 mm | 175 mm | 175 mm |
| Stem Length | 80 mm | 80 mm | 90 mm | 90 mm | 100 mm | 110 mm |
| Handlebar Width | 380 mm | 400 mm | 400 mm | 420 mm | 420 mm | 420 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|---|
| Rider Height | 61.1″ – 65.4″ 155 – 166 cm |
65.7″ – 67.7″ 167 – 172 cm |
68.1″ – 70.5″ 173 – 179 cm |
70.9″ – 72.8″ 180 – 185 cm |
73.2″ – 75.2″ 186 – 191 cm |
75.6″ – 81.5″ 192 – 207 cm |
| Size | Extra Small | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|---|
| A: Seat Tube Length | 16.9 | 18.1 | 19.3 | 20.3 | 21.3 | 22.4 |
| B: Effective Top Tube | 20.3 | 21.1 | 21.9 | 22.4 | 23.1 | 23.7 |
| C: Stack | 20.7 | 21.5 | 22.4 | 23.3 | 24.1 | 25.0 |
| D: Reach | 14.6 | 14.9 | 15.2 | 15.5 | 15.8 | 16.1 |
| E: BB Height | 10.4 | 10.4 | 10.4 | 10.4 | 10.4 | 10.4 |
| F: BB Drop | 3.1 | 3.1 | 3.1 | 3.0 | 3.0 | 3.0 |
| G: Head Tube Length | 4.4 | 5.4 | 6.2 | 7.1 | 8.0 | 8.9 |
| H: Head Tube Angle | 71.0 ° | 71.2 ° | 71.5 ° | 72.0 ° | 72.2 ° | 72.5 ° |
| I: Seat Tube Angle | 74.5 ° | 74.0 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| J: Standover Height | 28.7 | 29.8 | 30.8 | 31.6 | 32.7 | 33.2 |
| K: Chainstay Length | 16.3 | 16.3 | 16.3 | 16.3 | 16.3 | 16.3 |
| L: Wheelbase | 38.7 | 39.3 | 39.8 | 40.2 | 40.7 | 41.2 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 172.5 mm | 175 mm | 175 mm |
| Stem Length | 80 mm | 80 mm | 90 mm | 90 mm | 100 mm | 110 mm |
| Handlebar Width | 380 mm | 400 mm | 400 mm | 420 mm | 420 mm | 420 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|---|
| Rider Height | 61.1″ – 65.4″ 155 – 166 cm |
65.7″ – 67.7″ 167 – 172 cm |
68.1″ – 70.5″ 173 – 179 cm |
70.9″ – 72.8″ 180 – 185 cm |
73.2″ – 75.2″ 186 – 191 cm |
75.6″ – 81.5″ 192 – 207 cm |
