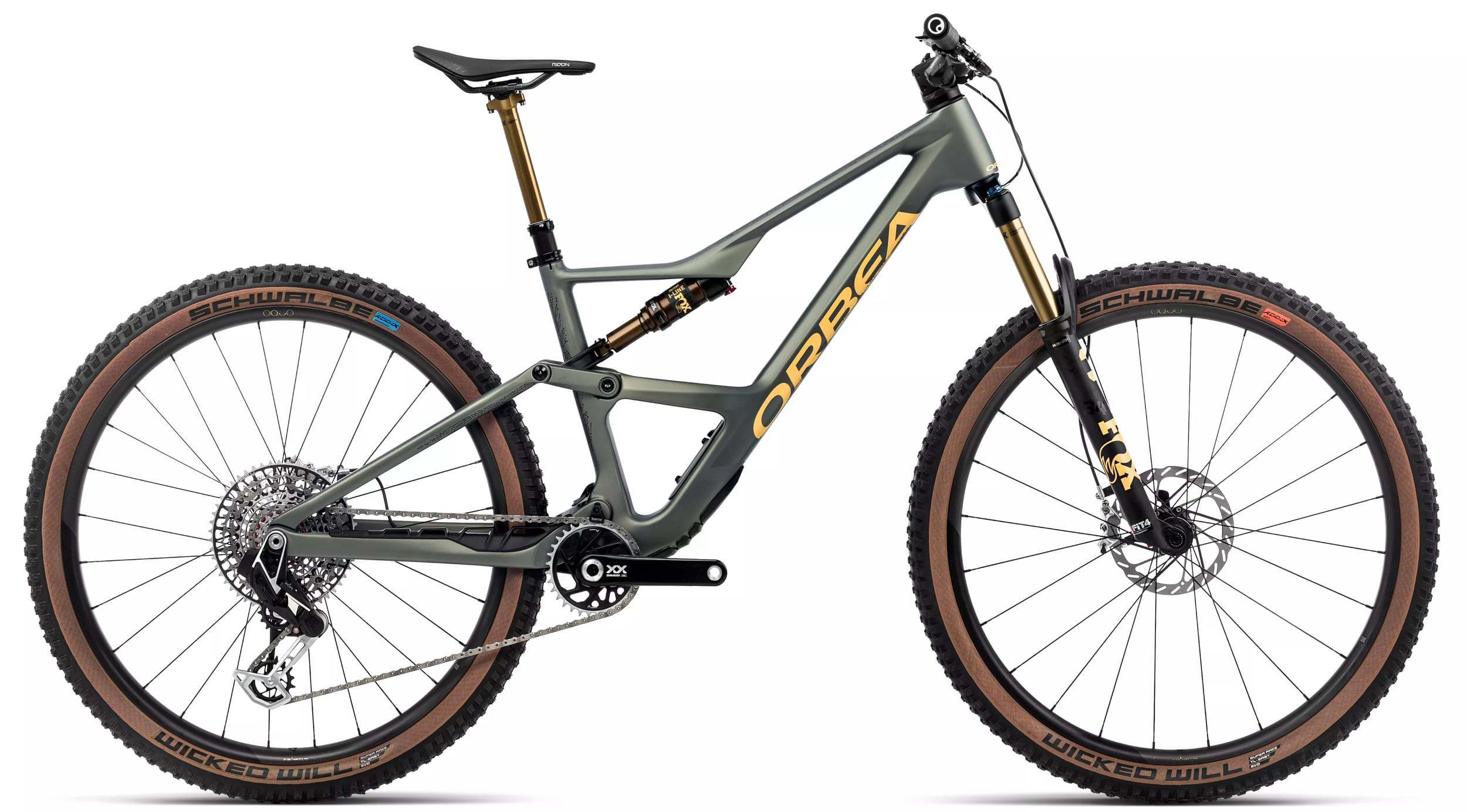

Orbea Occam Sl M-ltd 2024 Bike
Original price was: $9,010.00.$6,507.00Current price is: $6,507.00.
‘
Orbea Occam SL M-LTD 2024 Bike
The Essence of Adventure
The mountain bike you ride on should never hold you back. If you want to get rowdy on the trails, then your mountain bike should adapt to whatever adventure your trail takes you on. The Orbea Occam SL M-LTD is designed to give you control, capability, and adjustability. It has a balanced geometry that puts you in the perfect position to bring more flow to your adventures. The Carbon OMR Frame uses 29″ wheels and 140mm of travel on the front and rear. With an uninterrupted steep seat tube, you should be able to fully insert a 230mm dropper in the Occam. The frame features fully guided internal cable routing that is quieter and more reliable, integrated frame protection, an asymmetric design, and Boost hub spacing.
The M-LTD version of the Orbea Occam SL comes with a SRAM XX Eagle AXS wireless electronic 12-speed drivetrain. With a 32T chainring up front and an ultra-wide 10-52T cassette on the rear, you’ll be able to climb almost any hill you encounter and overcome any obstacle. SRAM Level Ultimate 4-piston hydraulic disc brakes provide superior stopping power so you can descend with confidence. OQUO Mountain Performance MP30LTD Carbon Wheels are paired with Schwalbe Wicked Will EVO TLE Tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the Fox Transfer SL Factory Kashima Dropper, you’ll be able to smoothly lift and lower your saddle for more efficient climbing and safer descending.
Features
- OMR Carbon Fiber Frame with fully guided internal cable routing that is quieter and more reliable, integrated frame protection, an asymmetric design, and Boost hub spacing
- SRAM XX Eagle AXS wireless 12-speed drivetrain provides a next-level performance experience
- SRAM Level Ultimate 4-piston hydraulic disc brakes offer confidence-inspiring stopping power
- Tubeless-ready carbon rims and tires for a smoother ride, better traction, and fewer flats
- Fox Transfer SL Factory Kashima Dropper smoothly lifts and lowers your saddle with the press of a lever
| Frame | OMR Carbon Fiber, Asymmetric Design |
|---|---|
| Fork | Fox 34 Float Factory 140mm Travel, FIT4, Remote-Adjust Push-Lock 2-Pos |
| Rear Shock | Fox Float Factory Remote Push-Lock EVOL Kashima, 210x50mm |
| Headset | Alloy 1-1/2”, Black Oxidated Bearing |
| Shifters | SRAM AXS Pod Ultimate, 12-Speed |
| Front Derailleur | No, Silly |
| Rear Derailleur | SRAM XX Eagle AXS, 12-Speed |
| Crankset | SRAM XX Eagle Dub Black 32t |
| Bottom Bracket | – |
| Chain | SRAM XX Eagle 12-Speed |
| Cassette | SRAM XX-1297 Eagle 10-52T, 12-Speed |
| Brakes | SRAM Level Ultimate 4-Piston Hydraulic Disc |
| Wheelset | OQUO Mountain Performance MP30LTD, Carbon Hookless Rim, DT240 S CL Boost Hubs |
| Tires | Schwalbe Wicked Will Evo TLE, 29×2.4″, Super Race, Soft Compound, Addix |
| Handlebar | OC Mountain Control MC10 Carbon, Rise 20 |
| Stem | OC Mountain Control MC10 Aluminum, SL, 0° |
| Grips/Bar Tape | Ergon GXR |
| Seatpost | Fox Transfer SL Factory Kashima Dropper, 31.6mm |
| Seatclamp | Bolt-Type |
| Saddle | Fizik Terra Ridon X1 145mm |
| Intended Use | All-Mountain, Trail |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 405 | 415 | 430 | 460 |
| B: Effective Top Tube | 570 | 596 | 622 | 649 |
| C: Stack | 611 | 615 | 624 | 633 |
| D: Reach | 440 | 465 | 490 | 515 |
| E: BB Height | 341 | 341 | 341 | 341 |
| F: BB Drop | 37 | 37 | 37 | 37 |
| G: Head Tube Length | 95 | 100 | 110 | 120 |
| H: Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| I: Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| J: Standover Height | – | – | – | – |
| K: Chainstay Length | 440 | 440 | 440 | 440 |
| L: Wheelbase | 1191 | 1218 | 1245 | 1276 |
| Crank Arm Length | 165 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 35 mm | 40 mm | 40 mm | 50 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 59.1″ – 66.9″ 150 – 170 cm |
63″ – 70.9″ 160 – 180 cm |
66.9″ – 74.8″ 170 – 190 cm |
70.9″ – 78.7″ 180 – 200 cm |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 15.9 | 16.3 | 16.9 | 18.1 |
| B: Effective Top Tube | 22.4 | 23.5 | 24.5 | 25.6 |
| C: Stack | 24.1 | 24.2 | 24.6 | 24.9 |
| D: Reach | 17.3 | 18.3 | 19.3 | 20.3 |
| E: BB Height | 13.4 | 13.4 | 13.4 | 13.4 |
| F: BB Drop | 1.5 | 1.5 | 1.5 | 1.5 |
| G: Head Tube Length | 3.7 | 3.9 | 4.3 | 4.7 |
| H: Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| I: Seat Tube Angle | 78.0 ° | 78.0 ° | 78.0 ° | 78.0 ° |
| J: Standover Height | – | – | – | – |
| K: Chainstay Length | 17.3 | 17.3 | 17.3 | 17.3 |
| L: Wheelbase | 46.9 | 48.0 | 49.0 | 50.2 |
| Crank Arm Length | 165 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 35 mm | 40 mm | 40 mm | 50 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 59.1″ – 66.9″ 150 – 170 cm |
63″ – 70.9″ 160 – 180 cm |
66.9″ – 74.8″ 170 – 190 cm |
70.9″ – 78.7″ 180 – 200 cm |
Love this Product?
CALIFORNIA PROPOSITION 65 WARNING: This product can expose you to chemicals including (Cadmium, Phthalates, Bisphenol, Nickel (Metallic), di(2-ethylhexyl)phthalate “DEHP”), which is known to the State of California to cause cancer and/or cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
| Color |
Cosmic Carbon View/ Metallic Olive Green( Gloss) |
|---|---|
| Size |
Medium |
Brand
Orbea
