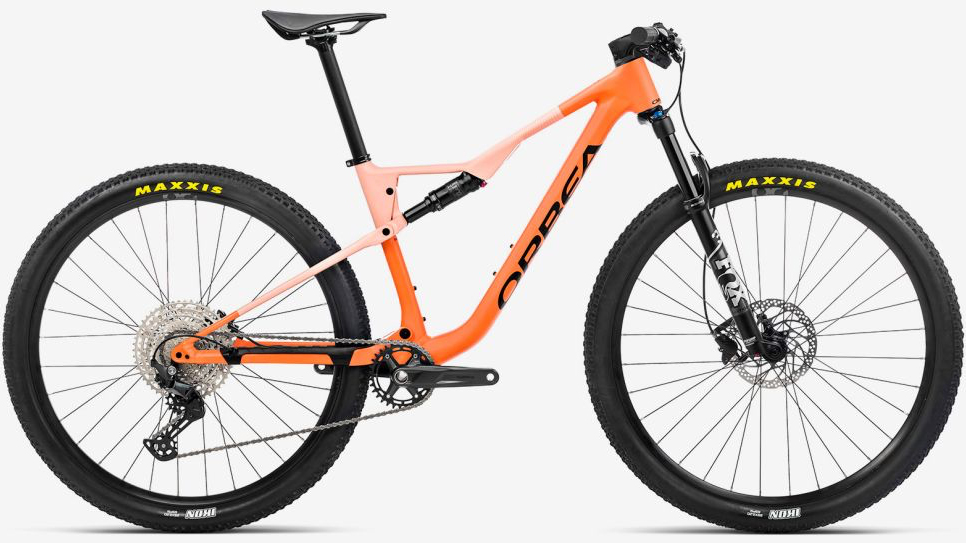

Orbea Oiz H30 Bike 2023
Original price was: $2,805.00.$1,416.00Current price is: $1,416.00.
‘
Orbea Oiz H30 Bike 2023
Control, Not Compromise
When it comes to XC riding and racing, you’ll want a mountain bike that is lightweight and has less travel so you can climb and sprint easier. The Orbea Oiz H30 Bike is built for cross-country, marathon, and light trail riding. It has a hydroformed aluminum frame that uses 120mm of travel on the front and rear. The rear uses a UFO pivotless rear triangle that removes weight and flex for a lighter and stiffer setup. The frame also features internal cable routing, Boost hub spacing on the rear, a press-fit bottom bracket, and integrated chain stay protection.
The H30 version of the Orbea Oiz comes with a Shimano Deore 12-speed drivetrain. This includes a cassette that has a hill-crushing 10-51T gear range that makes climbing and pedaling through difficult terrain much easier. Shimano MT201 hydraulic disc brakes provide highly-reliable stopping power so you can descend under control. Alloy tubeless-ready rims are paired with Maxxis Ikon non-tubeless tires. The rims can be set up tubeless with the right tires for a smoother ride, better traction, and fewer flats.
Features
- Hydroformed aluminum frame with internal cable routing, Boost hub spacing on the rear, a press-fit bottom bracket, and integrated chain stay protection
- Shimano Deore M6100 12-speed drivetrain performs well in demanding terrain
- Shimano MT201 hydraulic disc brakes provide highly reliable stopping power
- Tubeless-ready rims for a smoother ride, better traction, and fewer flats
- UFO pivotless rear triangle that removes weight and flex for a lighter and stiffer setup
| Frame | Hydroformed Aluminum |
|---|---|
| Fork | Fox 32 Float Rhythm 120mm Remote Push-Unlock 15x110mm |
| Rear Shock | Fox i-Line DPS Performance 120mm Remote Push-Unlock EVOL 190×45 |
| Headset | FSA 1-1/2″ Integrated Aluminum Cup |
| Shifters | Shimano Deore M6100, 12-Speed |
| Front Derailleur | No |
| Rear Derailleur | Shimano Deore M6100 SGS Shadow Plus |
| Crankset | Shimano MT511 32T |
| Bottom Bracket | – |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M6100 10-51T |
| Brakes | Shimano MT201 Hydraulic Disc |
| Wheelset | Alloy, Tubeless, 32H, Boost Hubs |
| Tires | Maxxis Ikon 29×2.2″ FB 60TPI Dual |
| Handlebar | Alloy, 31.8mm, Flat, 740mm Wide, 9° Sweep |
| Stem | OC Mountain Performance MP21, -6° |
| Grips/Bar Tape | The Grippiest Grips |
| Seatpost | Alloy, 31.6mm, Setback 0 |
| Seatclamp | Bolt-Type |
| Saddle | Selle Italia Model X FecAlloy Rail 145x248mm |
| Intended Use | XC, Trail |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 410 | 432 | 460 | 510 |
| B: Effective Top Tube | 568 | 594 | 619 | 645 |
| C: Stack | 596 | 600 | 610 | 619 |
| D: Reach | 425 | 450 | 472 | 496 |
| E: BB Height | 333 | 333 | 333 | 333 |
| F: BB Drop | 42 | 42 | 42 | 42 |
| G: Head Tube Length | 90 | 95 | 105 | 115 |
| H: Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| I: Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| J: Standover Height | 729 | 743 | 746 | 743 |
| K: Chainstay Length | 436 | 436 | 436 | 436 |
| L: Wheelbase | 1142 | 1169 | 1195 | 1223 |
| Crank Arm Length | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem Length | 60 mm | 75 mm | 75 mm | 90 mm |
| Handlebar Width | 740 mm | 740 mm | 740 mm | 740 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 61.1″ – 66.9″ 155 – 170 cm |
65″ – 70.9″ 165 – 180 cm |
70.1″ – 74.8″ 178 – 190 cm |
72.8″ – 78″ 185 – 198 cm |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 16.1 | 17.0 | 18.1 | 20.1 |
| B: Effective Top Tube | 22.4 | 23.4 | 24.4 | 25.4 |
| C: Stack | 23.5 | 23.6 | 24.0 | 24.4 |
| D: Reach | 16.7 | 17.7 | 18.6 | 19.5 |
| E: BB Height | 13.1 | 13.1 | 13.1 | 13.1 |
| F: BB Drop | 1.7 | 1.7 | 1.7 | 1.7 |
| G: Head Tube Length | 3.5 | 3.7 | 4.1 | 4.5 |
| H: Head Tube Angle | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° |
| I: Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| J: Standover Height | 28.7 | 29.3 | 29.4 | 29.3 |
| K: Chainstay Length | 17.2 | 17.2 | 17.2 | 17.2 |
| L: Wheelbase | 45.0 | 46.0 | 47.0 | 48.1 |
| Crank Arm Length | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem Length | 60 mm | 75 mm | 75 mm | 90 mm |
| Handlebar Width | 740 mm | 740 mm | 740 mm | 740 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 61.1″ – 66.9″ 155 – 170 cm |
65″ – 70.9″ 165 – 180 cm |
70.1″ – 74.8″ 178 – 190 cm |
72.8″ – 78″ 185 – 198 cm |
