Orbea Oiz M-PRO XO AXS T-Type Bike 2023
Original price was: $6,290.00.$4,544.00Current price is: $4,544.00.
‘

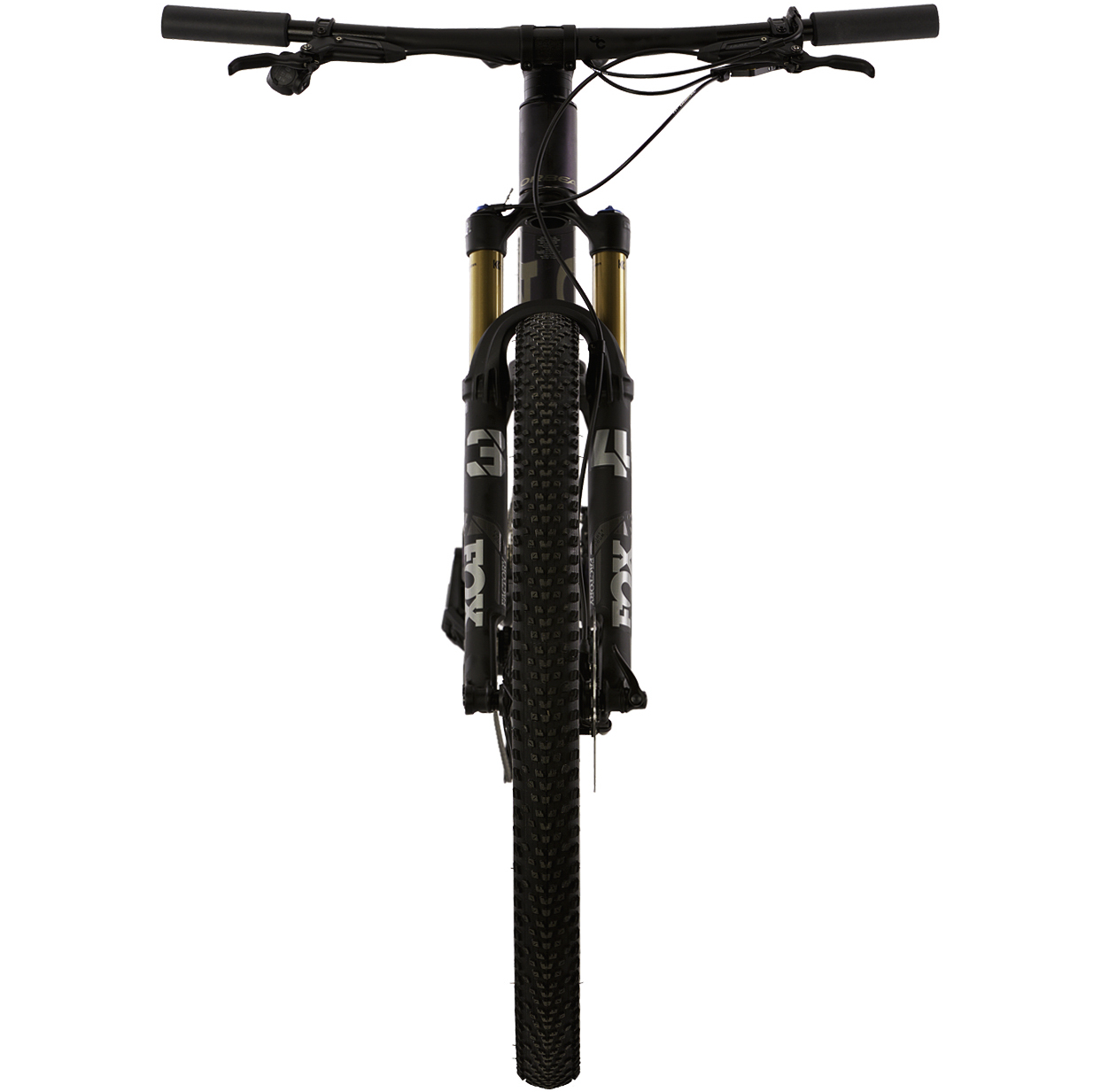

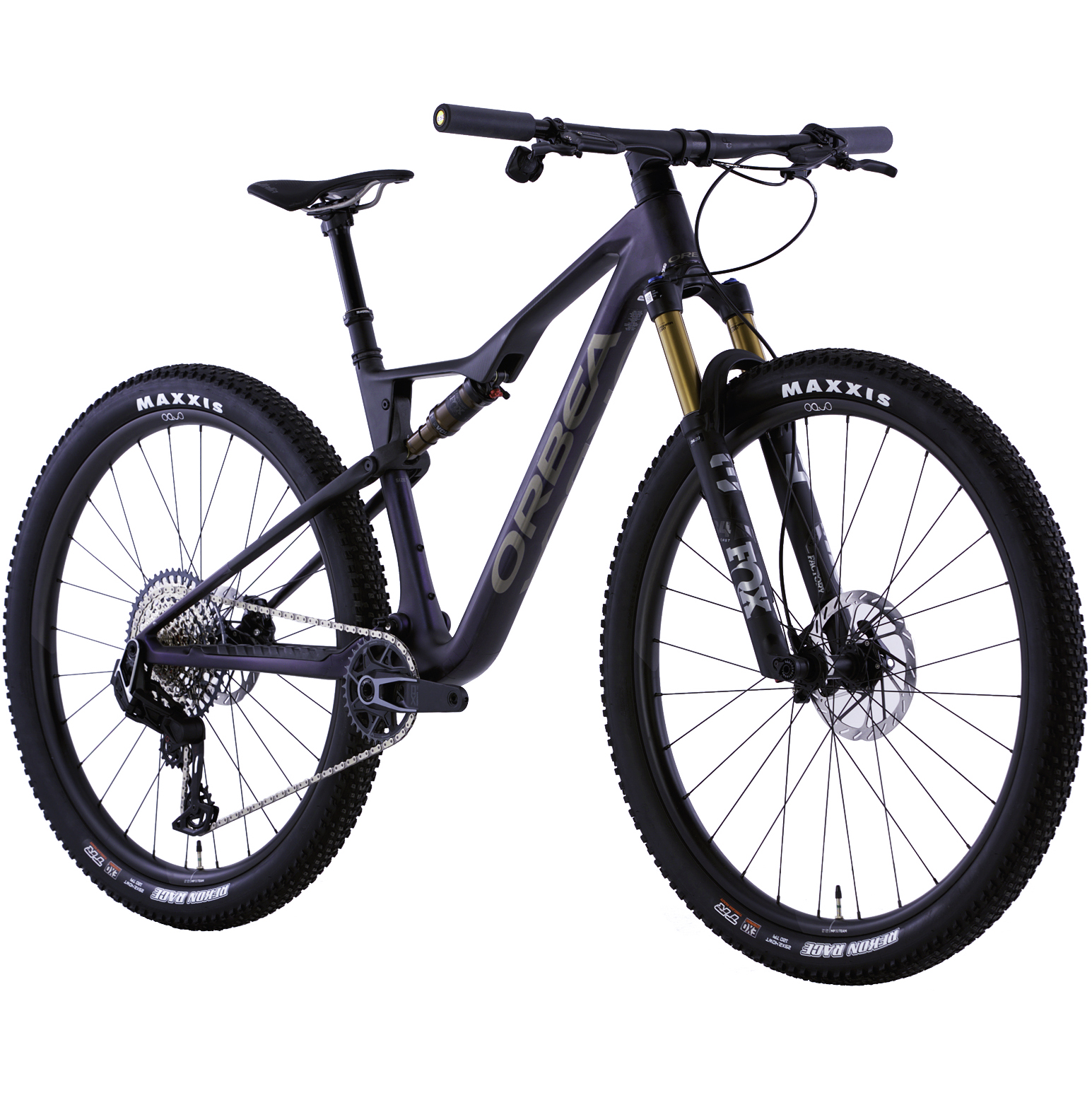

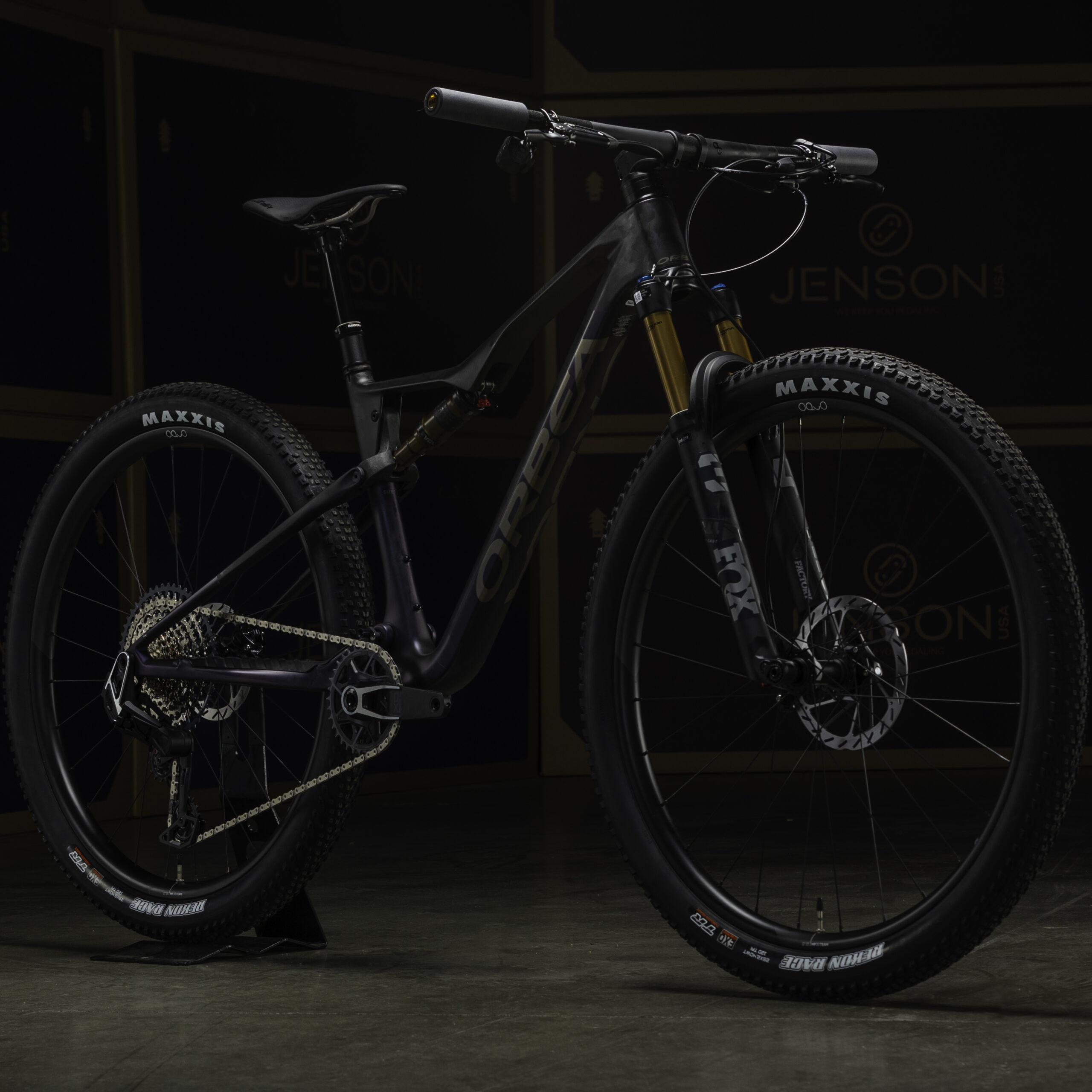

Orbea Oiz M-PRO X0 AXS T-Type Bike
Built To Fly, Built So Fly
Modern XC bikes are becoming more capable than ever. Long gone are the days of XC bikes that could only climb and sprint. These bikes are now able to tackle tough terrain and fast descents with ease. The Orbea Oiz M-PRO X0 AXS T-Type Bike isn’t down-country or trail, it’s a 120mm XC race machine that looks as good as it rides. It has modern geometry and clever suspension, designed from the start around 120mm. The OMX carbon frame uses an I-Line shock system that is the most integrated shock lock-out on the market. The SIC system routes the cables along the best path through the headset, through internal guides, and invisibly from the front to the rear with Cable Pass. The frame also features Boost hub spacing, a BSA threaded bottom bracket, and an integrated chainstay protector to prevent chain slap.

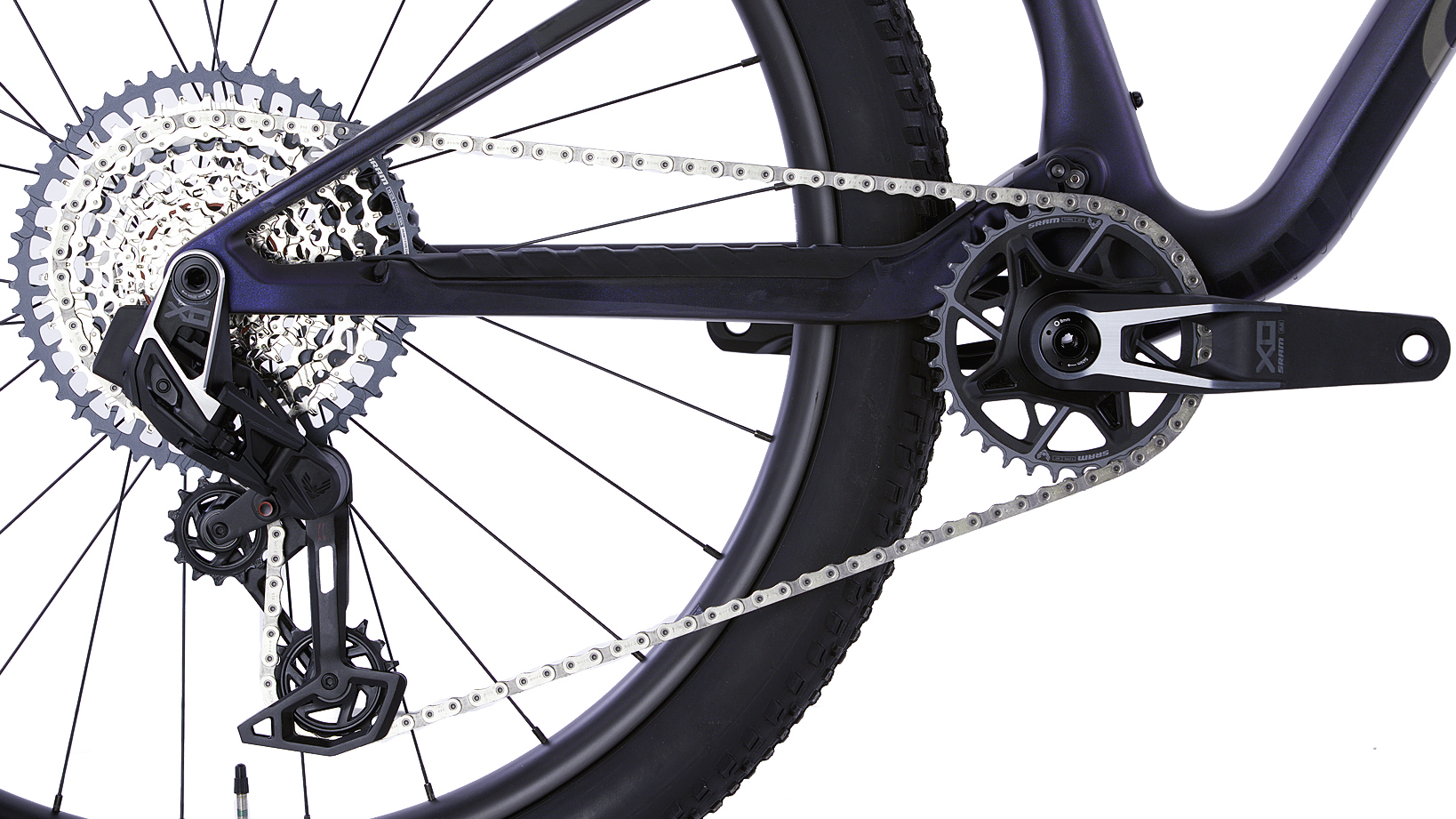

The M-PRO X0 AXS T-Type version of the Orbea Oiz comes with a SRAM X0 Eagle AXS 12-speed drivetrain. With an ultra-wide 10-52T cassette on the rear, you’ll have no issues climbing all the way to the top of the summit and getting on that podium during your next marathon race. SRAM Level Silver 2-piston hydraulic disc brakes provide exceptional stopping power so you can descend under control. OQUO Mountain Performance MP30TEAM tubeless-ready carbon fiber rims are paired with Maxxis Rekon Race Tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. Ditch them tubes! With the Fox Transfer SL Performance Dropper Post, you’ll get 125/150mm of drop so you can descend under control and climb efficiently without dismounting your bike.
Features
- OMX carbon frame with internal cable routing, I-Line suspension, Boost hub spacing, BSA threaded bottom bracket, and a chainstay protector
- SRAM X0 Eagle AXS 12-speed drivetrain performs well in tough riding conditions
- SRAM Level Silver 2-piston hydraulic disc brakes provide confidence-inspiring stopping power
- Tubeless-ready carbon rims and tires for a smoother ride, better traction, and fewer flats
- Fox Transfer SL Performance Dropper Post quickly lifts and lowers your saddle with the press of a lever
| Frame | Orbea Oiz Carbon OMX, Fiberlink, Boost, I-Line Shock |
|---|---|
| Fork | Fox 34 Float SC Factory 120mm, FIT4 Kashima Remote Push to Lock, 15x110mm |
| Rear Shock | Fox I-Line DPS Factory Kashima, 120mm Remote Push-Lock, EVOL, 190×45 |
| Headset | Alloy 1-1/2″ Black Oxidated Bearing |
| Shifters | SRAM AXS Pod Controller, 12-Speed |
| Front Derailleur | Nah this is a 1x fam |
| Rear Derailleur | SRAM X0 Eagle AXS, 12-Speed |
| Crankset | SRAM X0 Eagle DUB Black, 34T |
| Bottom Bracket | BSA |
| Chain | SRAM GX Eagle, 12-Speed |
| Cassette | SRAM GX-1275 Eagle, 10-52T |
| Brakes | SRAM Level Silver 2-Piston Hydraulic Disc |
| Wheelset | OQUO Mountain Performance MP30TEAM Carbon Hookless Rim, DT350 CL Boost Hubs |
| Tires | Maxxis Rekon Race 29×2.4″ WT 120 TPI EXO TLR |
| Handlebar | OC MP10 Mountain Performance Carbon, 760mm Wide, 9° Sweep |
| Stem | OC Mountain Performance MP10 Alu SL, -10° |
| Grips/Bar Tape | OC Lock On |
| Seatpost | Fox Transfer SL Performance Dropper, 31.6mm, 125/150mm Travel |
| Seatclamp | Bolt-Type |
| Saddle | Selle Italia SLR Boost Fill Titanium Rail 316 |
| Intended Use | XC, Racing |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 405 | 432 | 460 | 510 |
| B: Effective Top Tube | 575 | 598 | 623 | 650 |
| C: Stack | 596 | 596 | 606 | 619 |
| D: Reach | 425 | 450 | 472 | 496 |
| E: BB Height | 333 | 333 | 333 | 333 |
| F: BB Drop | 42 | 42 | 42 | 42 |
| G: Head Tube Length | 90 | 90 | 100 | 115 |
| H: Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| I: Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| J: Standover Height | 731 | 741 | 741 | 750 |
| K: Chainstay Length | 432 | 432 | 432 | 432 |
| L: Wheelbase | 1138 | 1163 | 1189 | 1219 |
| Crank Arm Length | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem Length | 60 mm | 75 mm | 75 mm | 90 mm |
| Handlebar Width | 760 mm | 760 mm | 760 mm | 760 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 61.1 – 66.9 155 – 170 cm |
65 – 70.9 165 – 180 cm |
70.1 – 74.8 178 – 190 cm |
72.8 – 78 185 – 198 cm |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 15.9 | 17.0 | 18.1 | 20.1 |
| B: Effective Top Tube | 22.6 | 23.5 | 24.5 | 25.6 |
| C: Stack | 23.5 | 23.5 | 23.9 | 24.4 |
| D: Reach | 16.7 | 17.7 | 18.6 | 19.5 |
| E: BB Height | 13.1 | 13.1 | 13.1 | 13.1 |
| F: BB Drop | 1.7 | 1.7 | 1.7 | 1.7 |
| G: Head Tube Length | 3.5 | 3.5 | 3.9 | 4.5 |
| H: Head Tube Angle | 67.0 ° | 67.0 ° | 67.0 ° | 67.0 ° |
| I: Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| J: Standover Height | 28.8 | 29.2 | 29.2 | 29.5 |
| K: Chainstay Length | 17.0 | 17.0 | 17.0 | 17.0 |
| L: Wheelbase | 44.8 | 45.8 | 46.8 | 48.0 |
| Crank Arm Length | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem Length | 60 mm | 75 mm | 75 mm | 90 mm |
| Handlebar Width | 760 mm | 760 mm | 760 mm | 760 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 61.1 – 66.9 155 – 170 cm |
65 – 70.9 165 – 180 cm |
70.1 – 74.8 178 – 190 cm |
72.8 – 78 185 – 198 cm |
