Orbea Rallon M10 Bike 2024
Original price was: $5,610.00.$4,051.00Current price is: $4,051.00.
‘

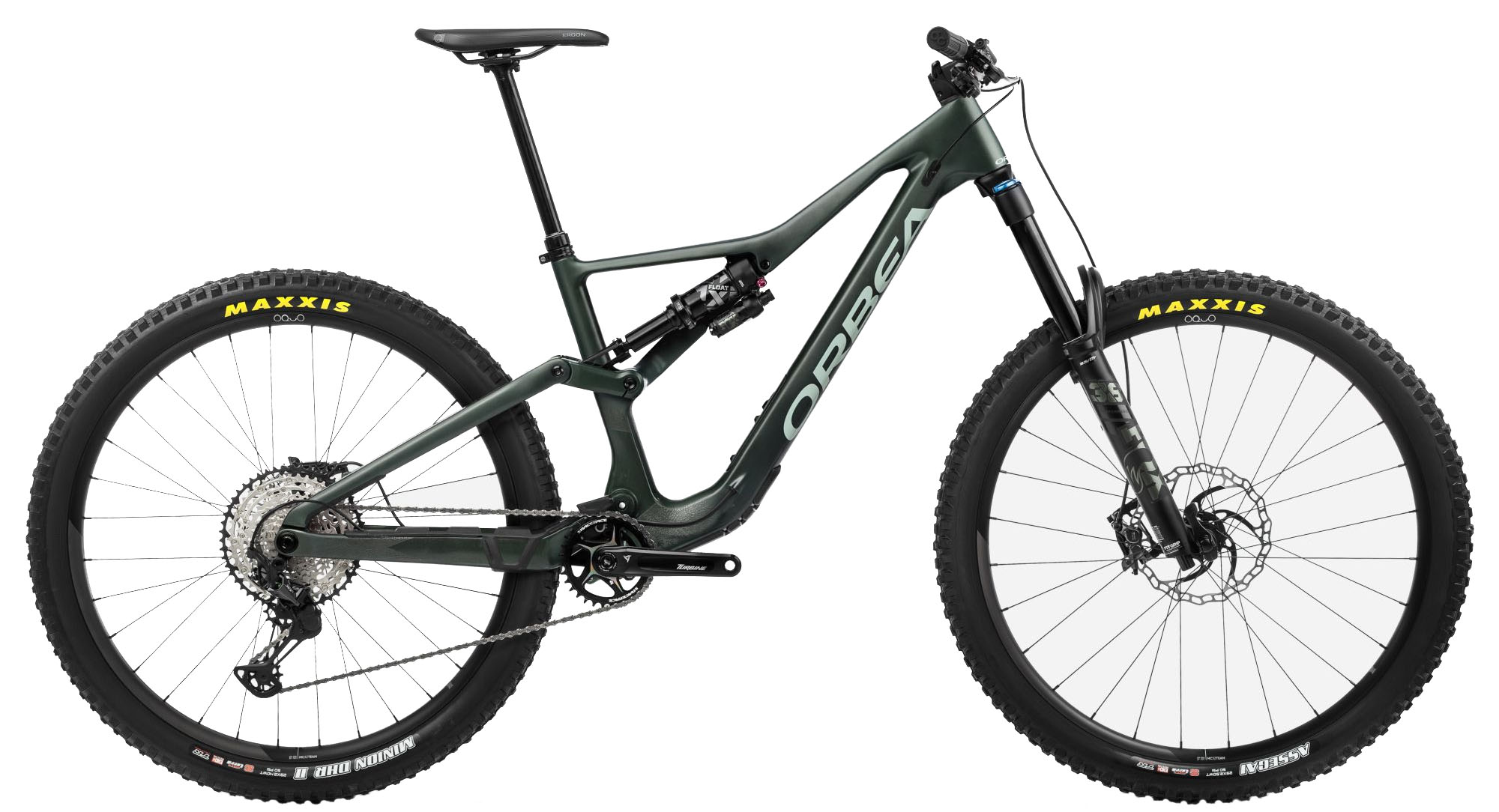

Orbea Rallon M10 Bike
Conquering The Descents
Enduro bikes are evolving. With faster bikes, stronger frames, and slacker geometry, these bikes are able to conquer the entire mountain with ease. The Orbea Rallon M10 Bike comes with a longer and slacker frame and has more standover to give more choice over frame sizing. The Rallon has a monocoque race carbon frame that uses 167mm of travel on the rear and 170mm of travel on the front. It has Advanced Dynamics suspension technology that gives a more progressive suspension curve with a more rearward axle path. The frame features Boost spacing, internal cable routing, ISCG05 mounts, Pure Enduro geometry, and large 29″ wheels.
The M10 version of the Orbea Rallon comes with a Shimano XT M8100 12-speed drivetrain. This includes a cassette that has a hill-crushing 10-51T gear range that makes climbing and pedaling through difficult terrain a breeze. Shimano XT M8120 hydraulic disc brakes provide exceptional stopping power so you can descend with confidence. OQUO Mountain Control MC32TEAM wheels are paired with Maxxis tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the OC Mountain Control MC21 Dropper Post, you’ll be able to quickly lift and lower your saddle with the press of a lever.
Features
- Carbon fiber frame with Boost spacing, internal cable routing, ISCG05 mounts, Pure Enduro geometry, and large 29″ wheels
- Shimano XT 12-speed drivetrain performs well in the most demanding terrain
- Shimano XT M8120 hydraulic disc brakes provide excellent stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- OC Mountain Control MC21 Dropper Post quickly lifts and lowers your saddle with the press of a lever
| Frame | Orbea Monocoque Race Carbon |
|---|---|
| Fork | Fox 38 Float Performance, 170mm Travel, GRIP 3-Pos, Boost |
| Rear Shock | Fox Float X Performance 2-Pos, EVOL LV Custom 230×62.5mm |
| Headset | Acros Alloy 1-1/8″ – 1-1/2″ Integrated |
| Shifters | Shimano XT M8100 I-Spec EV |
| Front Derailleur | Who? |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus |
| Crankset | Race Face Turbine 32T |
| Bottom Bracket | – |
| Chain | Shimano M7100 |
| Cassette | Shimano CS-M7100, 10-51T |
| Brakes | Shimano M8120 Hydraulic Disc |
| Wheelset | OQUO Mountain Control MC32TEAM Tubeless-Ready |
| Tires | Maxxis Assegai 29×2.5″ WT FB 3C MaxxTerra EXO+ TR / Minion DHR II 29×2.4″ WT FB 3C MaxxTerra EXO+ TR |
| Handlebar | OC Mountain Control MC20 Alu SL, 20mm Rise, 800mm Wide |
| Stem | OC Mountain Control MC20, 0° |
| Grips/Bar Tape | OC Lock-On |
| Seatpost | OC Mountain Control MC21, 31.6mm, S:150, M/L:170, XL:200mm Travel |
| Seatclamp | Bolt-Type |
| Saddle | Ergon SM Enduro |
| Intended Use | Enduro |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 415 | 415 | 435 | 460 |
| B: Effective Top Tube | 572 | 599 | 626 | 653 |
| C: Stack | 619 | 628 | 637 | 646 |
| D: Reach | 435 | 460 | 485 | 510 |
| E: BB Height | 343 | 343 | 343 | 343 |
| F: BB Drop | 28 | 28 | 28 | 28 |
| G: Head Tube Length | 90 | 100 | 110 | 120 |
| H: Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| I: Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| J: Standover Height | 737 | 737 | 754 | 774 |
| K: Chainstay Length | 440 | 440 | 440 | 440 |
| L: Wheelbase | 1202 | 1231 | 1260 | 1290 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 45 mm | 45 mm | 45 mm | 45 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 59.1 – 66.9 150 – 170 cm |
63 – 70.9 160 – 180 cm |
66.9 – 74.8 170 – 190 cm |
70.9 – 78.7 180 – 200 cm |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 16.3 | 16.3 | 17.1 | 18.1 |
| B: Effective Top Tube | 22.5 | 23.6 | 24.6 | 25.7 |
| C: Stack | 24.4 | 24.7 | 25.1 | 25.4 |
| D: Reach | 17.1 | 18.1 | 19.1 | 20.1 |
| E: BB Height | 13.5 | 13.5 | 13.5 | 13.5 |
| F: BB Drop | 1.1 | 1.1 | 1.1 | 1.1 |
| G: Head Tube Length | 3.5 | 3.9 | 4.3 | 4.7 |
| H: Head Tube Angle | 64.0 ° | 64.0 ° | 64.0 ° | 64.0 ° |
| I: Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| J: Standover Height | 29.0 | 29.0 | 29.7 | 30.5 |
| K: Chainstay Length | 17.3 | 17.3 | 17.3 | 17.3 |
| L: Wheelbase | 47.3 | 48.5 | 49.6 | 50.8 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 45 mm | 45 mm | 45 mm | 45 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 59.1 – 66.9 150 – 170 cm |
63 – 70.9 160 – 180 cm |
66.9 – 74.8 170 – 190 cm |
70.9 – 78.7 180 – 200 cm |
Love this Product?
CALIFORNIA PROPOSITION 65 WARNING: This product can expose you to chemicals including (Cadmium, Phthalates, Bisphenol, Nickel (Metallic), di(2-ethylhexyl)phthalate “DEHP”), which is known to the State of California to cause cancer and/or cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
| Color |
Gloss Mars Red/ Matt Black |
|---|---|
| Size |
Extra Large ,Large ,Medium ,Small |
Brand
Orbea
