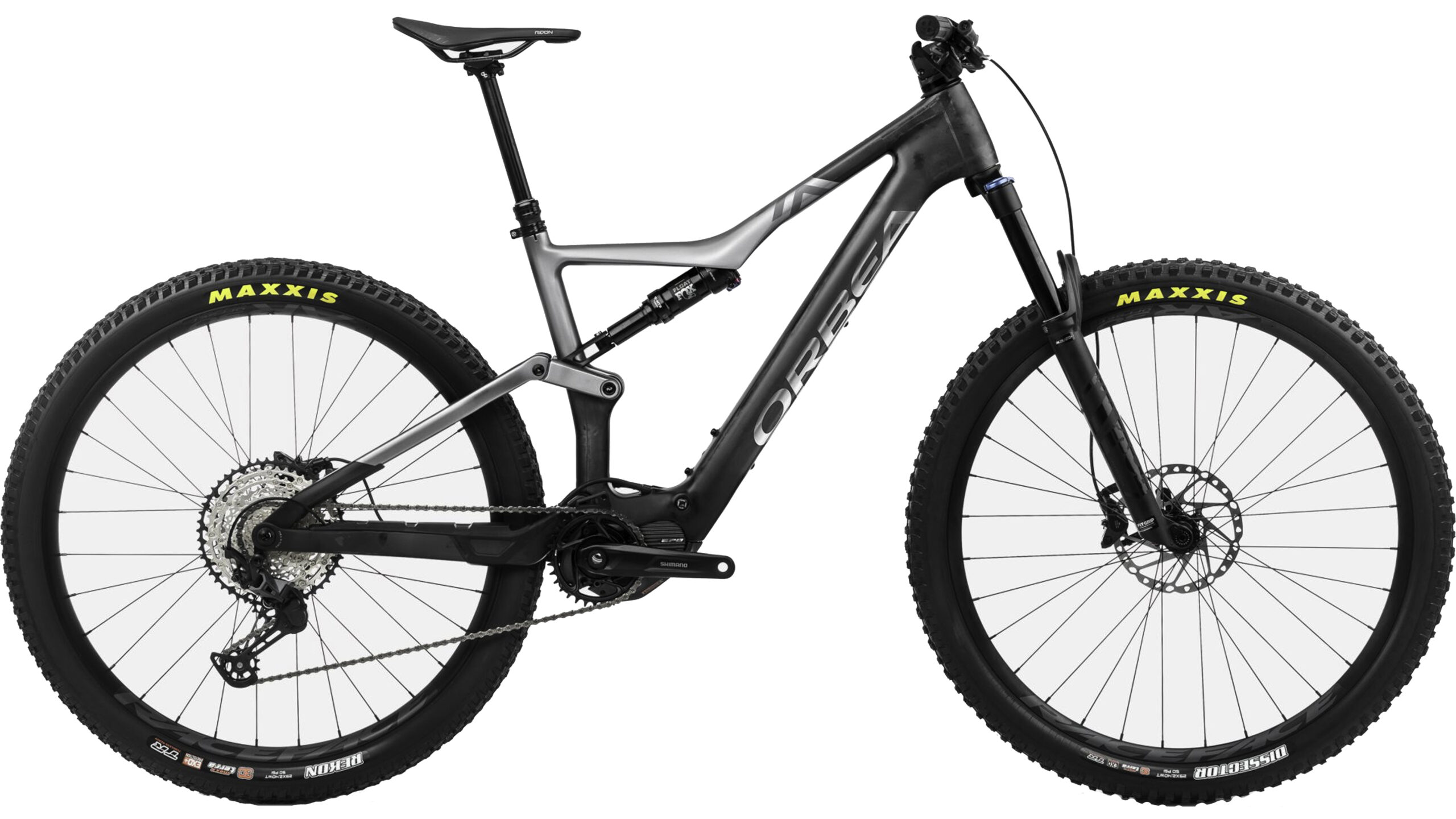

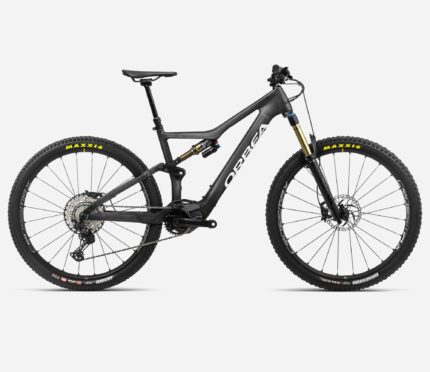

Orbea RISE MTEAM 20MPH E-Bike 2022
Original price was: $8,925.00.$4,833.00Current price is: $4,833.00.
‘
Orbea Rise M-Team 20mph Bike 2022
Rising Higher and Higher
E-bikes are designed to remove many of the barriers that keep people from riding a bike. They allow you to climb steeper hills with ease and ride longer so you can focus on the fun part of riding a mountain bike. The Orbea Rise M-Team 20mph E-Bike is a machine designed to expand your trail experience and bring you closer to the moment. It has an OMR Carbon frame that uses 140mm of travel on the rear and 150mm of travel on the front. It features a Shimano EP8-RS drive unit and an integrated battery. The frame also comes with internal cable routing, integrated frame protection, and a chain guide.
The M-Team version of the Orbea Rise comes with a Shimano XTR M9100 12-speed drivetrain. This includes a cassette that has a hill-crushing 10-51T gear range that makes climbing and pedaling through demanding terrain much easier. Shimano XTR M9120 hydraulic disc brakes provide superior stopping power so you can descend with confidence. RaceFace Turbine-R30 TLR wheels are paired with Maxxis Dissector and Rekon tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the Fox Transfer Factory Kashima Dropper, you’ll be able to smoothly lift and lower your saddle with the press of a lever.
Features
- Carbon OMR frame with internal cable routing, integrated frame protection, and a chain guide
- Shimano XTR 12-speed drivetrain performs exceptionally well in demanding conditions
- Shimano XTR hydraulic disc brakes provide confidence-inspiring stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- Fox Transfer Factory Kashima Dropper smoothly lifts and lowers your saddle with the press of a lever
- Shimano EP8-RS motor and Orbea RS Internal 360Wh battery provide up to 20mph of pedal assistance
| Frame | Carbon OMR |
|---|---|
| Fork | Fox 36 Float Factory Kashima, 150mm Travel, GRIP2 |
| Rear Shock | Fox Float X Factory 2-Pos EVOL LV Kashima, 210x55mm |
| Headset | Acros Alloy 1-1/8″ – 1-1/2″ Integrated |
| Shifters | Shimano XTR M9100, 12-Speed |
| Front Derailleur | Nope |
| Rear Derailleur | Shimano XTR M9100 SGS Shadow Plus |
| Crankset | Shimano STEPS EM900, 32T |
| Bottom Bracket | – |
| Chain | Shimano CN-9100 |
| Cassette | Shimano XTR M9100, 10-51T |
| Brakes | Shimano XTR M9120 Hydraulic Disc, 180mm Rotors |
| Wheelset | RaceFace Turbine-R30 TLR, Boost Hubs |
| Tires | Maxxis Dissector 29×2.4″ 3C MaxxTerra Exo TLR / Rekon 29×2.4″ 3C MaxxTerra Exo+ TLR |
| Handlebar | RaceFace Next R 35, 20mm Rise, 780mm Wide |
| Stem | RaceFace Turbine R 35mm Clamp |
| Grips/Bar Tape | Orbea |
| Seatpost | Fox Transfer Factory Kashima Dropper, 31.6mm |
| Seatclamp | Bolt-Type |
| Saddle | Fizik Taiga Kium Rail |
| Intended Use | All-Mountain |
| Motor | Shimano EP8-RS, 20mph |
| Battery | Orbea RS Internal 360Wh |
| Display | Shimano EW-EN100 Junction |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 381 | 419 | 457 | 508 |
| B: Effective Top Tube | 565 | 592 | 619 | 649 |
| C: Stack | 604 | 613 | 627 | 646 |
| D: Reach | 425 | 450 | 474 | 500 |
| E: BB Height | 336 | 336 | 336 | 336 |
| F: BB Drop | 35 | 35 | 35 | 35 |
| G: Head Tube Length | 95 | 105 | 120 | 140 |
| H: Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| I: Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| J: Standover Height | 710 | 736 | 766 | 776 |
| K: Chainstay Length | 445 | 445 | 445 | 445 |
| L: Wheelbase | 1180 | 1205 | 1229 | 1255 |
| Crank Arm Length | 165 mm | 165 mm | 170 mm | 170 mm |
| Stem Length | 45 mm | 45 mm | 55 mm | 55 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 59.1″ – 65″ 150 – 165 cm |
63″ – 68.9″ 160 – 175 cm |
66.9″ – 72.8″ 170 – 185 cm |
70.9″ – 78″ 180 – 198 cm |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 15.0 | 16.5 | 18.0 | 20.0 |
| B: Effective Top Tube | 22.2 | 23.3 | 24.4 | 25.6 |
| C: Stack | 23.8 | 24.1 | 24.7 | 25.4 |
| D: Reach | 16.7 | 17.7 | 18.7 | 19.7 |
| E: BB Height | 13.2 | 13.2 | 13.2 | 13.2 |
| F: BB Drop | 1.4 | 1.4 | 1.4 | 1.4 |
| G: Head Tube Length | 3.7 | 4.1 | 4.7 | 5.5 |
| H: Head Tube Angle | 66.0 ° | 66.0 ° | 66.0 ° | 66.0 ° |
| I: Seat Tube Angle | 77.0 ° | 77.0 ° | 77.0 ° | 77.0 ° |
| J: Standover Height | 28.0 | 29.0 | 30.2 | 30.6 |
| K: Chainstay Length | 17.5 | 17.5 | 17.5 | 17.5 |
| L: Wheelbase | 46.5 | 47.4 | 48.4 | 49.4 |
| Crank Arm Length | 165 mm | 165 mm | 170 mm | 170 mm |
| Stem Length | 45 mm | 45 mm | 55 mm | 55 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 59.1″ – 65″ 150 – 165 cm |
63″ – 68.9″ 160 – 175 cm |
66.9″ – 72.8″ 170 – 185 cm |
70.9″ – 78″ 180 – 198 cm |
