Orbea Terra M21 eTeam Bike
Original price was: $4,930.00.$3,558.00Current price is: $3,558.00.

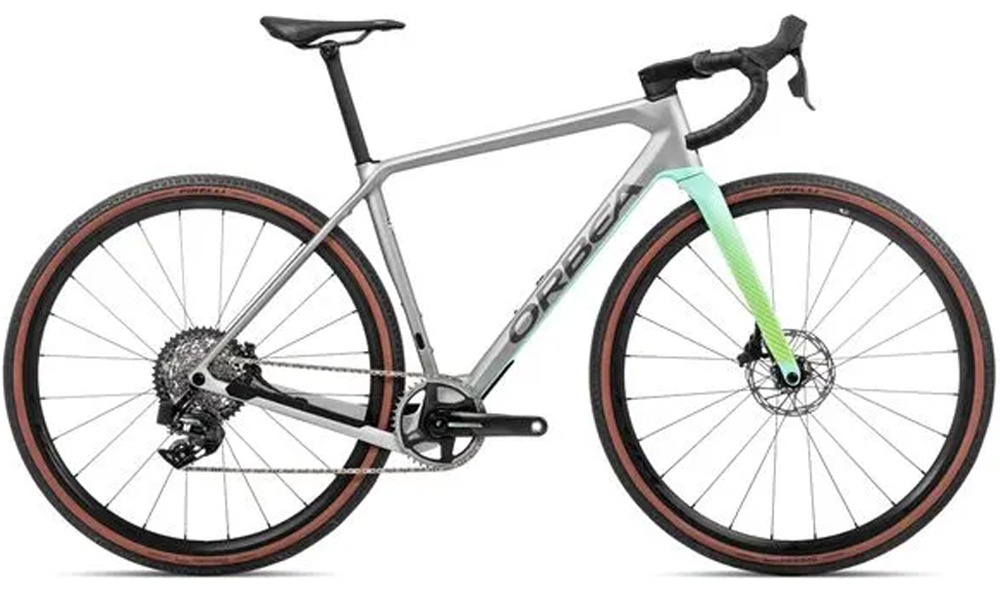

Orbea Terra M21e Team 1x Bike 2023
Gravel From The Ground Up
Whether you want to explore backroads you’ve never ridden before, cruise the fire roads, race on the gravel, you’ll want to get a gravel bike. Gravel bikes are truly versatile bikes that can ride mixed terrain, gravel, dirt trails, and pavement. The Orbea Terra M21e Team 1x Bike is designed from the ground up for gravel. It has a carbon OMR frame and fork that are lightweight and durable. The frame features internal cable routing, thru-axles on the front and rear, powermeter compatibility, Lockr for additional storage inside the frame, and wide tire clearance for up to 700x45mm or 650bx50mm tires.
The M21e Team version of the Orbea Terra comes with a SRAM Force eTap AXS wireless electronic 12-speed drivetrain. The gearing is perfect for all-day adventures, hill climbing, and rough terrain. SRAM Force AXS hydraulic disc brakes provide excellent stopping power so you can descend with confidence. Fulcrum Rapid Red 500 DB wheels are paired with Pirelli Cinturato Gravel H TLR tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the OC Performance XP10 Carbon Seat Post, you’ll have a smoother ride over rough terrain compared to an aluminum seat post.
Features
- Carbon OMR frame and fork with internal cable routing, thru-axles on the front and rear, powermeter compatibility, Lockr for additional storage inside the frame, and wide tire clearance for up to 700x45mm or 650bx50mm tires
- SRAM Force eTap AXS wireless electronic drivetrain performs exceptionally well in demanding conditions
- SRAM Force AXS Hydraulic Disc Brakes provide excellent stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- Carbon seat post helps to reduce vibrations
| Frame | Carbon OMR, Monocoque Construction |
|---|---|
| Fork | OMR Carbon Disc Fork, Full Carbon Steerer |
| Headset | FSA 1-1/2″ Integrated Aluminum Cup |
| Shifters | SRAM Force AXS, 12-Speed |
| Front Derailleur | Oh No, Not Today |
| Rear Derailleur | SRAM Force XPLR AXS |
| Crankset | SRAM Force DUB Wide, 40T |
| Bottom Bracket | – |
| Chain | SRAM Force 12-Speed |
| Cassette | SRAM XG-1271 XPLR, 10-44T, 12-Speed |
| Brakes | SRAM Force AXS |
| Wheelset | FULCRUM Rapid Red 500 DB, 12×142/12×100 Thru-Axles |
| Tires | Pirelli Cinturato Gravel H, 700x40c TLR |
| Handlebar | Easton EC90 AX Carbon, 16° Flare, Di2 Internal Routing |
| Stem | OC Road Performance RP10, -8° |
| Grips/Bar Tape | Orbea Anti-Slippery/Shock Proof |
| Seatpost | OC Performance XP10 Carbon, 27.2mm, 0mm Setback |
| Seatclamp | Bolt-Type |
| Saddle | Prologo Akero AGX STN, Size 155mm |
| Intended Use | Gravel |
Note: Components are subject to change without notice.
| Size | Extra Small | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|---|
| A: Seat Tube Length | 405 | 438 | 471 | 504 | 537 | 570 |
| B: Effective Top Tube | 526 | 539 | 558 | 570 | 590 | 603 |
| C: Stack | 526 | 548 | 570 | 592 | 614 | 636 |
| D: Reach | 375 | 382 | 389 | 395 | 402 | 409 |
| E: BB Height | 278 | 278 | 278 | 280 | 280 | 280 |
| F: BB Drop | 78 | 78 | 78 | 76 | 76 | 76 |
| G: Head Tube Length | 110 | 131 | 152 | 178 | 199 | 220 |
| H: Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| I: Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| J: Standover Height | 713 | 746 | 768 | 798 | 825 | 853 |
| K: Chainstay Length | 420 | 420 | 420 | 420 | 420 | 420 |
| L: Wheelbase | 1009 | 1019 | 1029 | 1044 | 1053 | 1062 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm |
| Stem Length | 70 mm | 80 mm | 90 mm | 90 mm | 100 mm | 110 mm |
| Handlebar Width | 400 mm | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|---|
| Rider Height | 61.1″ – 65.4″ 155 – 166 cm |
65.7″ – 67.7″ 167 – 172 cm |
68.1″ – 70.5″ 173 – 179 cm |
70.9″ – 72.8″ 180 – 185 cm |
73.2″ – 75.2″ 186 – 191 cm |
75.6″ – 81.5″ 192 – 207 cm |
| Size | Extra Small | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|---|
| A: Seat Tube Length | 15.9 | 17.2 | 18.5 | 19.8 | 21.1 | 22.4 |
| B: Effective Top Tube | 20.7 | 21.2 | 22.0 | 22.4 | 23.2 | 23.7 |
| C: Stack | 20.7 | 21.6 | 22.4 | 23.3 | 24.2 | 25.0 |
| D: Reach | 14.8 | 15.0 | 15.3 | 15.6 | 15.8 | 16.1 |
| E: BB Height | 10.9 | 10.9 | 10.9 | 11.0 | 11.0 | 11.0 |
| F: BB Drop | 3.1 | 3.1 | 3.1 | 3.0 | 3.0 | 3.0 |
| G: Head Tube Length | 4.3 | 5.2 | 6.0 | 7.0 | 7.8 | 8.7 |
| H: Head Tube Angle | 70.0 ° | 70.5 ° | 71.0 ° | 71.0 ° | 71.5 ° | 72.0 ° |
| I: Seat Tube Angle | 74.0 ° | 74.0 ° | 73.5 ° | 73.5 ° | 73.0 ° | 73.0 ° |
| J: Standover Height | 28.1 | 29.4 | 30.2 | 31.4 | 32.5 | 33.6 |
| K: Chainstay Length | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| L: Wheelbase | 39.7 | 40.1 | 40.5 | 41.1 | 41.5 | 41.8 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm |
| Stem Length | 70 mm | 80 mm | 90 mm | 90 mm | 100 mm | 110 mm |
| Handlebar Width | 400 mm | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|---|
| Rider Height | 61.1″ – 65.4″ 155 – 166 cm |
65.7″ – 67.7″ 167 – 172 cm |
68.1″ – 70.5″ 173 – 179 cm |
70.9″ – 72.8″ 180 – 185 cm |
73.2″ – 75.2″ 186 – 191 cm |
75.6″ – 81.5″ 192 – 207 cm |
