Orbea Wild H20 20mph E-Bike 2023
Original price was: $5,355.00.$3,375.00Current price is: $3,375.00.
Orbea Wild H20 20mph E-Bike 2023
Beyond Power

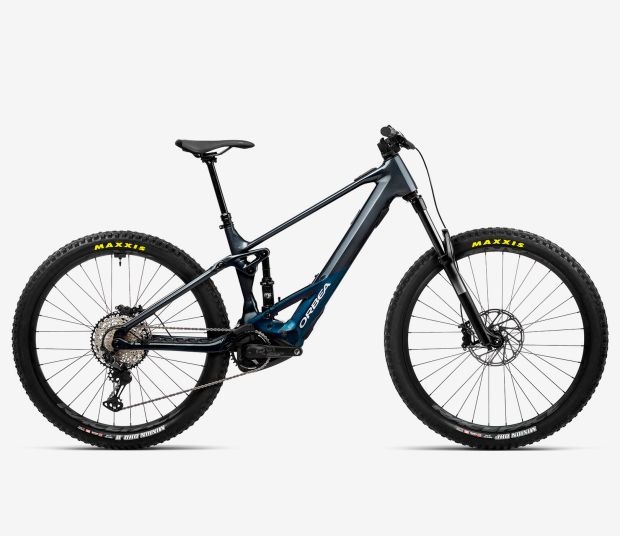

E-bikes are designed to remove many of the barriers that prevent people from riding. Hills become easier, longer distances feel shorter, and rough conditions feel tamer. With an e-MTB, you’ll be able to conquer more terrain. The Orbea Wild H20 20mph E-Bike tames the wildest trails but always feels alive, energetic, and involved rather than the detached, numb ride of many e-bikes. It is an enduro mountain bike that uses 160mm of travel on the front and rear. The frame is made of hydroformed aluminum and features internal cable routing, a secure battery system, integrated frame protection, and a clean cockpit. With the Bosch Performance Line CX Motor, you’ll get up to 20mph of pedal assist so you can conquer any obstacle.
The H20 version of the Orbea Wild comes with a Shimano Deore/XT 12-speed drivetrain. This includes a cassette that has an ultra-wide 10-51T gear range that makes climbing and pedaling through difficult terrain much easier. SRAM DB8 Black Hydraulic Disc Brakes provide excellent stopping power so you can descend with confidence. Race Face AR 30c tubeless-ready wheels are paired with Maxxis Minion tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the OC Mountain Control MC20 Dropper Post, you’ll be able to quickly lift and lower your saddle with the press of a lever.
Features
- Hydroformed Aluminum Frame with internal cable routing, a secure battery system, integrated frame protection, and a clean cockpit
- Shimano Deore/XT 12-speed drivetrain performs well in all conditions
- SRAM DB8 Black Hydraulic Disc Brakes provide excellent stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- OC Mountain Control MC20 Dropper Post quickly lifts and lowers your saddle with the press of a lever
- Bosch Performance Line CX Motor with a Bosch Powertube 750Wh Battery
| Frame | Hydroformed Aluminum, Concentric Boost 12x148mm |
|---|---|
| Fork | RockShox 35 Silver TK, 15x110mm Solo Air, 160mm Travel |
| Rear Shock | Fox Float DPS Performance Trunnion 3-Pos, 205x65mm |
| Headset | FSA 1-1/2″ Integrated Aluminum Cup |
| Shifters | Shimano Deore M6100, 12-Speed |
| Front Derailleur | What? |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus |
| Crankset | E*Thirteen, E*Spec Direct Mount 34T Boost |
| Bottom Bracket | – |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100, 10-51T |
| Brakes | SRAM DB8 Black Hydraulic Disc |
| Wheelset | Race Face AR 30c Tubeless-Ready |
| Tires | Maxxis Minion DHF 29×2.6″ 120 TPI FB 3C MaxxTerra EXO+ TR / Minion DHR II 2.6″ 120 TPI FB 3C MaxxTerra EXO+ TR |
| Handlebar | OC Mountain Control MC30, 20mm Rise, 800mm Wide |
| Stem | OC Mountain Control MC20, 0° |
| Grips/Bar Tape | Orbea |
| Seatpost | OC Mountain Control MC20, 31.6mm, Dropper, S:125, M:150, L:170, XL:200mm |
| Seatclamp | Bolt-Type |
| Saddle | Selle Royal Vivo 145x269mm |
| Intended Use | Trail, All-Mountain, Enduro |
| Motor | Bosch Performance Line CX BDU3741 |
| Battery | Bosch Powertube 750Wh Horizontal BBP3775 |
| Display | Bosch System Controller BCR3100 |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 415 | 415 | 435 | 460 |
| B: Effective Top Tube | 573 | 595 | 622 | 649 |
| C: Stack | 621 | 630 | 639 | 648 |
| D: Reach | 435 | 455 | 480 | 505 |
| E: BB Height | 353 | 353 | 353 | 353 |
| F: BB Drop | 25 | 25 | 25 | 25 |
| G: Head Tube Length | 110 | 120 | 130 | 140 |
| H: Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| I: Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| J: Standover Height | 700 | 700 | 700 | 700 |
| K: Chainstay Length | 448 | 448 | 448 | 448 |
| L: Wheelbase | 1223 | 1247 | 1277 | 1306 |
| Crank Arm Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Stem Length | 40 mm | 40 mm | 50 mm | 50 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 59.1″ – 68.9″ 150 – 175 cm |
63″ – 72.8″ 160 – 185 cm |
66.9″ – 76.8″ 170 – 195 cm |
70.9″ – 80.7″ 180 – 205 cm |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 16.3 | 16.3 | 17.1 | 18.1 |
| B: Effective Top Tube | 22.6 | 23.4 | 24.5 | 25.6 |
| C: Stack | 24.4 | 24.8 | 25.2 | 25.5 |
| D: Reach | 17.1 | 17.9 | 18.9 | 19.9 |
| E: BB Height | 13.9 | 13.9 | 13.9 | 13.9 |
| F: BB Drop | 1.0 | 1.0 | 1.0 | 1.0 |
| G: Head Tube Length | 4.3 | 4.7 | 5.1 | 5.5 |
| H: Head Tube Angle | 64.0 ° | 64.0 ° | 64.0 ° | 64.0 ° |
| I: Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| J: Standover Height | 27.6 | 27.6 | 27.6 | 27.6 |
| K: Chainstay Length | 17.6 | 17.6 | 17.6 | 17.6 |
| L: Wheelbase | 48.1 | 49.1 | 50.3 | 51.4 |
| Crank Arm Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Stem Length | 40 mm | 40 mm | 50 mm | 50 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 59.1″ – 68.9″ 150 – 175 cm |
63″ – 72.8″ 160 – 185 cm |
66.9″ – 76.8″ 170 – 195 cm |
70.9″ – 80.7″ 180 – 205 cm |
