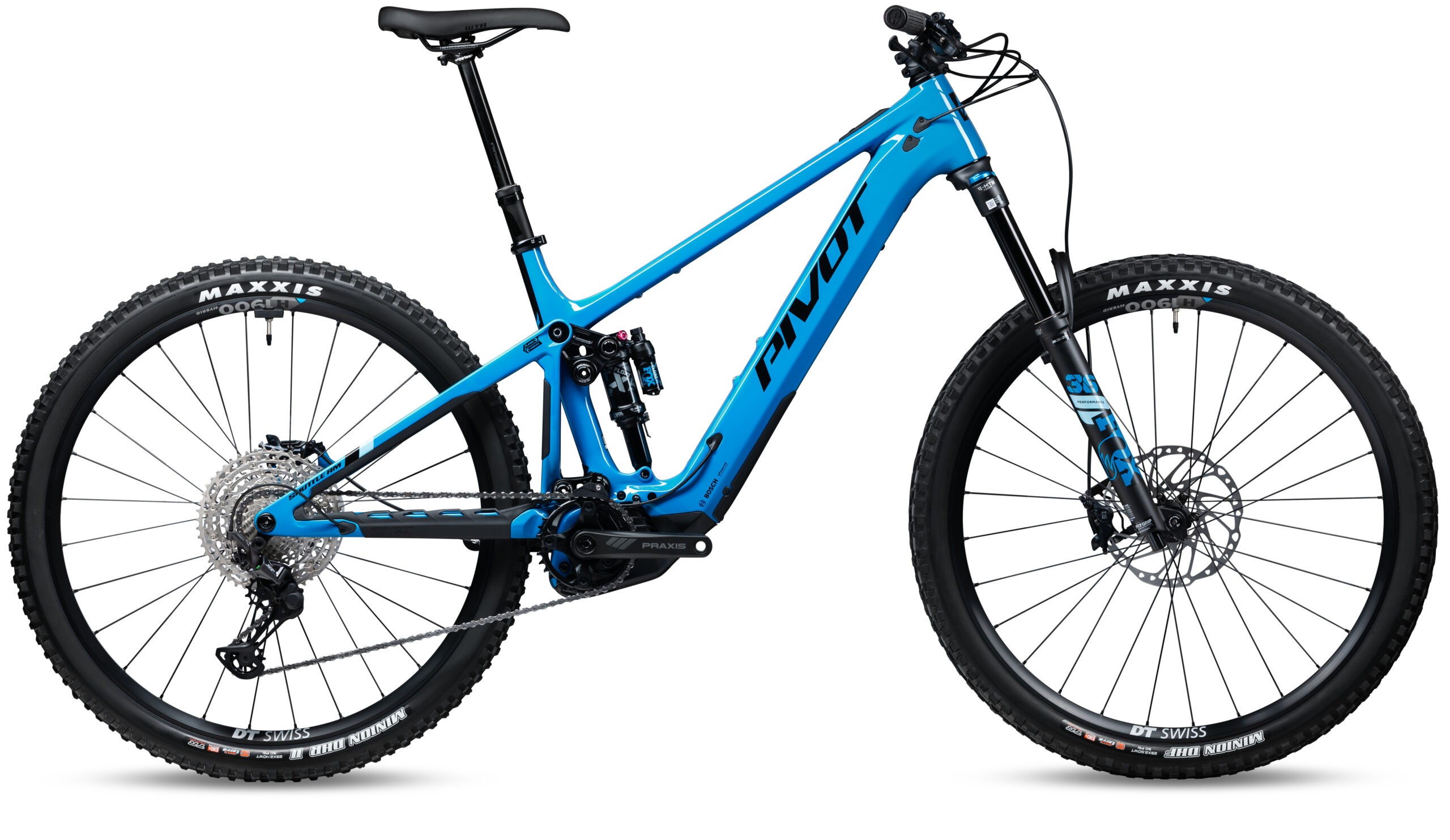

Pivot Shuttle AM Ride SLX/XT E-Bike
Original price was: $7,650.00.$5,525.00Current price is: $5,525.00.
‘
Pivot Shuttle AM Ride SLX/XT E-Bike
Unmatched Performance, Endless Possibilities
E-bikes are the perfect way to get around on the trails. With the extra pedal assistance, you’ll be able to climb back to the top after a long descent so you can do it all over again. The Pivot Shuttle AM Ride SLX/XT E-Bike is powered by the latest Bosch Performance drive system to deliver class-leading performance. The ultra-light Hollow Core carbon fiber frame uses 148mm of travel on the rear and 160mm of travel on the front making this perfect for all-mountain and enduro riding where you need longer travel to conquer difficult terrain. The frame has a flip chip upper link mount so you can adjust the geometry to fit your riding style and is fully “Mulletable” for a 27.5″ rear and 29″ front or it can use 27.5+ wheels if you prefer a wider tire for additional traction. The frame also features full internal cable routing with the Pivot Cable Port System, integrated frame protection, water bottle clearance on all sizes, and an integrated power and mode display. The Ride model comes with a powerfully smooth Bosch Performance Line CX Motor and a long-range 625Wh battery.
The Ride SLX/XT version of the Pivot Shuttle AM comes with a Shimano SLX/XT 12-speed drivetrain. With a 34T chainring up front and a 10-51T cassette on the rear, you’ll have all the gearing you need to climb steep hills or ride longer distances. Shimano SLX M7120 4-piston hydraulic disc brakes provide excellent stopping power so you can descend with confidence. DT Swiss Hybrid H1900 wheels are paired with Maxxis Minion tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the E13 Vario Dropper Post, you’ll be able to quickly lift and lower your saddle with the press of a lever.
Features
- Ultra-light Hollow Core carbon frame with full internal cable routing with the Pivot Cable Port System, integrated frame protection, water bottle clearance on all sizes, and an integrated power and mode display
- Shimano SLX/XT 12-speed drivetrain performs exceptionally well in all riding conditions
- Shimano SLX M7120 4-piston hydraulic disc brakes provide excellent stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- E13 Vario Dropper Post quickly lifts and lowers your saddle with the press of a lever
| Frame | Carbon Fiber |
|---|---|
| Fork | Fox Performance 36 29″, 44mm Offset, GRIP, 160mm Travel |
| Rear Shock | Fox Performance Float X |
| Headset | Pivot Precision Sealed Cartridge |
| Shifters | Shimano SLX M7100 I-Spec EV, 12-Speed |
| Front Derailleur | Ha, Funny |
| Rear Derailleur | Shimano XT M8100 SGS, 12-Speed |
| Crankset | Praxis Alloy eCranks E-MTB, 34T |
| Bottom Bracket | – |
| Chain | Shimano CN-M6100, 12-Speed |
| Cassette | Shimano Deore M6100, 10-51T |
| Brakes | Shimano SLX M7120 4-Piston Hydraulic, Shimano Deore Centerlock 203mm Rotors |
| Wheelset | DT Swiss Hybrid H1900 30mm 29″ Rims, 15×110/12x157mm Hubs |
| Tires | Maxxis Minion DHF 29×2.5″ WT, TR, 3C, EXO+, MaxxTerra / Minion DHRII 29×2.4″ WT, TR, 3C, EXO+, MaxxTerra |
| Handlebar | Phoenix Race Low Rise Aluminum |
| Stem | Phoenix Team Enduro/Trail |
| Grips/Bar Tape | Phoenix Factory Lock-On |
| Seatpost | E13 Vario Dropper Post, S/M/L:150 – 180mm, XL:180-210mm Travel |
| Seatclamp | Bolt-Type |
| Saddle | Phoenix WTB Volt Race, Medium Width |
| Intended Use | All-Mountain, Enduro |
| Motor | Bosch Performance Line CX Motor |
| Battery | 625Wh Battery |
| Display | Integrated Power and Mode Display |
Note: Components are subject to change without notice.
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 378 | 399 | 432 | 470 |
| B: Effective Top Tube | 598 | 630 | 647 | 670 |
| C: Stack | 629 | 638 | 647 | 656 |
| D: Reach | 435 | 465 | 480 | 500 |
| E: BB Height | 350 | 350 | 350 | 350 |
| F: BB Drop | 24 | 24 | 24 | 24 |
| G: Head Tube Length | 110 | 120 | 130 | 140 |
| H: Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| I: Seat Tube Angle | 76.8 ° | 76.8 ° | 76.8 ° | 76.8 ° |
| J: Standover Height | 720 | 720 | 720 | 720 |
| K: Chainstay Length | 444 | 444 | 444 | 444 |
| L: Wheelbase | 1216 | 1250 | 1269 | 1294 |
| Crank Arm Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Stem Length | 45 mm | 45 mm | 45 mm | 45 mm |
| Handlebar Width | 780 mm | 780 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’2″ – 5’7″ | 5’7″ – 5’11” | 5’10” – 6’2″ | 6’1″+ |
| Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| A: Seat Tube Length | 14.9 | 15.7 | 17.0 | 18.5 |
| B: Effective Top Tube | 23.5 | 24.8 | 25.5 | 26.4 |
| C: Stack | 24.8 | 25.1 | 25.5 | 25.8 |
| D: Reach | 17.1 | 18.3 | 18.9 | 19.7 |
| E: BB Height | 13.8 | 13.8 | 13.8 | 13.8 |
| F: BB Drop | 0.9 | 0.9 | 0.9 | 0.9 |
| G: Head Tube Length | 4.3 | 4.7 | 5.1 | 5.5 |
| H: Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| I: Seat Tube Angle | 76.8 ° | 76.8 ° | 76.8 ° | 76.8 ° |
| J: Standover Height | 28.3 | 28.3 | 28.3 | 28.3 |
| K: Chainstay Length | 17.5 | 17.5 | 17.5 | 17.5 |
| L: Wheelbase | 47.9 | 49.2 | 50.0 | 50.9 |
| Crank Arm Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Stem Length | 45 mm | 45 mm | 45 mm | 45 mm |
| Handlebar Width | 780 mm | 780 mm | 800 mm | 800 mm |
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Rider Height | 5’2″ – 5’7″ | 5’7″ – 5’11” | 5’10” – 6’2″ | 6’1″+ |
Love this Product?
CALIFORNIA PROPOSITION 65 WARNING: This product can expose you to chemicals including (Cadmium, Phthalates, Bisphenol, Nickel (Metallic), di(2-ethylhexyl)phthalate “DEHP”), which is known to the State of California to cause cancer and/or cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
| Color |
Blue Neptune |
|---|---|
| Size |
Extra Large ,Large ,Medium ,Small |
Brand
Pivot Cycles
