Pivot Switchblade Pro XT/XTR Bike
Original price was: $6,545.00.$4,726.00Current price is: $4,726.00.
‘

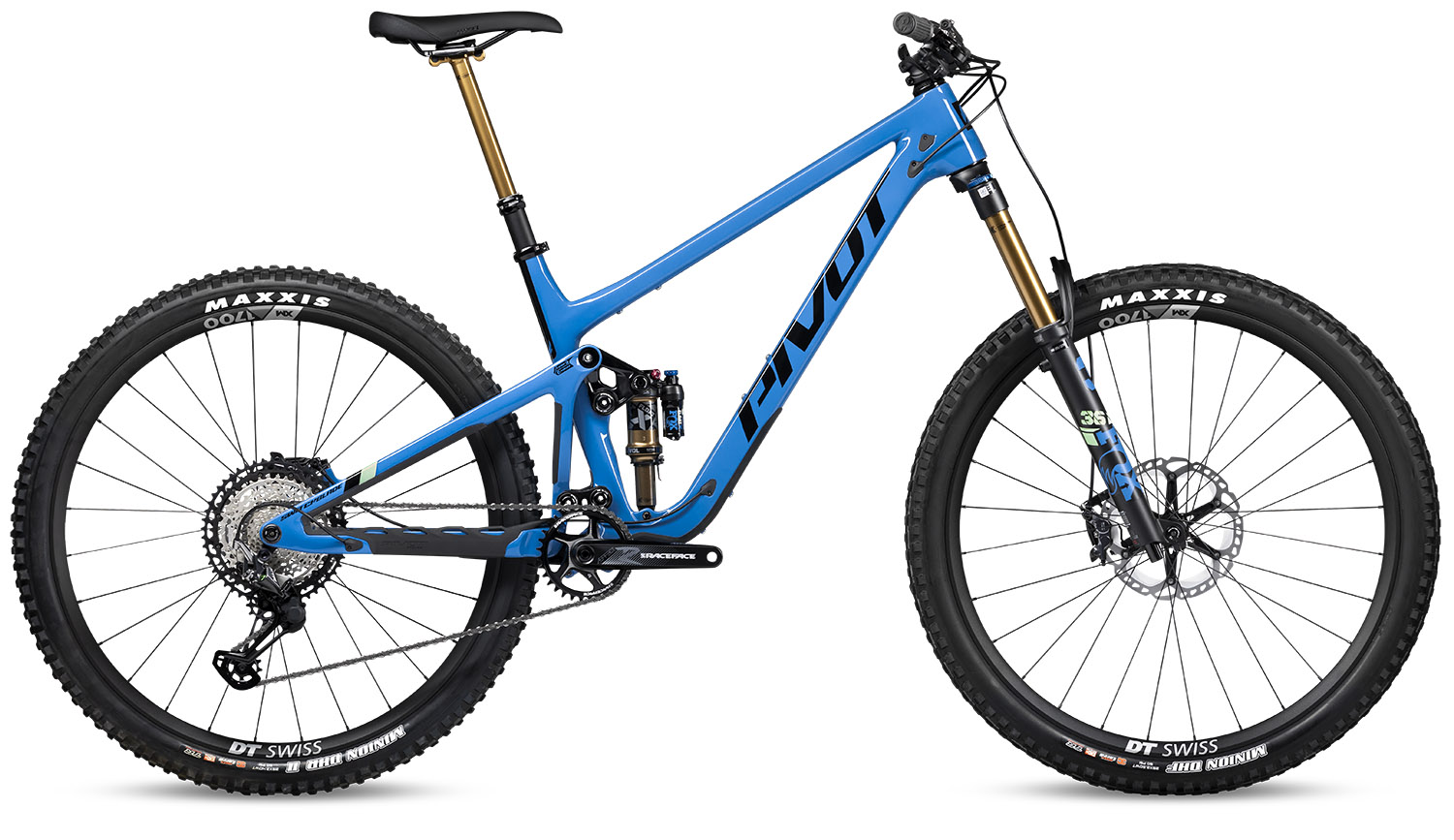

Pivot Switchblade Pro XT/XTR Bike
Slicing Up The Trails
All-mountain and enduro bikes are built for versatility. Whether you’re into descending at high speeds, climbing, tackling technical terrain, or just cruisin’ the trails, you’ll love riding an all-mountain bike. The Pivot Switchblade Pro XT/XTR Bike is a highly versatile ride that is compatible with 29″, 27.5+, and mullet setups so you can run a 27.5″ on the rear with a 29″ on the front. The carbon fiber frame uses 142mm of travel on the rear and 160mm of travel on the front. The frame has a flip chip so you can customize your geometry and has a UDH rear derailleur hanger for peace of mind. The frame also features a large water bottle clearance, a Pivot Cable Port System for easy internal cable routing, clearance for up to 27.5×2.8″ tires, and integrated frame protection.
The Pro XT/XTR version of the Pivot Switchblade comes with a Shimano XT/XTR 12-speed drivetrain. With a 32T chainring up front and an ultra-wide 10-51T cassette on the rear, you’ll be able to climb with ease and pedal through difficult terrain. Shimano XT M8120 4-piston hydraulic disc brakes provide excellent stopping power so you can descend with confidence. DT Swiss XM1700 wheels are paired with Maxxis Minion tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the Fox Transfer Dropper Post, you’ll be able to quickly lift and lower your saddle with the press of a lever.
Features
- Carbon fiber frame with a large water bottle clearance, a Pivot Cable Port System for easy internal cable routing, clearance for up to 27.5×2.8″ tires, and integrated frame protection
- Shimano XT/XTR drivetrain performs extremely well in demanding riding conditions
- Shimano XT M8120 4-piston hydraulic disc brakes provide excellent stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- Fox Transfer Dropper Post quickly lifts and lowers your saddle with the press of a lever
| Frame | Ultra-Light Hollow Core Carbon Fiber |
|---|---|
| Fork | Fox Factory 36 29″, 44mm Offset, GRIP2, 160mm Travel |
| Rear Shock | Fox Factory Float X, 185x55mm |
| Headset | Pivot Precision Sealed Cartridge |
| Shifters | Shimano XT M8100 I-Spec EV 12-Speed |
| Front Derailleur | Not Today |
| Rear Derailleur | Shimano XTR M9100 SGS, 12-Speed |
| Crankset | Race Face Aeffect R, 32T |
| Bottom Bracket | – |
| Chain | Shimano CN-M8100, 12-Speed |
| Cassette | Shimano XT M8100, 10-51T |
| Brakes | Shimano XT M8120 4-Piston, Shimano XT Centerlock 203/180mm Rotors |
| Wheelset | Newmen Evolution SL A.30, 15×110/12x157mm Hubs |
| Tires | Maxxis Minion DHF 29×2.5″ WT TR 3C EXO+ MaxxTerra / Minion DHRII 29×2.4″ WT TR 3C EXO+ MaxxTerra |
| Handlebar | Phoenix Team Low-Rise Carbon |
| Stem | Phoenix Team Enduro/Trail |
| Grips/Bar Tape | Phoenix Factory Lock-On |
| Seatpost | Fox Transfer Factory XS:125, S:150, M:175, L/XL:200mm Travel |
| Seatclamp | Bolt-Type |
| Saddle | Phoenix WTB Pro High Tail Trail (XS/S), Phoenix WTB Volt Pro Medium Width (M/L/XL) |
| Intended Use | Enduro, All-Mountain |
Note: Components are subject to change without notice.
| Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| A: Seat Tube Length | 343 | 368 | 394 | 432 | 470 |
| B: Effective Top Tube | 568 | 605 | 633 | 649 | 662 |
| C: Stack | 611 | 624 | 635 | 639 | 651 |
| D: Reach | 415 | 445 | 470 | 485 | 505 |
| E: BB Height | 350 | 350 | 350 | 350 | 350 |
| F: BB Drop | 23 | 23 | 23 | 23 | 23 |
| G: Head Tube Length | 85 | 100 | 112 | 117 | 130 |
| H: Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° |
| I: Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 77 ° |
| J: Standover Height | 65.6 | 67.2 | 69.4 | 70.6 | 70.7 |
| K: Chainstay Length | 429 | 429 | 429 | 431 | 435 |
| L: Wheelbase | 1156 | 1192 | 1222 | 1240 | 1270 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 35 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Handlebar Width | 760 mm | 780 mm | 780 mm | 780 mm | 800 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| Rider Height | 4’11” – 5’4″ 150 – 163 cm |
5’4″ – 5’9″ 163 – 175 cm |
5’8″ – 5’11” 173 – 180 cm |
5’10” – 6’2″ 178 – 188 cm |
6’2″+ 188+ cm |
| Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| A: Seat Tube Length | 13.5 | 14.5 | 15.5 | 17.0 | 18.5 |
| B: Effective Top Tube | 22.4 | 23.8 | 24.9 | 25.6 | 26.1 |
| C: Stack | 24.1 | 24.6 | 25.0 | 25.2 | 25.6 |
| D: Reach | 16.3 | 17.5 | 18.5 | 19.1 | 19.9 |
| E: BB Height | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
| F: BB Drop | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| G: Head Tube Length | 3.3 | 3.9 | 4.4 | 4.6 | 5.1 |
| H: Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° |
| I: Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 77.0 ° |
| J: Standover Height | 2.6 | 2.6 | 2.7 | 2.8 | 2.8 |
| K: Chainstay Length | 16.9 | 16.9 | 16.9 | 17.0 | 17.1 |
| L: Wheelbase | 45.5 | 46.9 | 48.1 | 48.8 | 50.0 |
| Crank Arm Length | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Stem Length | 35 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Handlebar Width | 760 mm | 780 mm | 780 mm | 780 mm | 800 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| Rider Height | 4’11” – 5’4″ 150 – 163 cm |
5’4″ – 5’9″ 163 – 175 cm |
5’8″ – 5’11” 173 – 180 cm |
5’10” – 6’2″ 178 – 188 cm |
6’2″+ 188+ cm |
