Pivot Trail 429 Ride GX Eagle Transmission Bike
Original price was: $5,780.00.$4,174.00Current price is: $4,174.00.
‘

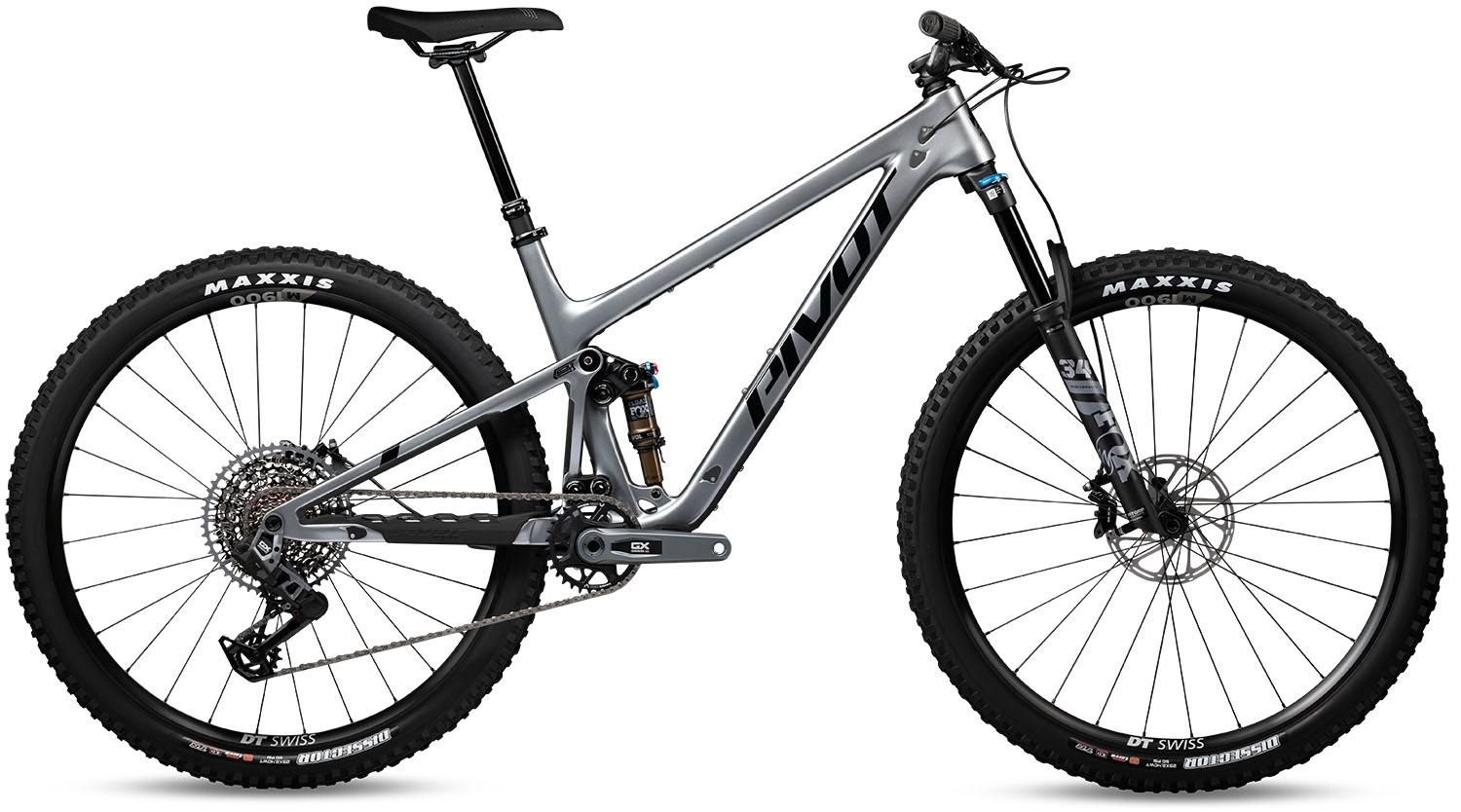

Pivot Trail 429 Ride GX Eagle Transmission Bike
All-Mountain Attitude, Race Bike Reflexes
Trail bikes are great at many things. Whether you want to descend at high speeds, climb steep hills, or just cruise along the fire roads, you’ll love riding a trail bike. The Pivot Trail 429 Ride GX Eagle Transmission Bike has a slackened head angle, increased reach, and a flip-chip to allow fine-tuning of the geometry towards either a rowdy or racy ride. The carbon fiber frame features size-specific ride tuning and uses 130mm of travel on the front and 120mm of travel on the rear. The frame also features full-length internal cable routing, a more progressive DW-Link suspension, clearance for up to 29×2.6″ or 27.5×2.8″ tires, and space for a bottle cage inside the frame.
The Ride GX Eagle Transmission version of the Pivot Trail 429 comes with a SRAM GX Eagle Transmission 12-speed wireless electronic drivetrain. With an ultra-wide 10-52T cassette on the rear, you’ll have no issues climbing or pedaling through demanding terrain. SRAM G2 RE 4-piston hydraulic disc brakes provide superior stopping power so you can descend with confidence. DT Swiss M1900 Rims are paired with Maxxis Dissector Tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the size-specific dropper post, you’ll be able to smoothly lift and lower your saddle without dismounting your bike.
Features
- Lightweight carbon frame with full-length internal cable routing, a more progressive DW-Link suspension, clearance for up to 29×2.6″ or 27.5×2.8″ tires, and space for a bottle cage inside the frame
- SRAM GX Eagle Transmission wireless electronic drivetrain performs exceptionally well in all riding conditions
- SRAM G2 RE 4-piston hydraulic disc brakes provide superior stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats.
- Size-specific dropper post quickly lifts and lowers your saddle with the press of a lever
| Frame | Carbon Fiber |
|---|---|
| Fork | Fox Performance 34 29″, GRIP, 130mm Travel |
| Rear Shock | Fox Factory DPS, 165x45mm |
| Headset | Pivot Precision Sealed Cartridge |
| Shifters | SRAM AXS Pod Controller |
| Front Derailleur | Nope |
| Rear Derailleur | SRAM GX Eagle Transmission, 12-Speed |
| Crankset | SRAM GX Eagle DUB, 32T |
| Bottom Bracket | – |
| Chain | SRAM GX Eagle Transmission Flattop, 12-Speed |
| Cassette | SRAM GX 1275 Eagle Transmission, 10-52T |
| Brakes | Shimano G2 RE 4-Piston, SRAM Centerline 6-Bolt 180mm Rotors |
| Wheelset | DT Swiss M1900 Rims, DT Swiss 370 15×110/12x157mm Hubs |
| Tires | Maxxis Dissector 29×2.4″ WT TR 3C EXO MaxxTerra |
| Handlebar | Phoenix Team Low Rise Aluminum, 780mm |
| Stem | Phoenix Team Enduro/Trail |
| Grips/Bar Tape | Phoenix Factory Lock-On |
| Seatpost | Fox Transfer Perf Elite XS:125/M:175, SDG Tellis S:150, E13 Vario L:180/XL:210mm Travel |
| Seatclamp | Bolt-Type |
| Saddle | Phoenix WTB Volt Race, Medium Width |
| Intended Use | Trail, All-Mountain |
Note: Components are subject to change without notice.
| Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| A: Seat Tube Length | 343 | 368 | 394 | 432 | 470 |
| B: Effective Top Tube | 572 | 595 | 628 | 644 | 667 |
| C: Stack | 584 | 593 | 604 | 609 | 621 |
| D: Reach | 410 | 430 | 460 | 475 | 495 |
| E: BB Height | 347 | 347 | 347 | 347 | 347 |
| F: BB Drop | 27 | 27 | 27 | 27 | 27 |
| G: Head Tube Length | 85 | 95 | 107 | 112 | 125 |
| H: Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| I: Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| J: Standover Height | 636 | 668 | 670 | 682 | 696 |
| K: Chainstay Length | 430 | 430 | 430 | 430 | 430 |
| L: Wheelbase | 1128 | 1152 | 1187 | 1204 | 1229 |
| Crank Arm Length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem Length | 35 mm | 45 mm | 55 mm | 55 mm | 55 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| Rider Height | 4’11” – 5’4″ | 5’4″ – 5’9″ | 5’8″ – 5’11” | 5’10” – 6’2″ | 6’2″ – 6’7″ |
| Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| A: Seat Tube Length | 13.5 | 14.5 | 15.5 | 17.0 | 18.5 |
| B: Effective Top Tube | 22.5 | 23.4 | 24.7 | 25.4 | 26.3 |
| C: Stack | 23.0 | 23.3 | 23.8 | 24.0 | 24.4 |
| D: Reach | 16.1 | 16.9 | 18.1 | 18.7 | 19.5 |
| E: BB Height | 13.7 | 13.7 | 13.7 | 13.7 | 13.7 |
| F: BB Drop | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| G: Head Tube Length | 3.3 | 3.7 | 4.2 | 4.4 | 4.9 |
| H: Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| I: Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| J: Standover Height | 25.0 | 26.3 | 26.4 | 26.9 | 27.4 |
| K: Chainstay Length | 16.9 | 16.9 | 16.9 | 16.9 | 16.9 |
| L: Wheelbase | 44.4 | 45.4 | 46.7 | 47.4 | 48.4 |
| Crank Arm Length | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem Length | 35 mm | 45 mm | 55 mm | 55 mm | 55 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large |
|---|---|---|---|---|---|
| Rider Height | 4’11” – 5’4″ | 5’4″ – 5’9″ | 5’8″ – 5’11” | 5’10” – 6’2″ | 6’2″ – 6’7″ |
