Santa Cruz Tallboy 5 C S Bike
Original price was: $4,675.00.$3,375.00Current price is: $3,375.00.
‘

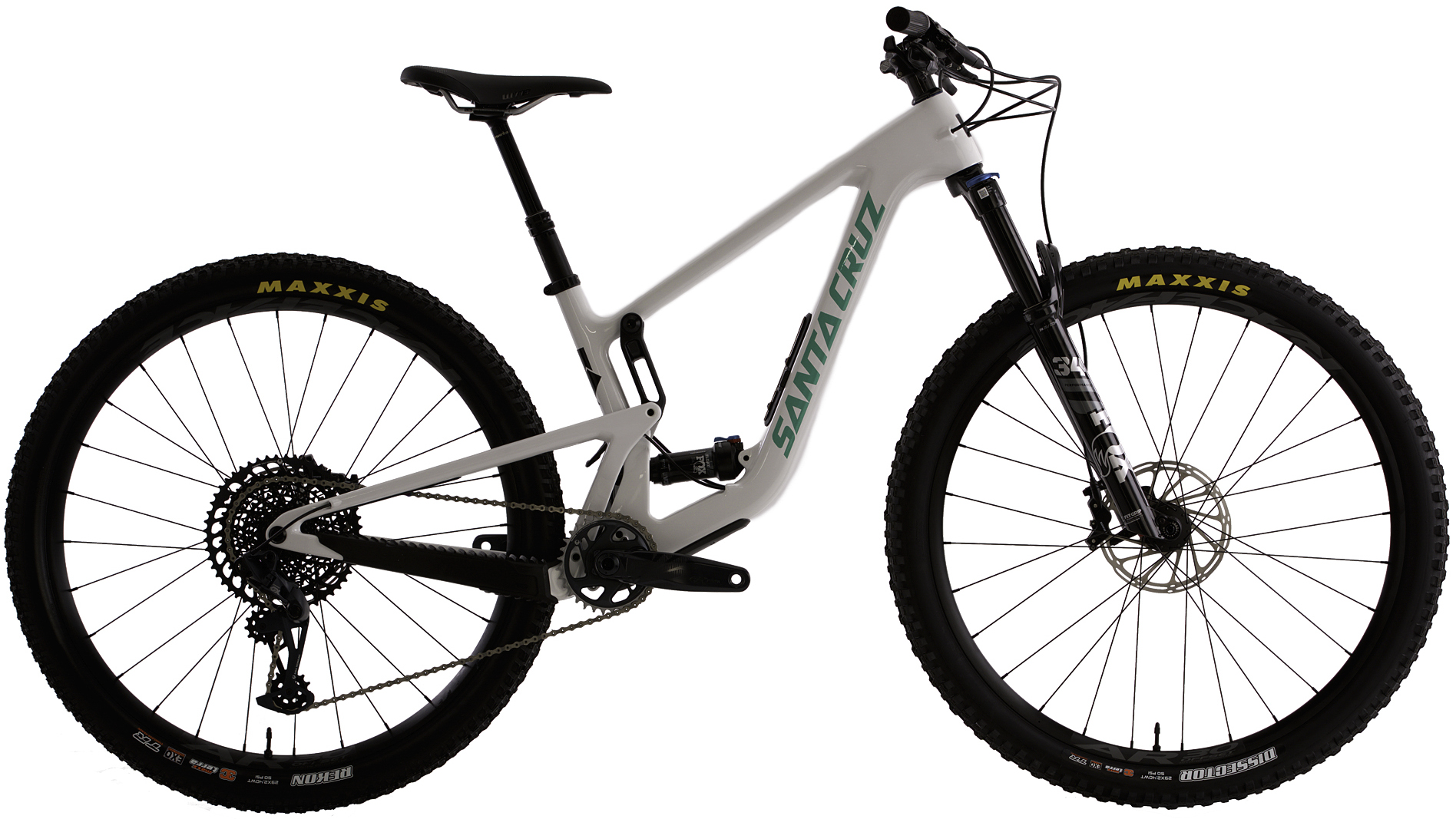

Santa Cruz Tallboy 5 C S Bike
The Downhiller’s XC Bike
If you’re looking for something that is a little more aggressive than a cross-country bike but not quite an enduro bike, then you’ll want a trail bike. These bikes have longer suspension travel than XC bikes making them perfect for climbing, fast descents, and technical terrain. The Santa Cruz Tallboy 5 C S Bike has earned a loyal following amongst those who seek a go-to bike that will hold up to the relentless hammering of “power hour” hot laps or long days in the saddle harvesting the best trails. It starts with a Carbon C frame that uses 130mm of travel on the front and 120mm of travel on the rear. With proportional geometry and frame stiffness tunes, you’ll have a fully dialed ride at every size. The frame features internal cable routing, integrated frame protection, a Glovebox in the downtube for extra storage, and legendary VPP suspension.
The S version of the Santa Cruz Tallboy 5 comes with a SRAM GX Eagle 12-speed drivetrain. This includes a cassette that has a hill-crushing 10-50T gear range that makes climbing and pedaling through rough terrain much easier. SRAM G2 R hydraulic disc brakes provide exceptional stopping power so you can descend under control. RaceFace AR Offset 30 29″ wheels are paired with Maxxis Dissector and Rekon tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the SDG Tellis Dropper Post, you’ll be able to quickly lift and lower your saddle with the press of a lever.
Features
- Carbon C Frame with internal cable routing, integrated frame protection, a Glovebox in the downtube for extra storage, and legendary VPP suspension
- SRAM GX Eagle 12-speed drivetrain performs well in various riding conditons
- SRAM G2 R hydraulic disc brakes provide excellent stopping power
- Tubeless-ready rims and tires for a smoother ride, better traction, and fewer flats
- SDG Tellis Dropper Post quickly lifts and lowers your saddle with the press of a lever
| Frame | Carbon C |
|---|---|
| Fork | Fox 34 Float Performance, 130mm Travel |
| Rear Shock | Fox Float Performance DPS, 190x45mm |
| Headset | Cane Creek 40 IS Integrated Headset |
| Shifters | SRAM GX Eagle, 12-Speed |
| Front Derailleur | Nope |
| Rear Derailleur | SRAM GX Eagle, 12-Speed |
| Crankset | SRAM GX Eagle 148 DUB, 32T |
| Bottom Bracket | SRAM DUB 68/73mm Threaded BB |
| Chain | SRAM GX Eagle, 12-Speed |
| Cassette | SRAM XG1275 Eagle, 10-50T |
| Brakes | SRAM G2 R, Avid Centerline 180mm Rotors |
| Wheelset | RaceFace AR Offset 30 29″ Rims, DT Swiss 370 Boost Hubs |
| Tires | Maxxis Dissector 29×2.4″ WT, 3C MaxxTerra EXO TR / Rekon 29×2.4″ WT 3C MaxxTerra EXO TR |
| Handlebar | Burgtec RideWide Alloy Bar, 800mm |
| Stem | Burtec Enduro MK3, 42mm |
| Grips/Bar Tape | Santa Cruz Bicycles House Grips |
| Seatpost | SDG Tellis Dropper Post, 31.6mm |
| Seatclamp | Bolt-Type |
| Saddle | WTB Silverado Medium, CroMo |
| Intended Use | Trail, XC |
| Approximate Weight | 30.04 lbs / 13.62 kg |
Note: Components are subject to change without notice.
| Size | Extra Small | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|---|
| A: Seat Tube Length | 370 | 380 | 405 | 430 | 460 | 500 |
| B: Effective Top Tube | 555 | 579 | 602 | 622 | 644 | 671 |
| C: Stack | 601 | 610 | 619 | 628 | 646 | 656 |
| D: Reach | 405 | 430 | 455 | 475 | 495 | 520 |
| E: BB Height | 335 | 335 | 335 | 335 | 335 | 335 |
| F: BB Drop | 38 | 38 | 38 | 38 | 38 | 38 |
| G: Head Tube Length | 95 | 105 | 115 | 125 | 145 | 155 |
| H: Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° |
| I: Seat Tube Angle | 76 ° | 76.3 ° | 76.7 ° | 76.8 ° | 77 ° | 77.1 ° |
| J: Standover Height | 680 | 693 | 696 | 698 | 698 | 701 |
| K: Chainstay Length | 430 | 430 | 433 | 437 | 439 | 443 |
| L: Wheelbase | 1138 | 1167 | 1199 | 1227 | 1257 | 1290 |
| Crank Arm Length | – | – | – | – | – | – |
| Stem Length | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|---|
| Rider Height | 4’8″ – 5’1″ 142 – 155 cm |
5’1″ – 5’5″ 155 – 165 cm |
5’5″ – 5’9″ 165 – 175 cm |
5’9″ – 6’1″ 175 – 185 cm |
6’1″ – 6’4″ 185 – 193 cm |
6’4″ – 6’7″ 193 – 201 cm |
| Size | Extra Small | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|---|
| A: Seat Tube Length | 14.6 | 15.0 | 15.9 | 16.9 | 18.1 | 19.7 |
| B: Effective Top Tube | 21.9 | 22.8 | 23.7 | 24.5 | 25.4 | 26.4 |
| C: Stack | 23.7 | 24.0 | 24.4 | 24.7 | 25.4 | 25.8 |
| D: Reach | 15.9 | 16.9 | 17.9 | 18.7 | 19.5 | 20.5 |
| E: BB Height | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
| F: BB Drop | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| G: Head Tube Length | 3.7 | 4.1 | 4.5 | 4.9 | 5.7 | 6.1 |
| H: Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° |
| I: Seat Tube Angle | 76.0 ° | 76.3 ° | 76.7 ° | 76.8 ° | 77.0 ° | 77.1 ° |
| J: Standover Height | 26.8 | 27.3 | 27.4 | 27.5 | 27.5 | 27.6 |
| K: Chainstay Length | 16.9 | 16.9 | 17.0 | 17.2 | 17.3 | 17.4 |
| L: Wheelbase | 44.8 | 45.9 | 47.2 | 48.3 | 49.5 | 50.8 |
| Crank Arm Length | – | – | – | – | – | – |
| Stem Length | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Frame Size | Extra Small | Small | Medium | Large | Extra Large | XX-Large |
|---|---|---|---|---|---|---|
| Rider Height | 4’8″ – 5’1″ 142 – 155 cm |
5’1″ – 5’5″ 155 – 165 cm |
5’5″ – 5’9″ 165 – 175 cm |
5’9″ – 6’1″ 175 – 185 cm |
6’1″ – 6’4″ 185 – 193 cm |
6’4″ – 6’7″ 193 – 201 cm |
