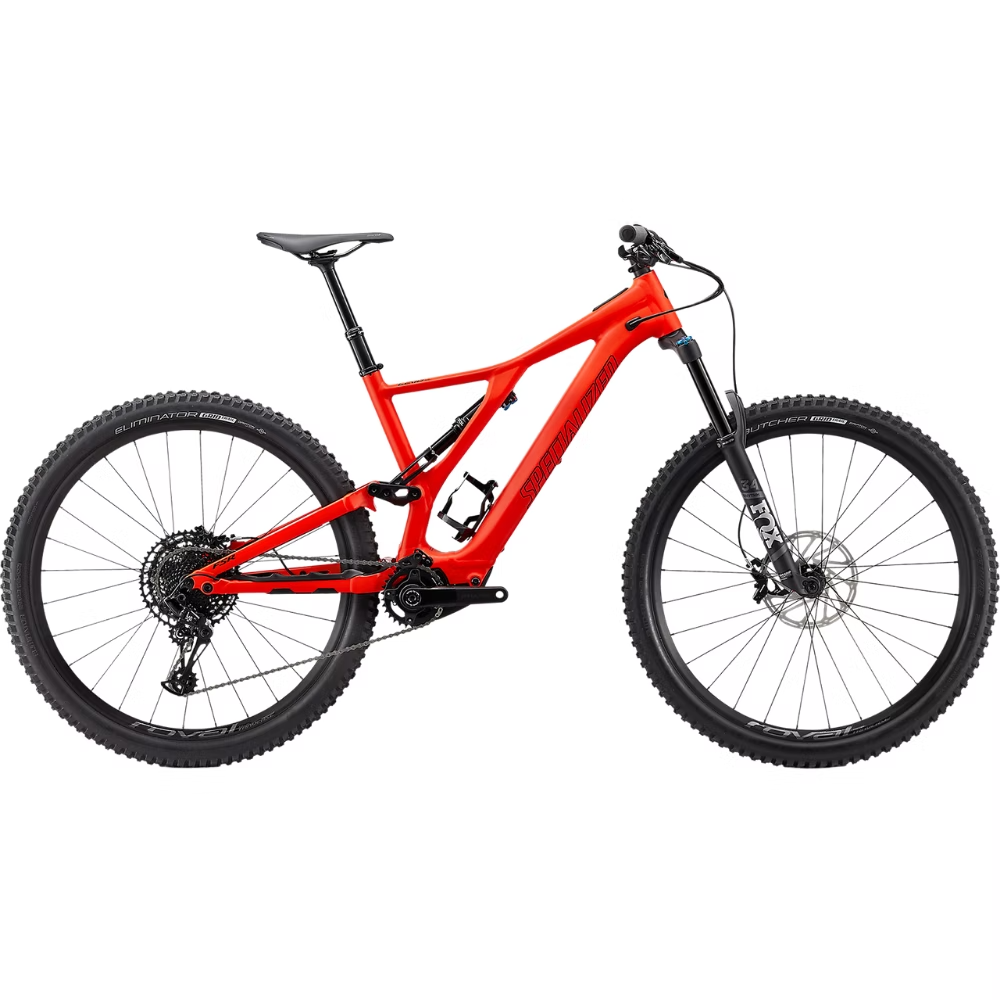

Specialized Turbo Levo SL Comp Rocket Red 2021

ELECTRIC BICYCLE (E-BIKE)

**Charging System:**
Custom 48V charger with SL system charger plug

**Motor:**
Specialized SL 1.1 – Custom lightweight motor

**User Interface/Remote:**
Specialized TCU with 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth connectivity, and Handlebar remote

**Battery:**
Specialized SL1-320 – Fully integrated, 320Wh capacity

**Wiring Harness:**
Custom Specialized wiring harness with charge port

**WHEELS:**

**Rear Hub:**
Specialized – Sealed cartridge bearings, 12x148mm thru-axle, 32h

**Rims:**
Specialized 29 – Hookless alloy, 30mm inner width, tubeless ready

**Inner Tubes:**
Standard, Presta valve

**Front Hub:**
Specialized – Sealed cartridge bearings, 15x110mm spacing, 28h

**Spokes:**
DT Swiss Industry

**Front Tire:**
Butcher, GRID TRAIL casing, GRIPTON compound, 29×2.3″

**Rear Tire:**
Eliminator, GRID TRAIL casing, GRIPTON compound, 2Bliss Ready, 29×2.3″

**ACCESSORIES:**

**Pedals:**
SWAT

**DRIVETRAIN:**

**Cassette:**
SRAM NX Eagle PG-1230, 12-speed, 11-50t

**Chainrings:**
SRAM X-Sync Eagle, 94 BCD, 30T

**Rear Derailleur:**
SRAM NX Eagle, 12-speed

**Chain:**
SRAM NX Eagle, 12-speed

**Shift Levers:**
SRAM NX Eagle, trigger, 12-speed

**Crankset:**
Praxis, forged M30, custom offset

**COCKPIT:**

**Stem:**
Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise

**SeatPost:**
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, XS:100 mm, S: 125mm, M/L: 150mm, XL:170mm of travel

**Tape:**
Specialized Trail Grips

**Saddle:**
Bridge Comp, Hollow Cr-mo rails, 155/143mm

**Handlebars:**
Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S 720mm, M-XL 750mm

**BRAKES:**

**Front Brake:**
SRAM Guide R, hydraulic disc, 200mm

**Rear Brake:**
SRAM Guide R, hydraulic disc, 180mm

**FRAMESET:**

**Seat Binder:**
Specialized bolt-type, alloy, 38.6mm

**Fork:**
FOX RHYTHM 34 FLOAT 29, GRIP damper, 51mm offset, 2-position sweep adjust, 15x110mm, tapered alloy steerer, 150mm of travel

**Frame:**
Specialized M5 Premium Aluminum, 29 Trail Geometry, integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel

**Suspension:**

**Rear Shock:**
FOX FLOAT DPS Performance, 3-position adjustment, 52.5x210mm, Rx Trail Tune
