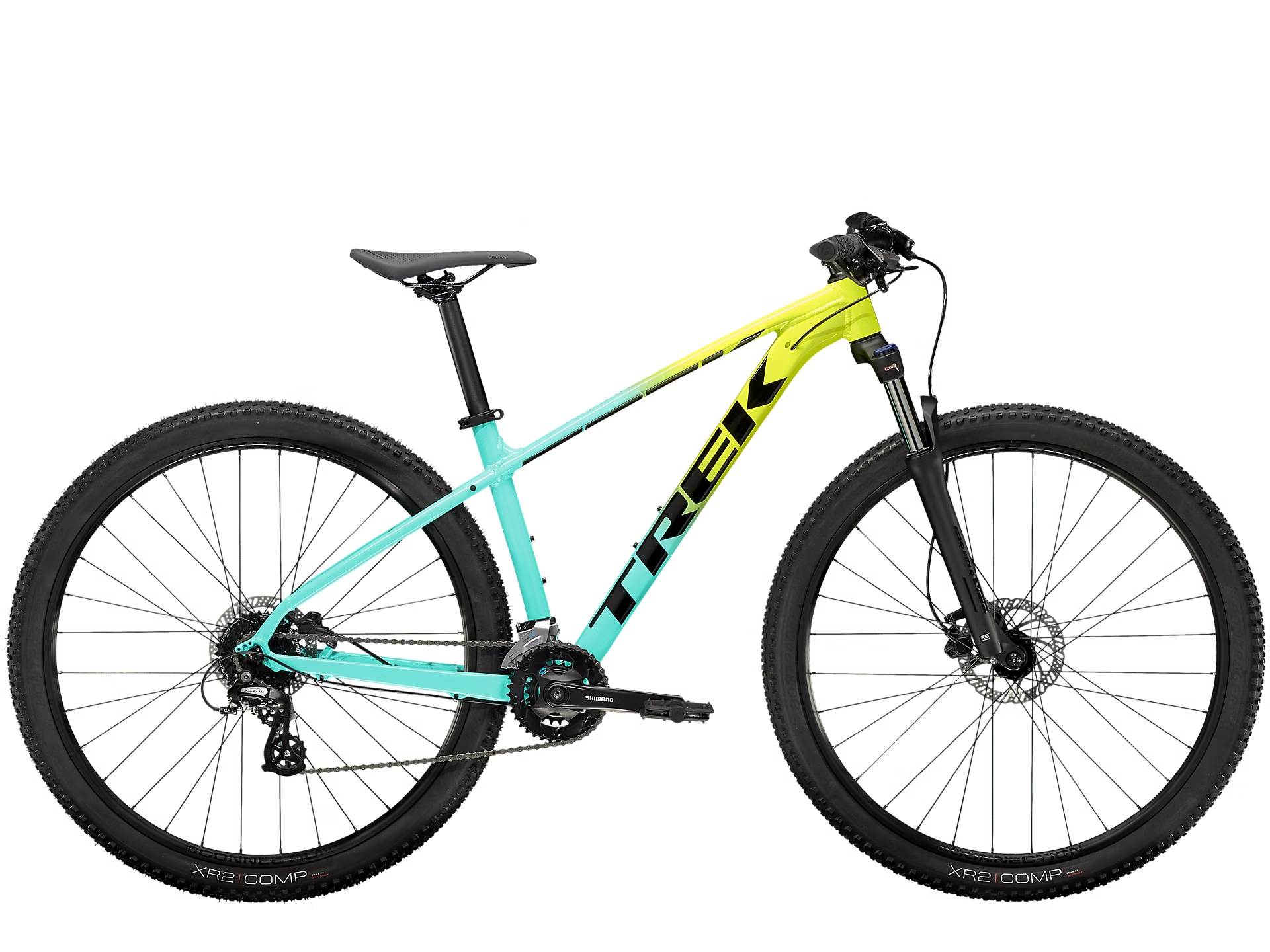

Trek Marlin 5 Lime 2022

Frameset:
Frame: Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135×5 mm QR
“*Fork: Size: XXS
SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26″” wheel”
“: Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″” wheel, 100 mm QR, 80 mm travel”
“: Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5″” wheel, 100 mm QR, 100 mm travel”
“: Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29″” wheel, 100 mm QR, 100 mm travel”
Wheels:
Hub front: Formula DC-20, alloy, 6-bolt, 5×100 mm QR
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR
“*Rim: Size: XXS
Bontrager Connection, alloy, double-wall, 32-hole, 20 mm width, Schrader valve”
“: Size: XS , S , M , ML , L , XL , XXL
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve”
Spokes: 14 g stainless steel
“*Tyre: Size: XXS
Bontrager XR2 Comp, wire bead, 30 tpi, 26×2.20″””
“: Size: XS , S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5×2.20″””
“: Size: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29×2.20″””
Drivetrain:
Shifter: Shimano Altus M315, 8-speed
Front derailleur: Shimano Altus M315, 34.9 mm clamp, top swing, dual pull
Rear derailleur: Shimano Altus M310
“*Crank: Size: XXS
Prowheel TM-CY10, 36/22, 160 mm length”
“: Size: XS , S , M
Shimano M315, 36/22, 170 mm length”
“: Size: ML , L , XL , XXL
Shimano M315, 36/22, 175 mm length”
Bottom bracket: VP BC73, 73 mm, threaded cartridge
Cassette: Shimano 8-speed, 12-32T
Chain: KMC Z8.3, 8 speed
Pedal: VP-536 nylon platform
Components:
Saddle: Bontrager Arvada, steel rails, 138 mm width
“*Seatpost: Size: XXS
Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length”
“: Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length”
“: Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length”
“*Handlebar: Size: XXS , XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width”
“: Size: S , M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width”
Grips: Bontrager XR Endurance Comp
“*Stem: Size: XXS
Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 35 mm length”
“: Size: XS
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length”
“: Size: S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length”
“: Size: M
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length”
“: Size: ML , L
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length”
“: Size: XL , XXL
Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length”
Head set: Semi-integrated, 1-1/8″
“*Brake: Size: XXS , XS , S
Tektro HD-M276 hydraulic disc, short-reach lever”
“: Size: M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc”
Weight:
Weight: M – 30.80 lb / 13.9725 kg
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
