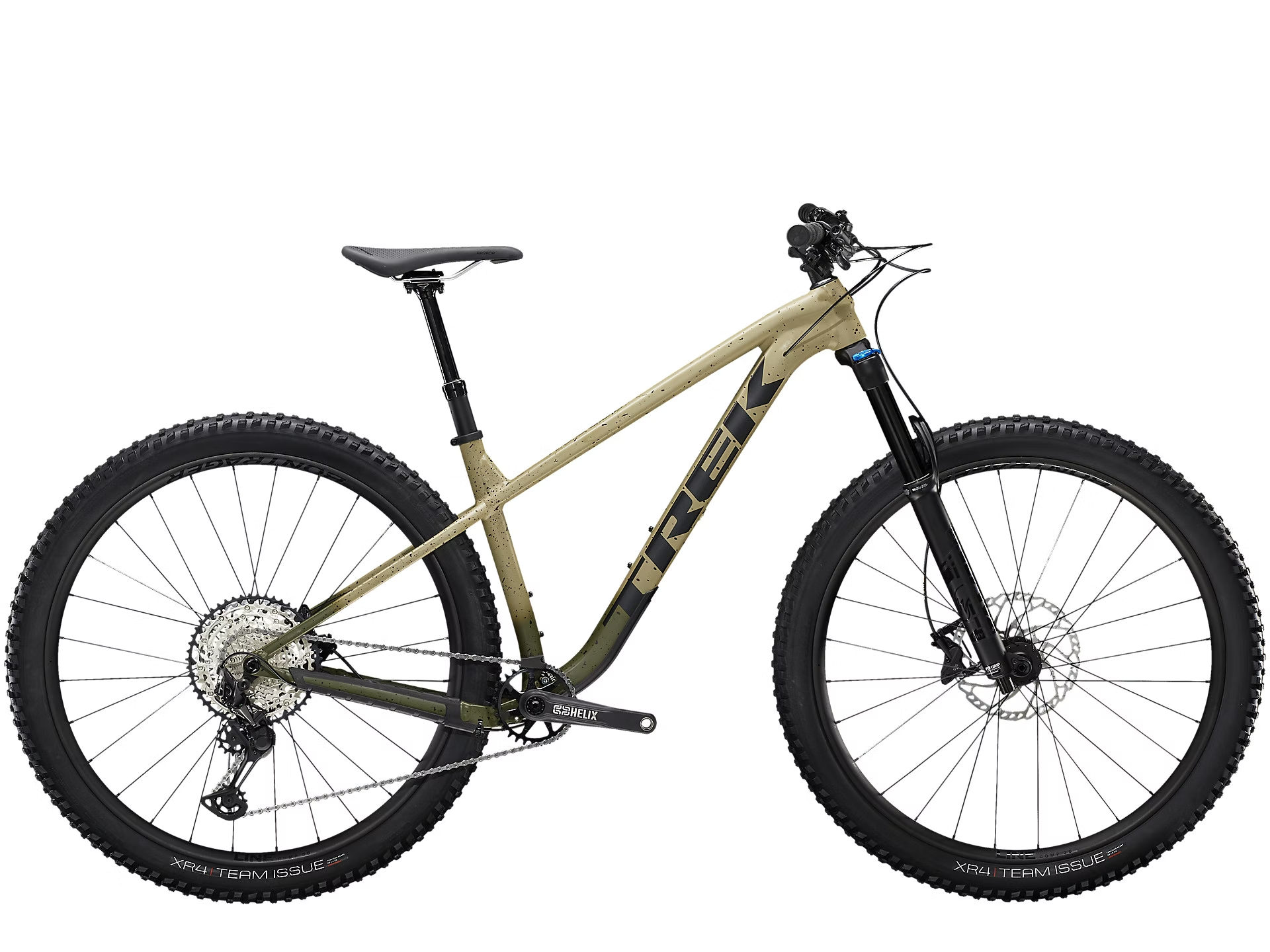

Trek Roscoe 9 Matte Quicksand to Olive Fade 2023

Frameset:
Frame: Alpha Gold Aluminium, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148
Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
Max compatible fork travel: 150mm
Wheels:
Hub front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear: Bontrager Switch thru-axle, removable lever
Rim: Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
Spokes: 14 g stainless steel
“*Tyre: Size: XS
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5×2.60″””
“: Size: S, M, M/L, L, XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29×2.60″””
“*Tyre part: Size: XS, S, M, M/L, L, XL
Bontrager TLR sealant, 180 ml/6 oz”
“: Size: XS, S, M, M/L, L, XL
Bontrager TLR valve, 50 mm”
Rim strip: Bontrager TLR
Max tyre size: Frame: 29×2.60″ (XS – 27.5×2.60″) Fork: see manufacturer
Drivetrain:
Shifter: Shimano SLX M7100, 12-speed
Rear derailleur: Shimano XT M8100, long cage, 51T max cog
“*Crank: Size: XS, S, M, M/L, L
E*thirteen Helix, 30T steel ring, 73 mm spindle length, 52 mm chainline, 170 mm length”
“: Size: XL
E*thirteen Helix, 30T steel ring, 73 mm spindle length, 52 mm chainline, 175 mm length”
Bottom bracket: Shimano SM-BB52, 73 mm, threaded external bearing
Cassette: Shimano SLX M7100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Max. chainring size: 52mm chainline: 32T, 55mm chainline: 34T
Components:
Saddle: Bontrager Arvada, hollow chromoly rails, 138 mm width
“*Seatpost: Size: XS, S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length”
“: Size: M
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length”
“: Size: M/L, L, XL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 445 mm length”
“*Handlebar: Size: XS, S
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width”
“: Size: M, M/L, L, XL
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width”
“*Stem: Size: XS, S
Bontrager Elite, 35 mm, 0-degree, 35 mm length”
“: Size: M, M/L, L, XL
Bontrager Elite, 35 mm, 0-degree, 45 mm length”
Head set: FSA IS-2, 1-1/8″ top, 1.5″ bottom
“*Brake: Size: XS, S, M, M/L, L, XL
Shimano M6120 4-piston hydraulic disc”
“: Size: XS, S, M, M/L, L, XL
Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper”
“*Brake rotor: Size: XS, S, M, M/L, L, XL
Shimano RT66, 6-bolt, 180mm”
“: Size: XS, S, M, M/L, L, XL
Shimano RT66, 6-bolt, 203 mm”
Weight:
Weight: M – 28.95 lbs / 13.13 kg (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
